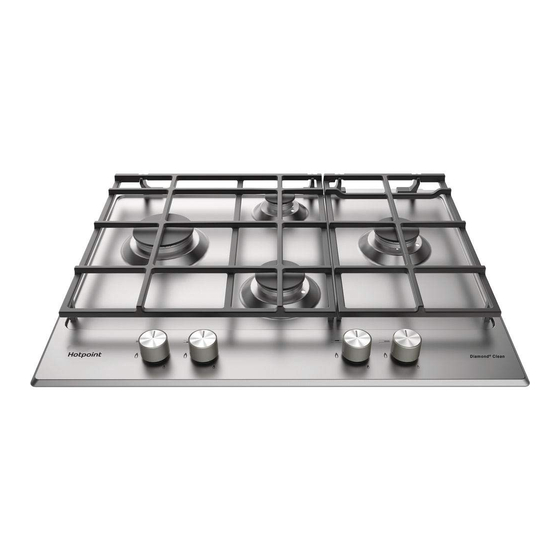

PKL 641 EX/H
PKLL 641 D2/IX/H
PKLL 741 T/D2/IX/H
English
Operating Instructions
HOB
Contents
Operating Instructions,1
Warnings,2
Description of the appliance,3
Installation,4
Start-up and use,9
Precautions and tips,10
Maintenance and care,10
Troubleshooting,11
Product Guarantee and Repair Information,12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hotpoint PKL 641 EX
Summary of Contents for Hotpoint PKL 641 EX
- Page 1 PKL 641 EX/H PKLL 641 D2/IX/H PKLL 741 T/D2/IX/H English Operating Instructions Contents Operating Instructions,1 Warnings,2 Description of the appliance,3 Installation,4 Start-up and use,9 Precautions and tips,10 Maintenance and care,10 Troubleshooting,11 Product Guarantee and Repair Information,12...
- Page 2 Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been...
- Page 3 Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS 3. Control Knobs for GAS BURNERS 4. Ignition for GAS BURNERS 5. SAFETY DEVICES • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
- Page 4 Installation Fitting the appliance The following precautions must be taken when installing the hob: • Kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 200 mm from the edge of the hob. carefully.
- Page 5 ! The wires in the mains lead are coloured in accordance with the following • Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of code: 20 mm from the lower part of the hob.
- Page 6 4. Once this procedure is finished, replace the old rating sticker with one 4. Some appliances have a safety device (thermocouple) fitted. If the device indicating the new type of gas used. Sticker are available from any of our fails to work when the burners are set to the low flame setting, increase Service Centres.
- Page 7 Minimum (mbar) Maximum (mbar) (1) For single-control DRDA (DCDR) burner only At 15°C and 1013,25 mbar - dry gas Propane P.C.S. = 50.37 MJ/Kg Butane P.C.S. = 49.47 MJ/Kg Natural P.C.S. = 37.78 MJ/m³ PKL 641 EX/H PKLL 641 D2/IX/H...
- Page 8 Burner and nozzle specifications (for 75 cm versions only) Table 1 Liquid Gas Natural Gas Diameter Thermal Thermal By-pass Nozzle Flow* (g/h) Thermal Nozzle Flow* power power 1/100 1/100 power 1/100 kW (p.c.s.*) kW (p.c.s.*) kW (p.c.s.*) (mm) Reduced Nominal (mm) (mm) Nominal...
- Page 9 Start-up and use To activate any one of the two rings, press the corresponding knob and turn it anti-clockwise to the maximum power setting . ! The position of the corresponding gas burner is shown on every knob. In order to use the double-flame burner to its full potential, avoid simultaneously setting the inner ring to minimum power and the outer Gas cooker hobs are equipped with discrete power adjustment that allows ring to maximum power.
- Page 10 Disposal The more variable aspect in terms of pan stability can often be the pan • When disposing of packaging material: observe local legislation so that itself, (or the positioning of that pan the packaging may be reused. during use). Well balanced pans, •...
- Page 11 ! To avoid damaging the electric ignition device, do not use it when the The cookware is unstable. burners are not in their housing. Check to make sure that: • The bottom of the cookware is perfectly flat. ! It is not necessary to remove the pan supports in order to clean the hob •...
- Page 12 12 Months Parts and Labour Guarantee As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down Your appliance has benefit of our manufacturer’s guarantee, which covers customer costs and minimise material wastage.
