PACKAGE CONTENTS
Wall Wash Light
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
Mounting Screw
X2
DD
Wire Connector
X3

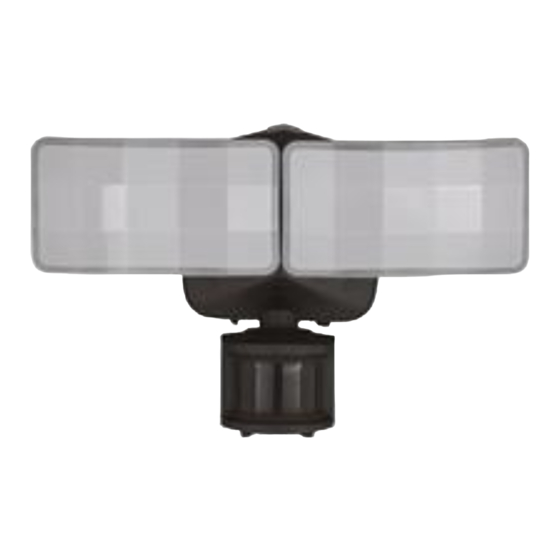

2-LIGHT OUTDOOR SECURITY LIGHT
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
BB
Mounting Strap Unit
X1
EE
A
C
Gasket
X1
SKU Number: 356-9430
Model Number: E9200-2BZ
E9200-1WH
B
CC
Ring and Screw
X1
FF
Decorative Cover
X1
356-9431
Page 1 of 8
201029
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Patriot Lighting E9200-2BZ
Summary of Contents for Patriot Lighting E9200-2BZ
- Page 1 SKU Number: 356-9430 356-9431 2-LIGHT OUTDOOR SECURITY LIGHT Model Number: E9200-2BZ E9200-1WH Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-800-887-6326 Monday – Friday 9:00 a.m. – 5:00 p.m. CST PACKAGE CONTENTS Wall Wash Light HARDWARE CONTENTS Note: Hardware not shown actual size.
- Page 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING ● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker). ●...
- Page 3 ASSEMBLY INSTRUCTIONS (continued) For eave mounted only: Swing the sensor head towards the mounting bracket. Rotate the sensor head clockwise 180˚ so the controls face down. Backplate Controls Controls Controls Installation Steps Turn off the power at fuse or circuit box. 2.
- Page 4 ASSEMBLY INSTRUCTIONS (continued) Fig. 2 Fig. 3 Sensor Adjustment Lower For Short Coverage Adjusting the Light Head (B): 1. Adjust the light head up or down, left or right for desired area. Keep the light heads at least 1˝ (25mm) away from the sensor.(See Fig.
- Page 5 ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued) FUNCTION AND OPERATION (continued) 2. AUTO MODE (nighttime operation only) Fig.6 ● In "AUTO" mode, rotate Time Delay knob to the desired time setting (30s/1min/3min). At dusk, the light turns on to pre-selected low-level brightness and CCT color.
- Page 6 ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued) FUNCTION AND OPERATION (continued) Customization Options: Shut-off Delay ● The shut-off delay is the length of time the light will stay at brightness after motion is detected. ● You can set the shut-off delay by rotating the Time knob arrow so it points to the desired time setting 30s/1min/3min ) (See Fig.5).
- Page 7 CARE AND MAINTENANCE ● To prolong the original appearance, clean the light fixture with clear water and a soft, damp cloth only. ● Do not use paints, solvents, or other chemicals on this light fixture. They could cause a premature deterioration of the finish.
- Page 8 If unable to fix any of the above issues, please consult a certified electrician. FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting fixture with the original sales receipt back to your nearest MENARDS retail store.
