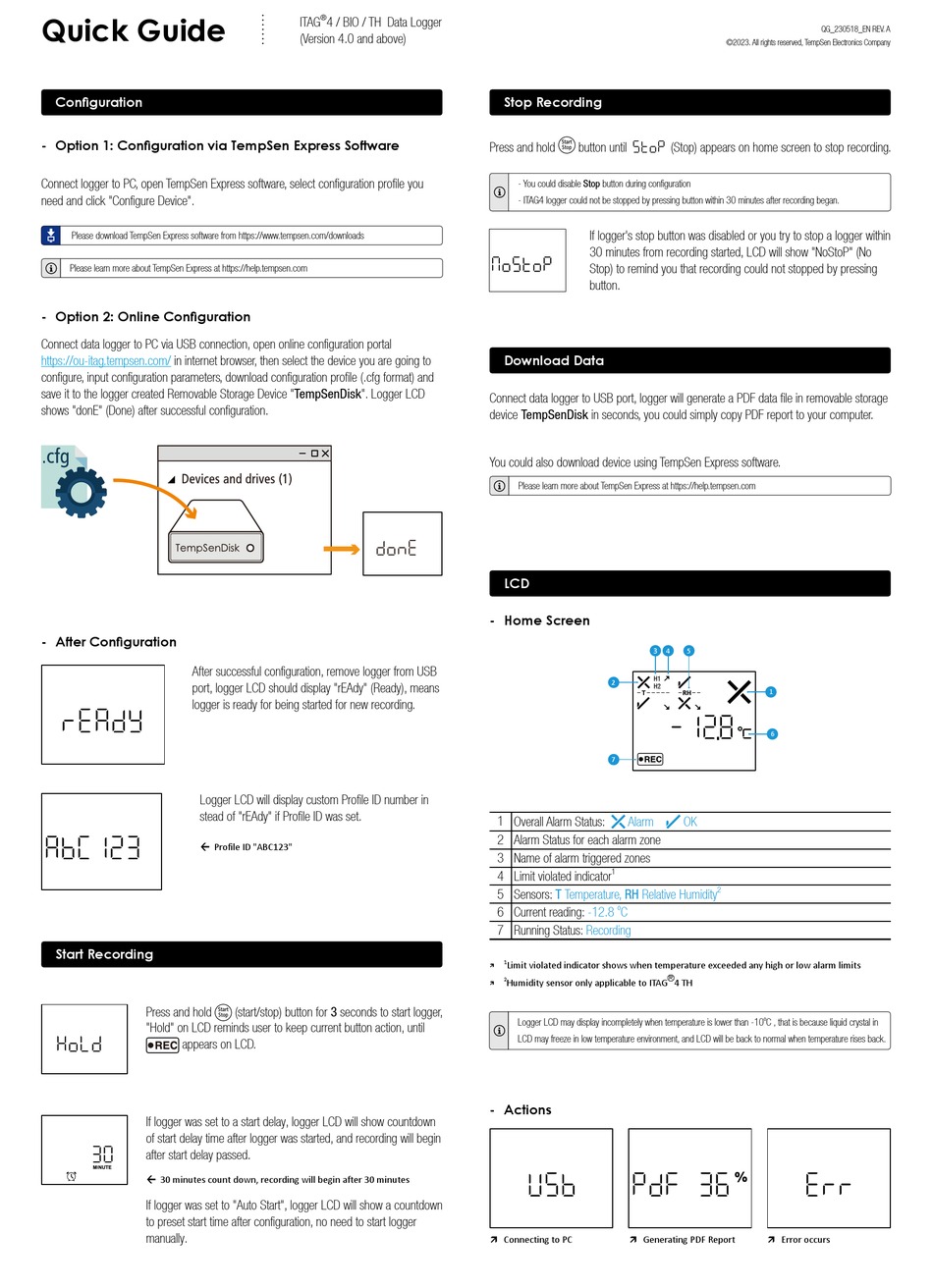

TempSen ITAG 4 Quick Manual

Quick Guide

Configuration

- Option 1: Configuration via TempSen Express Software
Connect logger to PC, open TempSen Express software, select configuration profile you
need and click "Configure Device".
Please download TempSen Express software from https://www.tempsen.com/downloads
Please learn more about TempSen Express at https://help.tempsen.com
- Option 2: Online Configuration
Connect data logger to PC via USB connection, open online configuration portal
https://ou-itag.tempsen.com/ in internet browser, then select the device you are going to
configure, input configuration parameters, download configuration profile (.cfg format) and
save it to the logger created Removable Storage Device "TempSenDisk". Logger LCD
shows "donE" (Done) after successful configuration.
- After Configuration
After successful configuration, remove logger from USB
port, logger LCD should display "rEAdy" (Ready), means
logger is ready for being started for new recording.
Logger LCD will display custom Profile ID number in
stead of "rEAdy" if Profile ID was set.
» Profile ID "ABC123"

Start Recording

Press and hold
"Hold" on LCD reminds user to keep current button action, until
appears on LCD.
If logger was set to a start delay, logger LCD will show countdown
of start delay time after logger was started, and recording will begin
after start delay passed.
» 30 minutes count down, recording will begin after 30 minutes
If logger was set to "Auto Start", logger LCD will show a countdown
to preset start time after configuration, no need to start logger
manually.
®
ITAG 4 / BIO / TH Data Logger
(Version 4.0 and above)
(start/stop) button for 3 seconds to start logger,

Stop Recording

Press and hold button until
- You could disable Stop button during configuration
- ITAG4 logger could not be stopped by pressing button within 30 minutes after recording began.
If logger's stop button was disabled or you try to stop a logger within
30 minutes from recording started, LCD will show "NoStoP" (No
Stop) to remind you that recording could not stopped by pressing
button.

Download Data

Connect data logger to USB port, logger will generate a PDF data file in removable storage
device TempSenDisk in seconds, you could simply copy PDF report to your computer.
You could also download device using TempSen Express software.
Please learn more about TempSen Express at https://help.tempsen.com

LCD

- Home Screen
2
7
1 Overall Alarm Status: Alarm
2 Alarm Status for each alarm zone
3 Name of alarm triggered zones
1
4 Limit violated indicator
5 Sensors: T Temperature, RH Relative Humidity
o
6 Current reading: -12.8 C
7 Running Status: Recording
1
Limit violated indicator shows when temperature exceeded any high or low alarm limits
À
2
Humidity sensor only applicable to ITAG
À
Logger LCD may display incompletely when temperature is lower than -10
LCD may freeze in low temperature environment, and LCD will be back to normal when temperature rises back.

- Actions

À Connecting to PC À Generating PDF Report
QG_230518_EN REV. A
©2023. All rights reserved, TempSen Electronics Company
(Stop) appears on home screen to stop recording.
4 5
1
6
OK
2
®
4 TH
o
C , that is because liquid crystal in
À Error occurs
