- Page 1 USER MANUAL ® ® TempSen Tempod USB Data Loggers UM-PDUB-181030 REV.A TEMPSEN ELECTRONICS COMPANY www.tempsen.com USER MANUAL UM-PDUB-181030 REV.A Page 1 / 23...
-
Page 2: Table Of Contents
CONTENTS TEMPOD DATA LOGGERS ..................................3 Product Overview ....................................3 Configure Tempod ..................................... 6 Start Recording ....................................9 LCD Screens ....................................11 Download Data ....................................13 Stop Recording ....................................13 Time Mark ....................................... 14 Battery ......................................15 Data Results Explanations................................16 Additional Information ..................................... -
Page 3: Tempod Data Loggers

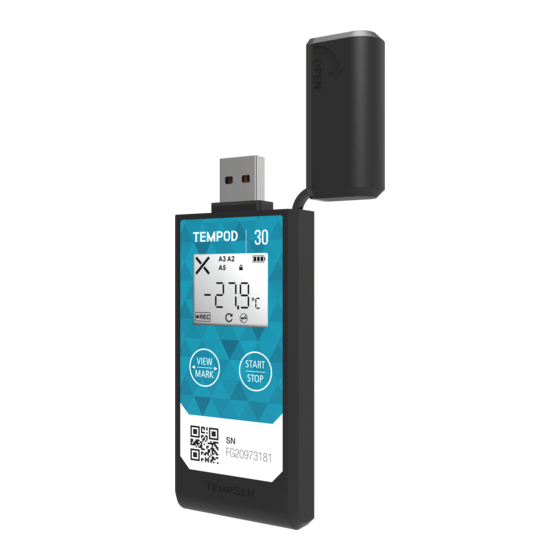

Tempod Data Loggers are innovative environment monitoring devices designed for cold chain logistics, storage monitoring, in terms of different data communication technology used, Tempod data loggers has two ranges, Tempod USB loggers and Tempod USB + Bluetooth (BLE 4.0) loggers. Specifications - Tempod USB Data Loggers Model Tempod 30 Tempod 50X Tempod 100X Tempod 200X Sensor... - Page 4 LCD Overview - Tempod USB Data Loggers Overall alarm status √ Ok × Alarm Empty, no alarm setting Triggered Alarm Zones Hi (High) Lo (Low) … Remaining Battery Indicator AccessKey (Password) protected Statistics Unit °C / °F / d (day) / h (hour) / m (minute) / s (second) Time Mark Stop button disabled...
- Page 5 Certifications & Standards Test Standards: EN 61326-1:2013 Test Standards: 47 CFR Part 15, Subpart B Test Standards: EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 300 328 V2.1.1, EN 62479:2010 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Configure Tempod
Configure Tempod with TempCentre Software Connect Tempod data logger to USB port of PC, open TempCentre software, select Configure Device in tool bar, software would automatically start searching and connecting devices, then user could start programming of this data logger. LCD displays “USB”... - Page 7 A brief note entered by user for describing monitoring task an it will be shown on data report. The sampling and recording interval, optional from 1 minute to 2 hours. Device needs to be started by pressing Start/Stop button for 3 seconds. Start Delay Option of manual start, time to wait before recording begins after logger was manually activated, optional from 1 minute to 30 days.
- Page 8 This option is used to avoid mistaken Stop Button action, once enabled, device could not be stopped by pressing Start/Stop button, recording stops when logging cycle completes, however, you are still allowed to stop recording through TempCentre or TempSen Go APP.
-
Page 9: Start Recording
If you are going to program an AccessKey protected data logger using configuration file (.cfg format file) downloaded from online utility (see Configure Tempod with Online Utility), please make sure enter correct AccessKey for Verification during selecting configuration options, otherwise configuration will fail, LCD will show “E105” if AccessKey is incorrect or not included in configuration file (.cfg format file) applied to AccessKey protected data logger, LCD Screens after Configured Manual Start –Start Delay... - Page 10 Logger begins to measure temperature and returns readings to LCD after logger was manually activated, recording begins when temperature meets pre-set temperature condition(s). You could also start recording using TempSen Go App on mobile device, see TempSen Go APP Auto Start If logger was set to Start Mode >...
- Page 11 Home Screens No Alarm Setting Current Reading: 15.3°C Status: Recording No Alarm triggered Current Reading: 15.3°C AccessKey enabled Status: Recording Alarm triggered at alarm zones: Hi, Lo Current Reading: 26.4°C Status: Recording Alarmed triggered at alarm zones: A3, A2, A5 Current Reading: 9.8°C Status: Recording USER MANUAL...
- Page 12 Statistics Press View/Mark button on data logger to view recording statistics. Max: Maximum value Min: Minimum value Avg: Average value Max Value: 37.5°C Time Marks 3 of 9 marks placed. USER MANUAL UM-PDUB-181030 REV.A Page 12 / 23...
-
Page 13: Download Data
Download Data via TempCentre Software Connect Tempod logger to USB port of computer, open TempCentre program, TempSen will start searching USB ports and find device in couple of seconds, once device was found, TempCentre will begin to download data automatically, you could click on Save button to save data to your local data base. -
Page 14: Time Mark
Press View/Mark button on data logger to place a time stamped mark, up to 9 time marks available. You could also place time mark using TempSen Go APP, please see TempSen Go APP > Control Data Logger > Time Mark USER MANUAL UM-PDUB-181030 REV.A... -
Page 15: Battery
Tempod data logger contains one user replaceable Panasonic CR2450 lithium battery. Remaining Battery Indicator 3 bars - Full 2 bars - Good 1 bar – Medium 0 bar – Low, please replace battery NOW Please note battery indicator may not accurately indicate the actual remaining power in battery in device, and the value of battery indicator may vary in environment of different temperature. -
Page 16: Data Results Explanations
Device Information Unique identification number of data logger Current running status of logger Logging Summary The time the first data point is recorded at. The time the last data point was recorded at or recording was manually stopped at. Total recording duration time, which is calculated from the first point to the last point. MKT (Mean Kinetic Temperature) is a simplified way of expressing the overall effect of temperature fluctuations during storage or transit of perishable goods. - Page 17 Violations and Alarms Any readings outside of any specific alarm limit is a deemed as violation to alarm limit. A consecutive series of data points outside of any specific alarm limit would be deemed as one violation event. In example below, high alarm zone has three limit violation events.
-
Page 18: Additional Information
ADDITIONAL INFORMATION LCD may function abnormally after taken out from environment down to -20°C to room temperature, please wait for few minutes for it to restore to normal status. To avoid damaging your data logger, please do not disconnect it from USB port while it is communicating with the computer. ... -
Page 19: Tempcentre Data Management Softare
If it’s your first time to download software from www.tempsen.com, please sign up with the information required prior to downloading, then an email containing download link would be sent to the mail address you left in couple of minutes. -
Page 20: Faqs
FAQS Why sometimes remaining battery of Tempod logger becomes empty very soon? Sometimes incorrect installation of battery may make logger not able to correctly recognize the remaining battery, you could try steps below to make logger correctly recognize the remaining battery. Remove battery from logger Press the “View/Mark”... -
Page 21: Appendix
APPENDIX Error code shows on LCD (or PDF report) when ant of the following errors occurred. PDF Report Error Code Description E004 Error 0004 Error 004 Device Rest E006 Error 006 Start time error E009 Error 009 Start failure resulted from low battery E101 Error 101 CFG file checksum error... -
Page 22: Warranty
ONE (1) YEAR from shipment date. If a hardware defect arises and a valid claim within the Warranty Period, as its option and to the extent permitted by law, TempSen will either (1) repair the hardware defect at no charge, using new parts or parts equivalent to new in performance and reliability, (2) exchange the new product with a product is new or equivalent to new in performance and reliability and is at least functionally equivalent to the original product, or (3) refund the purchase price of this product. -
Page 23: Revision History
REVISION HISTORY Revision Date Details 2018-10-30 First version TempSen Electronics Company T: +86 21 6768 5210 F: +86 21 6768 5232 E: info@tempsen.com www.tempsen.com Technical Support support@tempsen.com ©TempSen USER MANUAL UM-PDUB-181030 REV.A Page 23 / 23...
