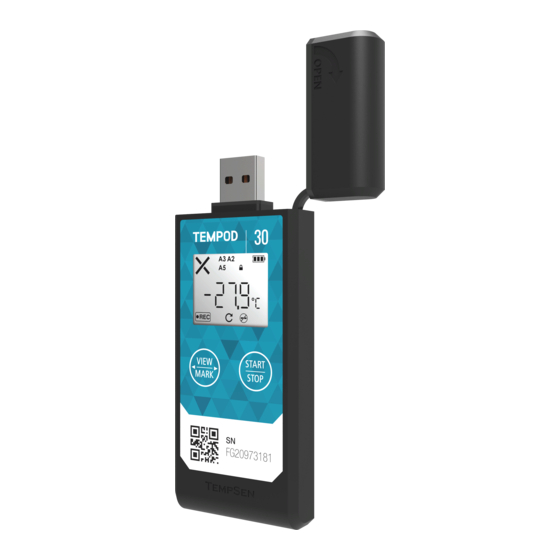

TempSen Tempod 30 Quick Manual

Quick Guide
Tempod 30 / 50X / 100X / 200X
®
Temperature Data Logger
T: +86 21 6768 5210 2F, Building C2, Espace
F: +86 21 6768 5232 6000 Shenzhuan Rd.
E: info@tempsen.com Shanghai 201619
W: www.tempsen.com China
1> Configuration
▼ Configure Device Online
®
Connect Tempod data logger to PC via USB connection, open online configuration portal
www.tempodlogger.com in internet browser, then select the device you are going to configure, input
configuration parameters, download configuration profile (.cfg) and save it to the logger created
Removable Storage Device "TempSenDisk" .
Configuration profile created contains Local Time Zone information, so please download
new configuration profile when you are in different time zone to avoid time error.
▼ Configure Device via TempCentre
Connect logger to computer, open TempCentre software, move to Configure Device mode, enter
configuration parameters, and click on Apply to complete configuration.
Please DO NOT remove logger from PC before you are prompted of configuration success.
Please download TempCentre software from www.tempsen.com/software/tempcentre
▼ LCD After Configuration
↑ Standby
Ready for Manual Activiation after configuration (Press Start button to activate device). Temperature
unit appears in right indicating device is set to condition start (After device manually activited, recording
begins after temperature meets preset temperature conditions).
← Auto
Wait for recording begins at preset time automatically after
configuration.
2> Start Recording
Press and hold button for 3 seconds to activate device and start recording.
Meanwhile (go) flashing on LCD reminds you to keep current button action.
← Start Delay (12.5 days)
LCD changes to time countdown if device was set to a start delay after
successful activation.
appears on downleft corner of LCD indicating recording begins.
↑ Configuration
success
