TempSen TPLR-120 Series User Manual

Multi color touch screen paperless recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.tempsendevices.net

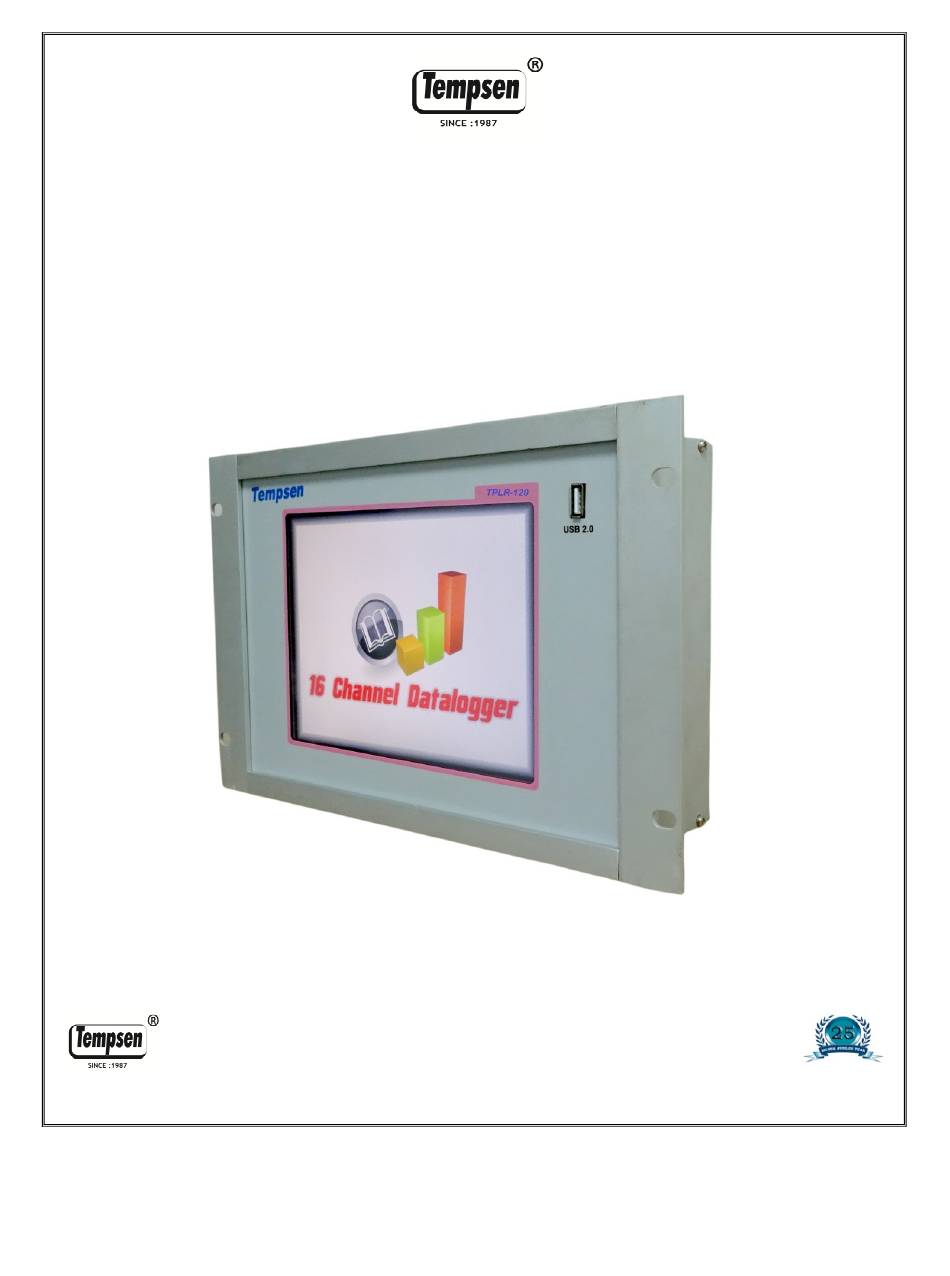

TOUCH SCREEN PAPERLESS RECORDER
USER MANUAL
MULTI
COLOR
TOUCH SCREEN PAPERLESS RECORDER
TPLR-120 Series
dDW^E s/^
th
Plot No : 2&3, Balaji Nagar, 4
Street, Mettukuppam, Thoraipakkam, Chennai-600097
Tele fax : +91-44-24581758,Mobil : +91-9841201758, Customer Care :+91-9841291758
E-mail : tempsen@yahoo.com, solution@tempsendevices.net
Website : www.tempsendevices.net
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPLR-120 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TempSen TPLR-120 Series

Summary of Contents for TempSen TPLR-120 Series

  • Page 1 USER MANUAL MULTI COLOR TOUCH SCREEN PAPERLESS RECORDER TPLR-120 Series dDW^E s/^ Plot No : 2&3, Balaji Nagar, 4 Street, Mettukuppam, Thoraipakkam, Chennai-600097 Tele fax : +91-44-24581758,Mobil : +91-9841201758, Customer Care :+91-9841291758 E-mail : tempsen@yahoo.com, solution@tempsendevices.net Website : www.tempsendevices.net Page 1...

  • Page 2: Installation

    Thank you for purchasing the TEMPSEN DEVICES, TPLR-120 MULTI COLOR TOUCH SCREEN PAPERLESS RECORDER. Please read the instruction manual carefully and use the instrument correctly. TEMPSEN DEVICES assumes no liability to any party for any loss or damage, direct or indirect, caused by the use or any unpredictable defect of the product.
  • Page 3 www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER SPECIFICATION OF TOUCH SCREEN PROCESS DATA LOGGER : General Input Resolution: 0.1% of full scale. Input Channels: 8 or 16 channel direct universal input. Measurement Rate: 4 channels per second on all direct input channels Internal Temperature Reference : 0 to 60 °C Analog Inputs DC Voltage: 0-5 VDC with accuracy 0.1%.
  • Page 4 www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER GPRS with SMS and Mail : Optional SMS : 5 Mobile Numbers with Low & High Alarm SMS After 30 minutes Email : 3 mail ID with Manual/ Auto mail Every day 12 AM Time Duration 1 hour per data Power Requirements: 100 to 240 VAC, 50/60Hz.
  • Page 5 www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER PC Based Software External PC software the user is able to manipulate the graph to make it easy to see interaction between recorded channels, or change the Color schemes, expand, compress, zoom and print. The same analysis tool used for multi-channel graph and used to scroll through data Optional : FDA Title 21 CFR Part 11 Compliant Software &...

  • Page 6: Operating Parameter Setting

    www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER OPERATING PARAMETER SETTING Switch ON the device, the following display will show the channel readings. It will take a few seconds. CONFIGURATION SETTING Click CONFIG in the display, Enter the password to progress into the Setting Screen. Page 6...

  • Page 7: Time And Date Settings

    www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER After entering the password, the setting screen will be displayed as shown below TIME & DATE SETTINGS In Setting -> SET Real Time Clock, Set the real time & date details. Click OK to save the settings. Page 7...

  • Page 8: Password Settings

    www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER LOG TIME SETTINGS In Setting -> SET Log Time, Set the Log Time Of The Logger. Click Ok to save the settings. PASSWORD SETTINGS In Setting -> Click SET Password, this feature is used to change password of the user. Page 8...
  • Page 9 www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER CHANNEL PARAMETER SETTINGS In Setting -> SET Channel Parameters, Select the Alarm Range, Offset, Decimal, Sensor and Channels. ALARM : Set the alarm range from the specified values. Low : -999 High : 9999 RANGE : Set the range with respect to the Sensor type specification.(REF PAGE NO:3) OFFSET : Set the offset range from -999 to 999, Default set “0”...

  • Page 10: Copy Memory

    www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER COPY MEMORY : Insert an USB 2.0 drive in the front panel of the Logger. In Setting -> Click COPY Memory, this feature is used to copy the Logger memory in to the Pen Drive. If USB 2.0 drive is not inserted in the drive, an error screen, PEN DRIVE PROBLEM!!! Will be displayed.

  • Page 11: Print Memory

    www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER PRINT MEMORY : Insert an Ink jet printer through the PRINTER PORT provided in the back panel of Logger. In Setting -> Click PRINT Memory, the entire memory will be printed. GRAPH : After completing all the Settings, Click HOME icon in the Setting screen. Click GRAPH icon, to display the channel readings individually.

  • Page 12: Terminal Details

    www.tempsendevices.net TOUCH SCREEN PAPERLESS RECORDER TERMINAL DETAILS: Input Terminal Power Supply Printer Port Communication port High & Low Alarm ID NUMBER : In Setting -> ID NUMBER SETTING for Multi Logger Software DATA LOGGING OFF Logging Off The Data Logger, Click HOME icon in the Setting screen In Setting ->DATA LOGGING OFF Page 12...

  • Page 13: Maintenance

    After connecting the sensor if the actual value shown is not proper then check the calibration is Correct according to the calibration constant table. In case if fault developed other than the above mentioned, contact TEMPSEN DEVICES, CHENNAI-600097 , TN , INDIA , Cell : +91-9841201758, Phone : +91-44-24581758 Email : solution@tempsendevices.net,tempsen@yahoo.com , web: www.tempsendevices.net...
