PolyJohn PH04 COMFORT XLT Series Product Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

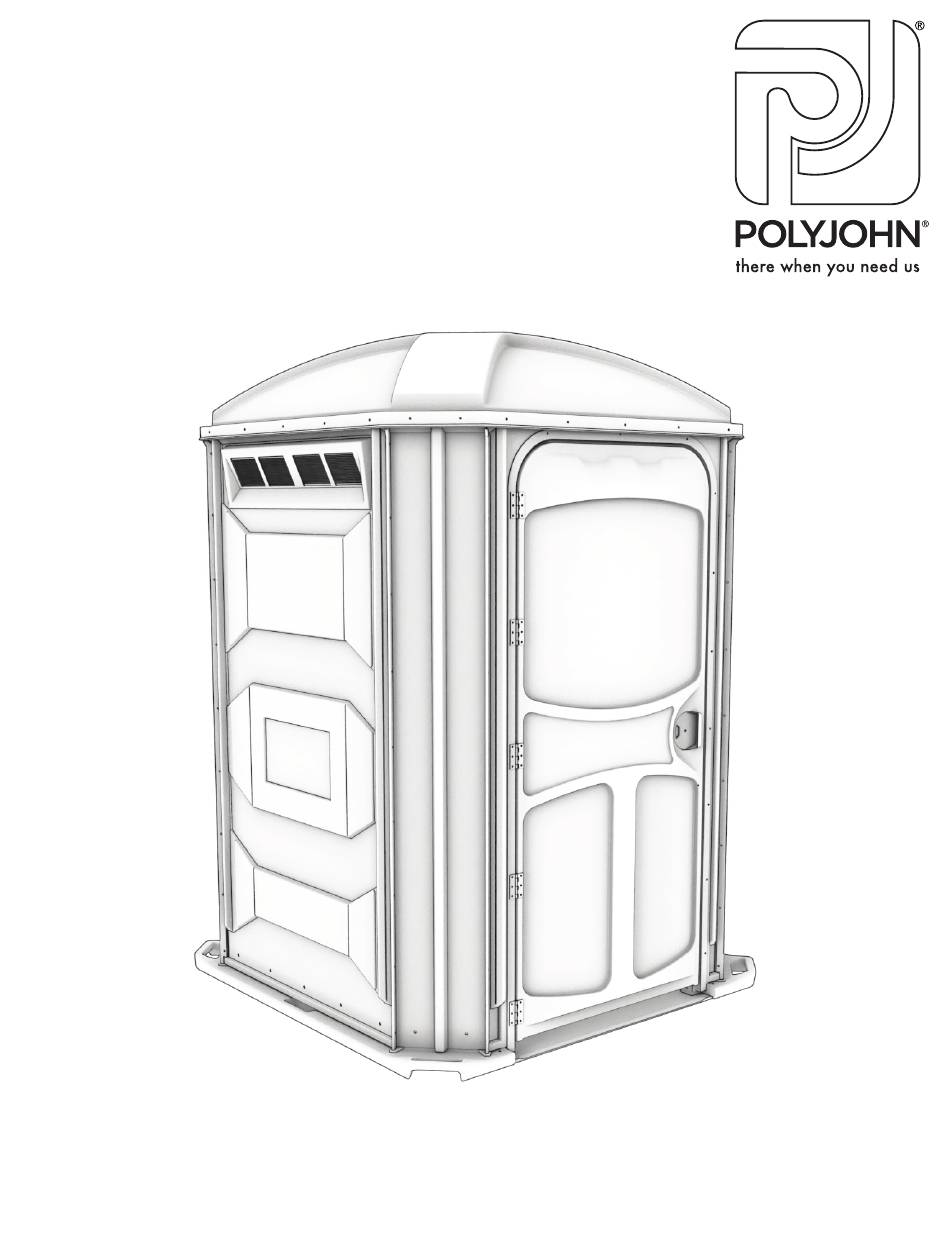

PH04 COMFORT XLT
™
SERIES
PRODUCT INSTRUCTIONS
STATIC MODEL
NOTE: We recommend reading through the entire Assembly Instructions prior to proceeding with installation, service or maintenance.
All references to left and right throughout this guide are as viewed from the front.
Page 1 of 19
June 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH04 COMFORT XLT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PolyJohn PH04 COMFORT XLT Series

Summary of Contents for PolyJohn PH04 COMFORT XLT Series

  • Page 1 PH04 COMFORT XLT ™ SERIES PRODUCT INSTRUCTIONS STATIC MODEL NOTE: We recommend reading through the entire Assembly Instructions prior to proceeding with installation, service or maintenance. All references to left and right throughout this guide are as viewed from the front. Page 1 of 19 June 2023...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS COMFORT XLT™ SERIES PH04-1000 DIMENSION IMPERIAL METRIC Exterior Height 91 in 231 cm Exterior Width 62 in 157 cm Exterior Length 62 in 157 cm Door Frame Height(I.D.) 74 in 188 cm Door Frame Width(I.D.) 32 in 81 cm Tank Seat Height 19 in 48 cm...

  • Page 3: Product Overview

    ® PolyJohn’s Comfort XLT portable toilet features all-new interior components PROs have been asking for. Designed with a large tank (capacity of 60 gallons) and a sloped, smooth tank top for easy cleaning, this unit is ideal for special events of all types including weddings, concerts, fairs, festivals, construction sites and parties where guests just want extra room.
  • Page 4 FULL SIZE SCALE COMFORT XLT™ SERIES PH04-1000 FASTENER DRAWINGS (113) PC-000100 Rivet (12) PC-000105 Rivet (30) PC-000140 Large Flange, Short Small Flange Nut 1/4”-20 Nylok (2) PC-000102 Rivet (1) PC-000117 Rivet (121) PC-000106 Washer Small Flange, Short Hollow Wall 3/4” Grip 3/16”...
  • Page 5 ASSEMBLY INSTRUCTIONS COMFORT XLT™ SERIES PH04-1000 STEP 1: PREPARE THE BASE SURROUND FOR ATTACHING THE WALL PANELS Drill a 1/4” hole in center notch of base surround for mounting, centering, and leveling the first side panel. This will be repeated for other two side panels. STEP 2.
  • Page 6 ASSEMBLY INSTRUCTIONS COMFORT XLT™ SERIES PH04-1000 STEP 3: ATTACH THE WALL PANELS TO THE BASE SURROUND Place a PC-000121 washer on a PC-000139 bolt and insert the bolt though the center hole in the left side panel and into the base surround. Place a PC-000123 washer on the inside along with a PC-000140 nut and tighten.
  • Page 7 ASSEMBLY INSTRUCTIONS COMFORT XLT™ SERIES PH04-1000 STEP 4. FRONT SUB-ASSEMBLY TO THE BASE SURROUNDS Lift the front sub-assembly and place the legs of the aluminum door jamb into the front of the base surround on each side of the door opening. Attach the front assembly to the front corner moldings by riveting into the pre-drilled holes using (18) PC-000100 rivets and (18) PC-000106 back-up washers as in Step 1.
  • Page 8 ASSEMBLY INSTRUCTIONS COMFORT XLT™ SERIES PH04-1000 STEP 5: ATTACHING CORNER MOLDINGS TO THE BASE SURROUND For the corner moldings: NOTE: (Be sure the corners are pushed tight against the base surround by pushing the corner at the rib in the center.) Start with the front corners first.
  • Page 9 ASSEMBLY INSTRUCTIONS COMFORT XLT™ SERIES PH04-1000 STEP 7. WASTE TANK INSTALLATION On the outside of the unit measure and mark drill spots. All holes will be 17-3/4” up from the top of the base surround. For the rear wall panel make a 17-3/4”...
  • Page 10 ASSEMBLY INSTRUCTIONS COMFORT XLT™ SERIES PH04-1000 STEP 10. ROTARY LATCH Place the door handle PC-000576 such that the edge of the opening in the door catches the hinge points on the handle. When the handle is in place, insert the screw PC-000174 through the handle’s center mounting hole.
  • Page 11 ASSEMBLY INSTRUCTIONS COMFORT XLT™ SERIES PH04-1000 STEP 13. TOILET PAPER DISPENSER The double roll dispenser can be mounted in a location of your preference based upon the accessories you have in the unit. Level the dispenser on the wall and use the four holes in the back of the dispenser as a guide to mark the location for drill holes.

  • Page 12: Parts Diagram

    PH03-0008R - Roof http: / /www. p ol y j o hn. c om/ph03- 0 008r/ http: / /www.pol y j o hn.com/pc-000205m/ PC-000205M - Lock http://www.polyjohn.com/pc-000100/ (28) PC-000100 - Rivet (4) PC-000100 - Rivet http: / /www.pol y j o hn.com/pc-000100/ http: / / www.
  • Page 13 - SERIAL I.D. PLATE http: / /www.pol y j o hn.com/pc-000794/ http: / /www.pol y j o hn.com/pc-000108/ (2) PC-000108 - RIVETS PH03-0006RL http://www.polyjohn.com/ph03-0006RL/ DOOR w/HINGES (15) PC-000102 - RIVETS (DOOR) http://www.polyjohn.com/pc-000102/ http: / /www.pol y j o hn.com/pc-000102/ (15) PC-000104 - RIVETS (JAMB) http://www.polyjohn.com/pc-000104/...
  • Page 14 BASE ASSEMBLY CXLT BASE COMPLETE PH04-0001C - Static Tank/Hand Flush Tank PH04-0001CF - Foot Flush Tank PC-000140 - NUT, NYLON LOCK 1/4”-20 http://www.polyjohn.com/pc-000140/ - WASHER 1/4” x 5/8 PC-000123 http://www.polyjohn.com/pc-000123/ (23) PC-0001 17 - RIVET, LONG HOLLOW WALL http://www.polyjohn.com/pc-000117/ (20)

  • Page 15: Cleaning And Maintenance

    WHITING, IN 46394-2175 800-292-1305 www.polyjohn.com/products/supplies/pros-choice.html We highly recommend membership in the Portable Sanitation Association International (PSAI); the worldwide authority on portable sanitation services. The PSAI, “Portable Sanitation Industry Certification Program” manual contains a wealth of information on standards and service procedures.
  • Page 16 Chemical exposure typically occurs through inhalation, ingestion, or adsorption. PolyJohn products are not intended to be used in these methods. PolyJohn Corporation cannot foresee all uses of their products (both intended and unintended uses) and as a result has opted to provide a general warning of known chemical presence.

  • Page 17: Frequently Asked Questions

    fit? A: The new PolyJohn Urinal has been completely redesigned. The new design has been proven to be the best shape and form to keep splash- back to a minimum. The side walls are much higher and there is no lip on the inside. This will help keep the urinal clean. The entire urinal has smooth surfaces as well to aid in cleaning.

  • Page 18: Warranty

    PolyJohn Enterprises warrants our sinks, tanks, trailers and sanistands from the date of purchase. Any misuse or abuse of our products or failure to properly follow recommended procedures shall void this warranty. The warranty is a 1 year limited warranty and a 90 day limited warranty for components thereof.
  • Page 19 COMFORT XLT™ SERIES PH04-1000 “PolyJohn is a family owned, state of the art, plastics manufacturing company dedicated to providing its employees with a work environment committed to excellence, and its customers with innovative products, services and technology that meet or exceed their requirements.”...
