Summary of Contents for PolyJohn MINI-FLUSH MF02-1000

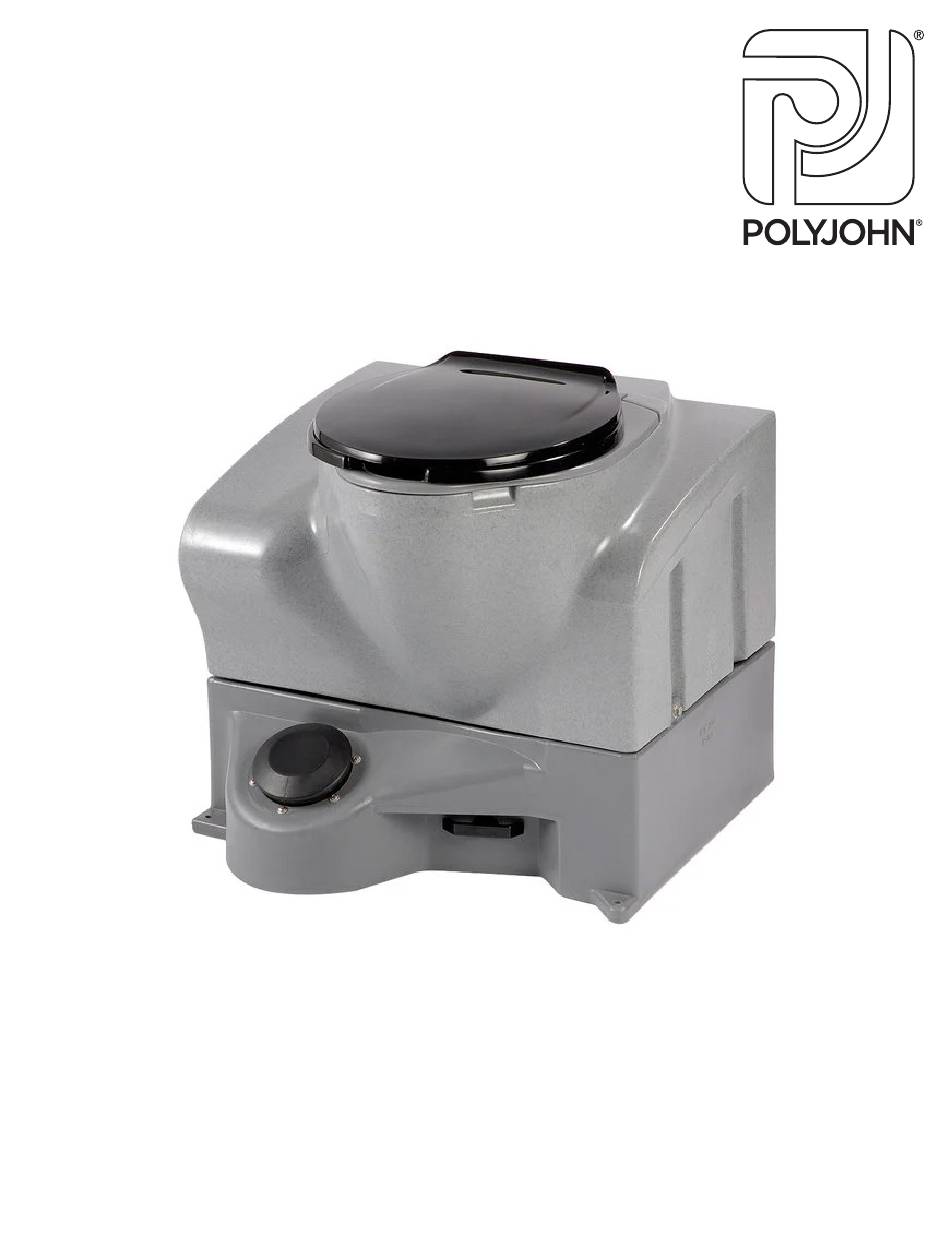

- Page 1 MINI-FLUSH™ WASTE SYSTEM PRODUCT INSTRUCTIONS there when you need us NOTE: We recommend reading through the entire Assembly Instructions prior to proceeding with use, service or maintenance. Page 1 of 10 June 2023...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS MINI-FLUSH MF02-1000 DIMENSION IMPERIAL METRIC Height 21.75 in 55 cm Width 23 in 58 cm Depth 24.5 in 62 cm Capacity 15 gal 57 ltr Weight 33 lbs 15 kg SEWAGE One gal 10.20 lb 4.62 kg Feces per person per day* .5 lb (26. - Page 3 INSTALLATION, USE AND SERVICE MINI-FLUSH MF02-1000 INFORMATION 1. Determine where the Mini-Flush Waste System will be placed. 2. Open the dump valve by pulling the handle. 3. Open the waste bowl and engage the prop rod. 4. Looking down through the waste bowl to the floor, use a marker and mark the location on the floor where the dump valve will be plumbed.
-
Page 4: Parts Diagram
PC-100373A ht t p : / /www. p ol y j o hn. c om/pc-100373A/ FLUSH BOWL NOZZLE PC-100608 http://www.polyjohn.com/pc-100608/ PC-100607 ht t p : / /www. p ol y j o hn. c om/pc-100607/ PROP ROD FLAPPER PIVOT ROD PC-000352 http://www.polyjohn.com/pc-000352/... - Page 5 PARTS DIAGRAM MINI-FLUSH MF02-1000 PC-000620 - 3” Waste Valve http://www.polyjohn.com/pc-000620/ PM-220554 (manufacturing only) PC-000624 http://www.polyjohn.com/pc-000624/ 3” Raissed Spinweld Fitting - 3” Waste Seal http://www.polyjohn.com/pc-000137/ PC-000137 - Bolt http://www.polyjohn.com/pc-000140/ PC-000140 - Nut PC-000621 http: / / www. p ol y j o hn. c om/pc- 0 00621/ 3”Mpt x Flange Adapter...
-
Page 6: Cleaning And Maintenance
WHITING, IN 46394-2175 800-292-1305 www.polyjohn.com/products/supplies/pros-choice.html We highly recommend membership in the Portable Sanitation Association International (PSAI); the worldwide authority on portable sanitation services. The PSAI, “Portable Sanitation Industry Certification Program” manual contains a wealth of information on standards and service procedures. - Page 7 Chemical exposure typically occurs through inhalation, ingestion, or adsorption. PolyJohn products are not intended to be used in these methods. PolyJohn Corporation cannot foresee all uses of their products (both intended and unintended uses) and as a result has opted to provide a general warning of known chemical presence.
-
Page 8: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS MINI-FLUSH MF02-1000 Mini-Flush Q: Where can I install a Mini-Flush? A: Our Mini-Flush unit is a semi-permanent toilet. It can be installed in an office trailer, workshops, lunchroom trailers, railcars, buses, boats, and mines. It does need to be plumbed to a holding tank of some kind. Q: How do I connect it to a holding tank? A: The holding tank should be installed below the unit. -
Page 9: Warranty Disclaimer
PolyJohn Enterprises warrants our sinks, tanks, trailers and sanistands from the date of purchase. Any misuse or abuse of our products or failure to properly follow recommended procedures shall void this warranty. The warranty is a 1 year limited warranty and a 90 day limited warranty for components thereof. - Page 10 MINI-FLUSH MF02-1000 “PolyJohn is a family owned, state of the art, plastics manufacturing company dedicated to providing its employees with a work environment committed to excellence, and its customers with innovative products, services and technology that meet or exceed their requirements.”...
