- Page 1 LaVine Club Chair SKU # 272-1071 Questions or Missing Parts Please call 1-888-243-9985 between 8:30 am to 5:00 pm EST Or email: service@merryproducts.com Made in China...
- Page 2 Table of Contents Table of Contents Pre-Assembly .............. 3-4 Table of Contents ............2 Safety Information ............2 Hardware Included .............. 3 Package Contents ..............4 Warranty ..............2 Assembly ..............5 1 Year Frame Limited Warranty ..........2 ..
- Page 3 Pre - Assembly Pre - Assembly HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Bolt (8x65mm) & Allen Key Bolt (6x70mm) & Allen Key...
- Page 4 Pre - Assembly (continued) Pre - Assembly (continued) PACKAGE CONTENTS *Note: DO NOT TIGHTEN ANY BOLTS BEFORE THE UNIT IS PUT TOGETHER. Part Description Quantity Side Frames Seat Backrest Seat Cushion Backrest Cushion...

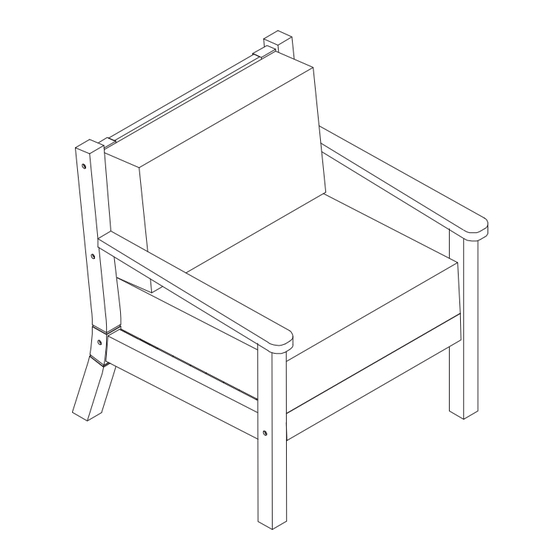

- Page 5 Note: DO NOT TIGHTEN ANY BOLTS As s e mbly As s e mbly BEFORE THE UNIT IS PUT TOGETHER. Attaching the side frames to the seat and backrest □ Attach the side frames (1) to the seat (2) and backrest (3) with bolts &...
