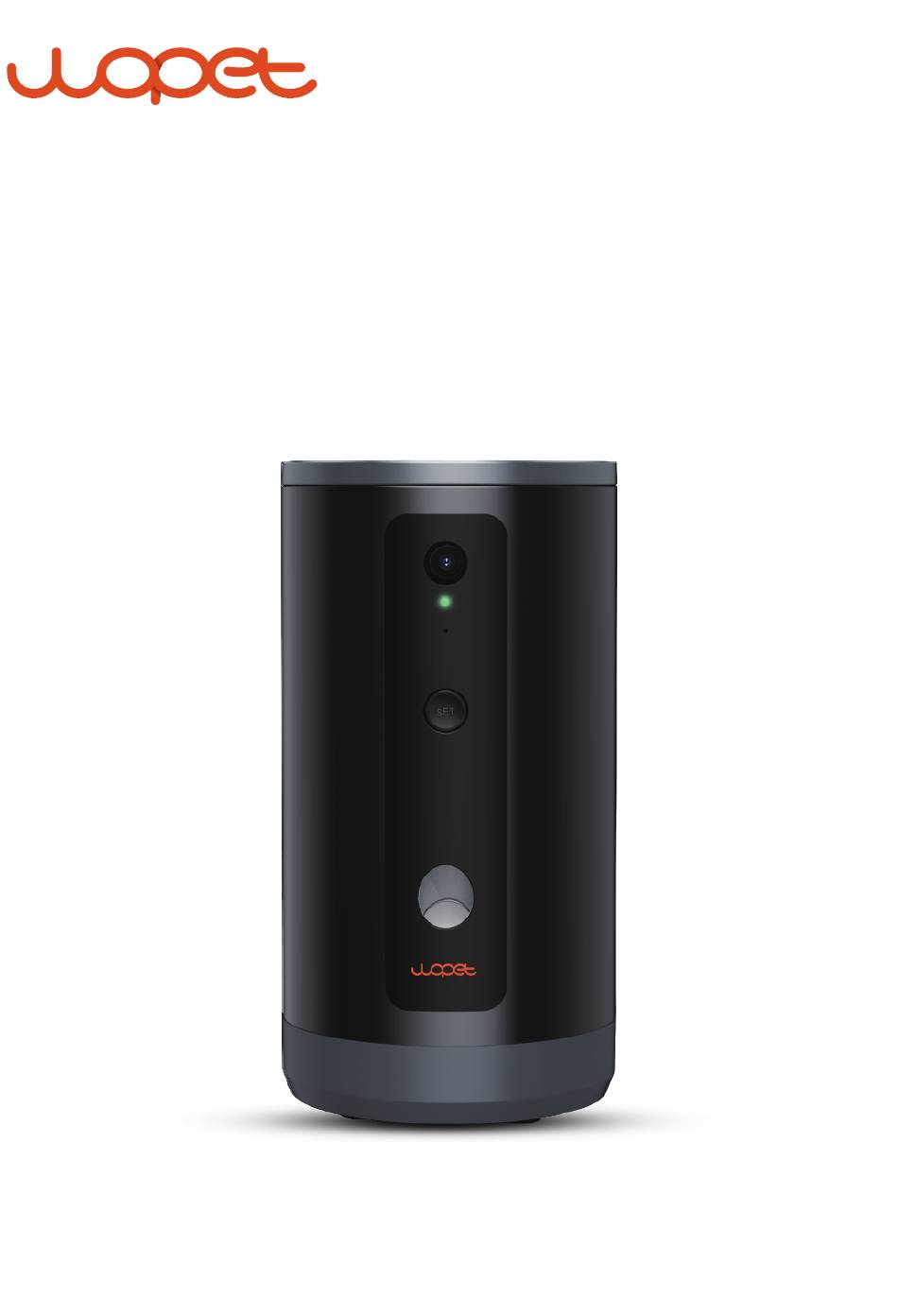

- Page 1 Guardian WIFI Pet Camera Treat Model: D100 USER MANUAL...
-
Page 3: Table Of Contents
[CONTENTS] .…...…...…………..……………………………………………… Product Specifications …..…...…...…………..……………………………………………… Features and Indicators …..…...…...…………..……………………………………………… WIFI Requirements ..…..…..…...…...…………..……………………………………………… App Installation .......…...…...…………..……………………………………………… App Usage ....…...…...…………..………………………………………… Add the Pet Camera Treat ..…………..………………………………………… Access the WLAN Network ..…………..………………………………………… WLAN Connection Modes ..……………………………………………… App Interface Function Introduction ......……………………………………………… Switching Different Mode ........…………..…………………………………………... -
Page 4: Product Specifications
Product Specifications Model D100 Food size 2-15mm (dry food only) Product size L147*147*254mm/5.78*5.78*10in Product weight 1.1kg/2.42lbs Product material DC-powered supplp 5V/1A Network 5GHz/2.4GHz... -
Page 5: Features And Indicators
Features and Indicators HD Camera Status Light Microphone Set Button & Manual Feeding Treat Popper 300 Degree Rotating Holder USB Port... -
Page 6: Wifi Requirements
WIFI Requirements In order to optimize equipment performance, it's best to use it within 10m of a WIFI transmitting device in a barrier-free environment. WIFI... -
Page 7: App Installation
App Installation Download and install the APP by scanning the QR code below. For Andriod users, search "wopet smart" in Google Play store, For IOS users, search"WOPET" in the App store. Scan the QR code to download WOPET APP... -
Page 8: App Usage
App Usage Step 1 Add the Pet Camera Treat Launch the “Wopet” App, then register an account and log in. Note: Enter your email Each device can be attached to only Enter your password one account at a time, but one... -
Page 9: Access The Wlan Network
STEP 2 Access the WLAN Network Press and hold the button, then release it when the device makes a "Ding-Dong" sound. It will then display "restore successful" which means the machine has been reset. Note: Observe and wait for the indicator to blink green before selecting the connection mode in the next step... -
Page 10: Wlan Connection Modes
STEP 3 WLAN Connection Modes Step 3.1 Bluetooth Mode（Recommended） Choose “Bluetooth Mode.”In the next step, a pop up will prompt you to then turn on Bluetooth as in the description... - Page 11 The app will automatically access WIFI from your phone; just type the correct password. Finally, click the “confirm” option and it will begin connecting. Note: If Bluetooth mode fails, please refer to the Scan mode or AP mode guide on page 14 and page 15...
-
Page 12: App Interface Function Introduction
App Interface Function Introduction Page up Setting Gallery Full Screen Capture Photo Rotate Angle Button Voice Chat Sound Record Rotate Angle Button Toss A Treat Note: Press and hold the "Toss a treat" button to toss up a treat On this page, you can take a photo or video of your cute pet, and they are saved in the "Gallery"... - Page 13 Click in the top right corner to enter the settings interface. You can set the device name, recording,volume etc. If you want to have voice interaction with your pet, you must enable the "Two-way voice" option. If the device is lacking food, you can check this notification in "Event List"...
- Page 14 Click "Me" in the bottom right corner to enter the settings interface. Select the "Push" option, and you can receive a push notification when feeding is complete. You can also change your password on this page. Check the updates Close the account Log out the account...
- Page 15 If there is a question about your device, please click "help" enter next page below. Please refer to this page for solutions. For any other questions,please contact customer service via support@wopet.com...
-
Page 16: Switching Different Mode
Switching Different Mode If the Bluetooth mode connection fails: Press and hold the "SET" button, then release it when the device makes a "Ding" sound. Wait for the indicator to slowly blink green, and then select one of the modes. -
Page 17: Scan Mode
STEP 1 Scan Mode In the next step, type the corresponding password, and a "QR code" will appear. Aim the camera on the device towards the code until it makes a ”DI“ sound, and wait for connection. -
Page 18: Ap Mode
STEP 2 Ap Mode In the next step, type the corresponding password, then open your phone’s “WLAN” settings page. Find and connect to the WIFI network starting with "Wopet_xxx". Finally, go back to the app. -
Page 19: Rotating 300 Degree Views
Rotating 300-Degree Views 300° When first plug the cable, the holder will automatically rotate 300 degrees. - Page 20 Rotate Angle Button Rotate Angle Button You can press” rotate the angle” button to rotate either angle to adjust the angle of the camera.
-
Page 21: Manual Feed
Manual Feed Tap the button to manually pop a treat. -
Page 22: Faqs
FAQs Red Light Green Light Product State Flashes slowly Configurable status (Once a second) Flashes quickly Connecting to the network (Twice a second) Always on Network is connected No food in the grain bucket or the food is Flashes slowly blocked Q: When pressing the "Toss a treat"... - Page 23 Q: The video stream is choppy and/or buffering frequently. A: Check if the WIFI signal is strong enough, and try to refresh the page on the app. Q: The user can't enter his/her APP account. A: Please check that you are properly connected to the network. B: Ensure the account isn't currently being used by another user Any more questions, please email our support team:...
-
Page 24: Fcc Warnings
FCC Warnings Changes or modifications to this unit is not expressly approved. Non-compliance could void the user's authority to operate the equipment. Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 25 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi- cations. There is no guarantee that interference will not occur with any particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of...
-
Page 26: Warranty Information
④ The warranty is not transferable. We only provide warranty services to buyers who purchased from our Amazon store and WOpet official website store and possess proof of purchase - not to any other purchaser or subsequent owner. - Page 27 Receiving defective or used (proof needed) products; Receiving with missing parts; Item is defective under proper use. WHAT IS NOT COVERED Purchase from non-amazon channels /non-WOpet official website store/other physical stores; Gift without proof of purchase; Tampering/abnormal use/accidental damage; Replacements and parts;...
- Page 28 MAKING A CLAIM If you have any problems when using our products, please send an email to the mailbox: support@wopet.com 30 days free Return & Replacement Standard Warranty: 1-Year product Warranty 2-Year Warranty Application: Please scan the QR code below to finish the registration form on our official website to get 2-Year in total warranty.
-
Page 29: Have A Question
Have a Question? 1.Find your order 2.Click "View order details" Your Orders Home Your Order Product link Buy Again Buy it again Your Wish List Write a product review Your Account View order details Shop by Department 3.Click the Seller name 4.Click “Ask a question”... - Page 30 Gifted parts, replacements, and consumable products are not covered by the 2-year warranty Manufactures' warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased,or who you purchase the product from. Please review the warranty carefully, and contact the manufacture if you have any questions.
- Page 32 Boundless Love for Pets...
