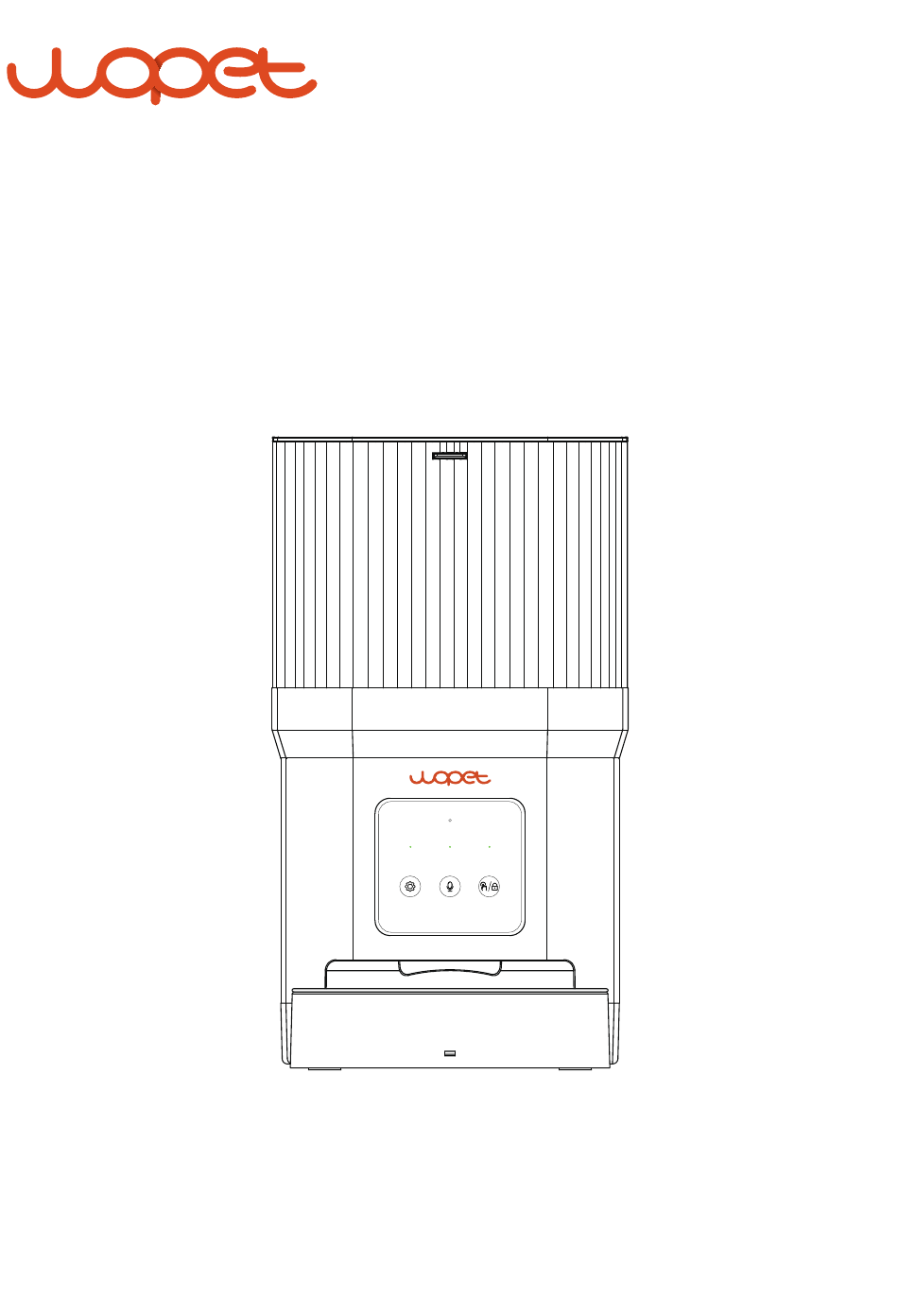

- Page 1 Cube Air 10 Model: CA10 User Manual * Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
- Page 3 Scan code to learn how to set up your feeder. Scan code to get the “WOpet Life” App...
-
Page 4: Table Of Contents
Install the bowl Install the hopper Install the lid Clean the hopper Feeder Panel Introductions Buttons and Indicator Lights WOpet APP Setup Download “WOpet Life” APP Register an account Add a device FAQs FCC Warnings Ask Us A Question Warranty Information... -
Page 5: Product Specifications
PRODUCT SPECIFICATIONS Model CA10 Capacity Meals 10 meals per day Screen 10g / 0.35oz (8 portions One portion at most per meal) Food size 2 - 12mm (dry food only) Small / medium-sized Pet size dogs and cats 3 × alkaline D batteries Battery-powered supply (not included) DC-powered supply... - Page 6 Lock Hopper Turnplate Control Panel Feeder Base Base Food bowl...
-
Page 7: Feeder Assembly
FEEDER ASSEMBLY Take out the bowl Take the bowl out and lift the hopper upwards, take out the Type-C charging cable, desiccant, manual, etc. -
Page 8: Load In Desiccant
Load in desiccant Open the desiccant cap, put in the desiccant bag, and then close the cap. -
Page 9: Insert Batteries And Power Cable
Insert batteries and power cable Open the battery cover ① upward according to the indicated position, put in 3D-type batteries, then insert the Type-C power cable ②, put the cable into the cable slot, and finally close the battery cover. We highly recommend using dual power supply mode. -
Page 10: Install The Bowl
Install the bowl Install the food bowl ③ into the base ④ in the direction of the arrow as shown in the figure below. Install the hopper Install the hopper into the feeder base from top to bottom according to the arrow shown in figure (1)(2). （1）... -
Page 11: Install The Lid
Install the lid First tilt the cover into the slot, as shown in (3), and then press "lock" to close the cover into place, as shown in (4). lock （3） （4） Clean the hopper Fix the base of the machine, lift the hopper upward and take it out, as shown in (5)(6). -
Page 12: Feeder Panel Introductions
Feeder Panel Introductions Microphone Recording Status Indicator Wi-Fi Lock Indicator Indicator Voice Recorder Reset Unlock/Manual Feeding... -
Page 13: Buttons And Indicator Lights
Buttons and Indicator Lights Button Description Function Instructions Hold for 2 seconds to lock/unlock. Indicating light turns off in unlocked Unlock/ state. Manual Feed Click to dispense 1 portion. Press and hold in unlocked state to record (up to 10 seconds); release to stop. -
Page 14: Wopet App Setup
WOpet APP Setup Download the “WOpet Life” APP To download the “WOpet Life” app, scan the QR code or search “WOpet Life” on App Store® for iOS or Google Play Store for Android. Note: The mobile APP UI will be upgraded from time to time, please refer to the actual interface for specific details. - Page 15 If not found, manually select from the device list. Added devices appear on the homepage list.
- Page 16 Note: This product is compatible with 2.4GHz WiFi only and does not support 5GHz WiFi. For a stable WiFi connec- tion, keep the device within 19.7ft (6m) of the router, unobstructed by walls or objects. Network pairing works only in power supply mode, not in battery mode.
-
Page 17: Faqs
(composed of letters, numbers, symbols, etc., 8~16 digits). 4. Check if the feeder is powered by batteries. App operation is not supported when powered by batteries. 5. Reset the feeder. 6. Email our customer service at support@wopet.com for further assistance. Q: The feeder shows offline. A: 1. Keep the feeder within close range to the router (within 6m/19.7ft), without walls or other objects causing a ... - Page 18 3. Check if the hopper is empty. 4. Check if the rotor is jammed. If the working indicator light is constantly red, remove and clean the rotor to solve the jam. 5. Check if the food size is too large which causes a blockage. The feeder allows dry food with a diameter of 2-12mm (0.08-0.47inch). Q: The amount of food dispensed is not the same. A: When first add food to the machine, the initial serving might be smaller.
-
Page 19: Fcc Warnings
For more questions, please email our support team: support@wopet.com Scan the QR code to get help FCC Warnings Changes or modifications to this unit are not expressly approved. Non-compliance could void the user's authority to operate the equipment. Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 20 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi-cations. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct...
-
Page 21: Ask Us A Question
Ask Us A Question 1.Find your order 2.Click “View order details” Your Orders Home Your Order Product link Buy Again Buy it again Your Wish List Write a product review Your Account View order details Shop by Department 3.Click the Seller name 4.Click “Ask a question”... -
Page 22: Warranty Information
Warranty Information If you have any problems when using our products, please send us an email at support@wopet.com 30 days free Return & Replacement Standard Warranty: 1-Year product Warranty 2-Year Warranty Application: Please scan the QR code to finish the registration form on our...
