Summary of Contents for WOPET FW70

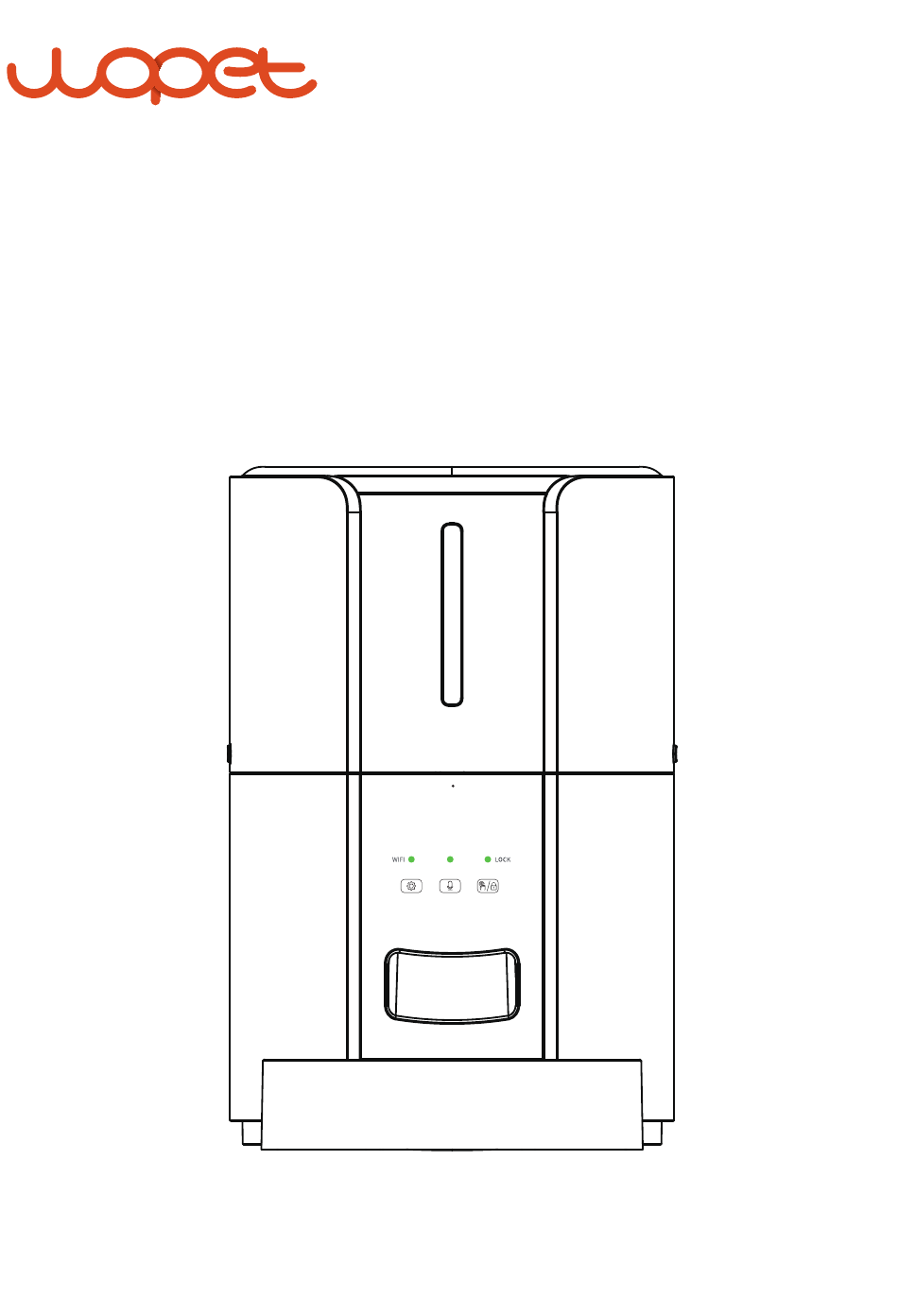

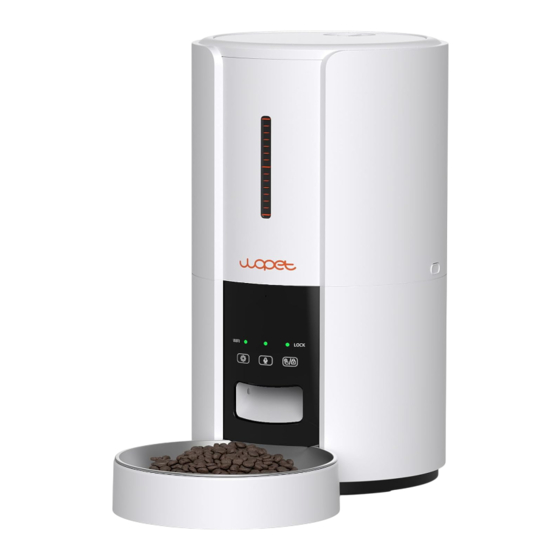

- Page 1 Castle Wifi Automatic Pet Feeder Model: FW70&FW70 plus USER MANUAL...
-
Page 2: Table Of Contents
[CONTENTS] Product Specification Structure Interface Specification Buttons Indicator Lights Assembly Guidelines Take out the accessories Machine Installation Barrel installation Food bowl installation Top cover installation Power connection Clean the turnplate Install the turntable APP Usage Instructions APP Operation Method Wi-Fi connection Connection Mode AP mode connection Feeding Setting... -
Page 3: Product Specification
Product Specifications Model FW70 FW70PLUS Capacity 10 meals per day 10 meals per day Meals Screen LED screen LED screen 12 grams(12 portions 12 grams(12 portions One portion at most per meal) at most per meal) 2- 15mm(dry food only) -
Page 4: Structure
Structure 1.Knob 2.Lid 3.Food tank 5.Button 6.Link stopper 7.Muddler 8.Turnplate 9.Rotating vane 10.Feeder base 11.Control panel 12.Anti-Clog Detector 13.Food bowl... -
Page 5: Interface Specification
Interface Specifications Buzzer Status Indicator WIFI Lock Indicator Indicator Unlock/ Setting Recording Manual feeding... -
Page 6: Buttons
Buttons Button Description Function Instructions Hold for 2 seconds to unlock/lock Unlock/ Click to feed one portion Manual Feed (in unlock state) When unlocked, continuously hold for 1 second until you hear a "beep" sound to start recording, release the Record button when you hear two "beep"... -
Page 7: Indicator Lights
Indicator Lights Iocation Name Status WiFi network indicator Status indicator Lock indicator... -
Page 8: Assembly Guidelines
Assembly Guidelines Take out the accessories the food bowl, adapter, power cord, and other accessories. -
Page 9: Machine Installation
Machine installation Install the desiccant (For better preservation, it is recommended to replace the desiccant every 15 days). knob Rotate the switch counterclockwise to remove the top cover. Desiccant Press inward the desiccant cap to open it, and install the desiccant. -
Page 10: Barrel Installation
Barrel installation Align the top cover button with the slot in the machine body and press downward. Food tank Buttons Buttons Food bowl installation Align the food bowl with the slot in the base and press inward until the bottom of the food bowl is level with the base. Bowl Base... -
Page 11: Top Cover Installation
Top cover installation First, adjust the switch to the unlock position. The open position Align the protrusion on the top cover with the slot in the barrel and install downward. The Notch Position Rotate the switch clockwise to the locked position. The Lock Position... -
Page 12: Power Connection
Power connection Supports dual power supply. To avoid power outage affecting machine operation, it is recommended to also install batteries in the machine. Battery cover Open the battery cover at the bottom, install 3 D batteries. Type-c Power Cord Insert the Type-C power cord as shown in the picture, clip the cord into the slot to prevent it from coming loose. -
Page 13: Clean The Turnplate
Clean the turnplate Press the link stopper to remove it from the slot. Link stopper Rotate the turntable counter-clockwise. Turnplate Lift the turntable upward to remove it. -
Page 14: Install The Turntable
Install the turntable As shown in the picture, align the turntable with the unlock position on the machine body and install downward. Turnplate Fuselage position Feeder base Rotate the turntable clockwise to the locked position, press the link stopper into the slot. Slot... -
Page 15: App Usage Instructions
APP Usage Instructions WOpet Life” in GOOGLE PLAY WOpet Life” in APPLE STORE... -
Page 16: App Operation Method
APP Operation Method WOpet Life" APP, register with an email and activate the account. Note: You can set a 6-20 character password, which must contain at least one letter and one number. Wi-Fi connection Note: To ensure normal WiFi connection and signal stability, please keep the device within 6 meters/19.7 ft of the router,... -
Page 17: Connection Mode
Check if the mobile phone's is on before connecting.) 1.1. Click "Set Up Device" as shown in figure (1). 1.2. Select the model "Castle FW70&FW70 plus" as shown in figure (2). 1.3. Plug in the power, confirm that the Wi-Fi indicator light is flashing green, as shown in figure (3). - Page 18 1.4. Confirm that the top right corner. 1.5. Enter the Wi-Fi account and password, as shown in figure (4). 1.6. The connection process is as shown in figure (5). 1.7. You can set the machine name as shown in figure (6). 1.8.
- Page 19 Continue to add devices Click the "+" in the upper right corner as shown in figures (8) and (9), you can continue to add devices following the aforementioned method.
-
Page 20: Ap Mode Connection
2.1. Click "Set Up Device" as shown in figure (10). 2.2. Select "Wi-Fi" mode at the top right corner, confirm that the WIFI indicator light is flashing green quickly, long press 5 seconds until the Wi-Fi indicator light flashes green slowly, then click confirm, as shown in figure (11). - Page 21 2.6. Return to the APP interface, the connection process is as shown in figures (15). 2.7. Change the device name as shown in figure (16). 2.8. Complete the device connection, as shown in figure (17). SL-WOpet-xxxx (13) (15) (16) (17)
-
Page 22: Feeding Setting
3.1. Manual Feeding the feeding settings, click on "Extra Snack" to select the number of portions (each portion 12g), click "Confirm" to complete the manual feeding, as shown in figures (18), (19), and (20). (18) (19) (20) 3.2. Set Feeding Plan feeding plan, click on "Add a meal", enter "Time, Label, Food quantity"... -
Page 23: Device Removal
(21) (22) (23) figure (26). (25) (26) -
Page 24: Faqs
FAQs Q: The feeder cannot connect to Wi-Fi 1. Check if the machine is powered correctly. 2. Check if the account and password are correct, and enter the correct account and password (composed of letters, numbers, symbols, etc., 8~16 digits). 3. - Page 25 3. Check if the feed bin is empty. If the working indicator light is flashing red quickly, you need to refill it. constantly red, remove and clean the rotor to solve the jam. 5. Check if the food size is too large, causing a blockage. The feeder supports dry food with a diameter of 2-15mm/0.08- 0.6inch.
-
Page 26: Fcc Warnings
FCC Warnings Changes or modifications to this unit not expressly approved. Non-compliance could void the user's authority to operate the equipment. Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 27 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi- cations. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of...
-
Page 28: Have A Question For The Seller
Have a Question For the Seller 1.Find your order 2.Click “View order details” Your Orders Home Your Order Product link Buy Again Buy it again Your Wish List Write a product review Your Account View order details Shop by Department 3.Click the Seller name 4.Click “Ask a question”... -
Page 29: Warranty Information
Please review the warranty cafefully,and contact the manufacture if you have any questions. Warranty Information If you have any problems when using our products, please support@wopet.com QR code to finish the registration form on our official website within 30 days after you received the items. - Page 31 FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 32 IC warning statements: -English Warning Statement: RSS-GEN ISSUE 5, 8.4 User manual notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
