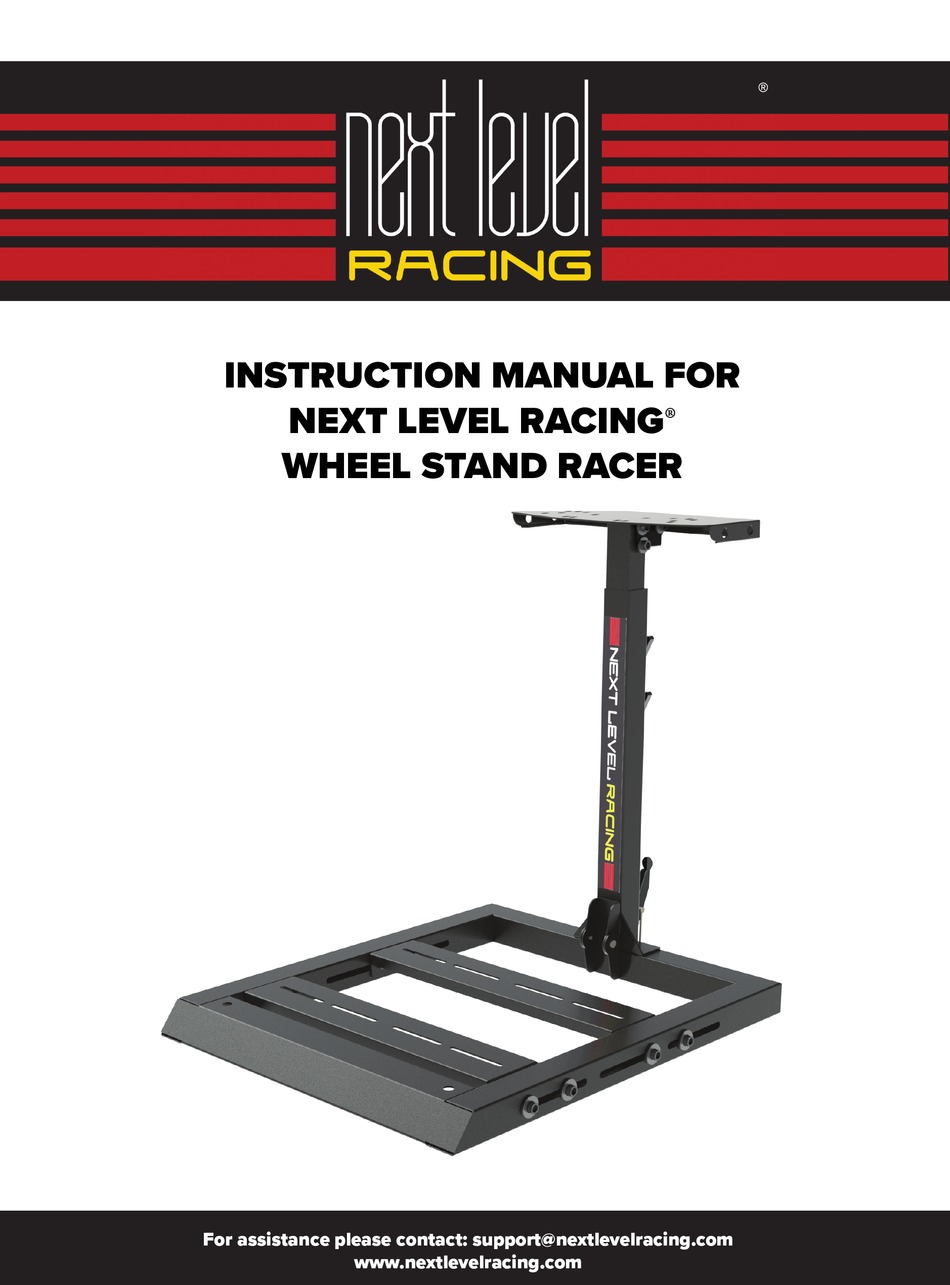

- Page 1 ® INSTRUCTION MANUAL FOR NEXT LEVEL RACING® WHEEL STAND RACER For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 2 Thank-you for purchasing a WHEEL STAND RACER If you require any support with your product please contact our friendly team at: support@nextlevelracing.com for a prompt response. WARNING -Please do not use power tools for assembly as over tightening can damage your frame. -During assembly please be sure to have a washer positioned at the front of every bolt as pictured below.
- Page 3 WHEEL STAND RACER What’s In The Box: 6 X M6 15MM 4 X ADJUSTABLE FEET 6 X M6 WASHERS 1 X M8 ALLEN KEY 1 X M6 ALLEN KEY 4 X M6 NUTS 1 X WRENCH 2 X CABLE MANAGEMENT CLIPS WHEEL STAND RACER FRAME For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 4 WHEEL STAND RACER Step 1: Wheel Plate U bolt Pedal Bar Unpack and unfold the wheel stand. Clip on the U-bolt to secure wheel support. For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
-
Page 5: Pedal Adjustment
WHEEL STAND RACER PEDAL ADJUSTMENT: Tip – For quick pedal distance adjustment just loosen the 8 bolts pictured and then slide pedal bars further or closer. Then tighten the 8 bolts to lock in position For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com... - Page 6 WHEEL STAND RACER ADJUSTABILITY 4 X ADJUSTABLE FEET For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 7 WHEEL STAND RACER ADJUSTABILITY 1. WHEEL ANGLE WHEN ADJUSTING WHEEL PLATE ANGLE, ONLY USE 1 BOLT. 2. HEIGHT ADJUSTMENT 2. HEIGHT ADJUSTMENT 3. PEDAL BAR DISTANCE ADJUSTMENT Before use and for rigidity, ensure that all nuts and bolts tightened. All nuts and bolts should be checked regularly and tightened if necessary.
-
Page 8: Need Assistance
WHEEL STAND RACER NEED ASSISTANCE? If you require any support with your product please contact our friendly team at: support@nextlevelracing.com for a prompt response. ASSEMBLY VIDEO: For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com... - Page 9 SHOP THE RANGE WHEEL STAND DD SINGLE FREE STANDING TRIPLE FREE STANDING MONITOR STAND MONITOR STAND GTULTIMATE COCKPIT FLIGHT COCKPIT GTTRACK COCKPIT F-GT COCKPIT MOTION PLATFORM V3 TRACTION PLUS MOTION For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 10 ® For assistance please contact: support@nextlevelracing.com...
