Hand Pump
Instruction Manual
MODEL: P352
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
*
Fax: 816-448-2142
E-mail: sales@bvahydraulics.com
Website: www.bvahydraulics.com
Model No. H3902
Maximum Operating Pressure 10,000 PSI
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Checked By:
Approved By:
Drawn By: 蕭益彰 Da
Advertisement
Table of Contents
Related Manuals for BVA P352
Summary of Contents for BVA P352
- Page 1 P352-M0_102021 Hand Pump Instruction Manual MODEL: P352 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Model No. H3902 Maximum Operating Pressure 10,000 PSI This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information
PRODUCT DESCRIPTION BVA Hydraulic Hand Pumps are engineered to meet most industrial standards for performance and safety. These lever operated pumps supply compressed hydraulic fluid to compatible applications i.e. rams, presses, spreaders, compactors and crimping machines, anywhere that 10,000 PSI of fluid pressure is needed. Special skill, knowledge and training may be required for a specific task and the product may not be suitable for all the jobs described above. -
Page 3: Specifications
(in³) Cylinder Force (lbs) (in) Port (in³) Stage Stage Stage Stage Single 3/8”- P352 24.9 21.4 10,000 0.05 0.38 Speed Acting 18NPTF WARNING • Never attempt to disconnect hydraulic connections under • Study, understand, and follow all pressure. Release all line pressure before disconnecting hoses. -
Page 4: Before Use
4. Close release valve by turning it clockwise. Finger tight ONLY. NOTICE: It is recommended to use BVA fittings, gauge adapter Using tools on release valve can damage it and cause the and guage. -
Page 5: Maintenance
4. Wipe up any spilled fluid and reinstall the vented oil filler plug/ screw. TROUBLESHOOTING GUIDE The following information is intended as an aid in determining if problem exists. Pumps should be repaired only by authorized BVA Service Center. For repair service, contact service center in your area. Symptom... -

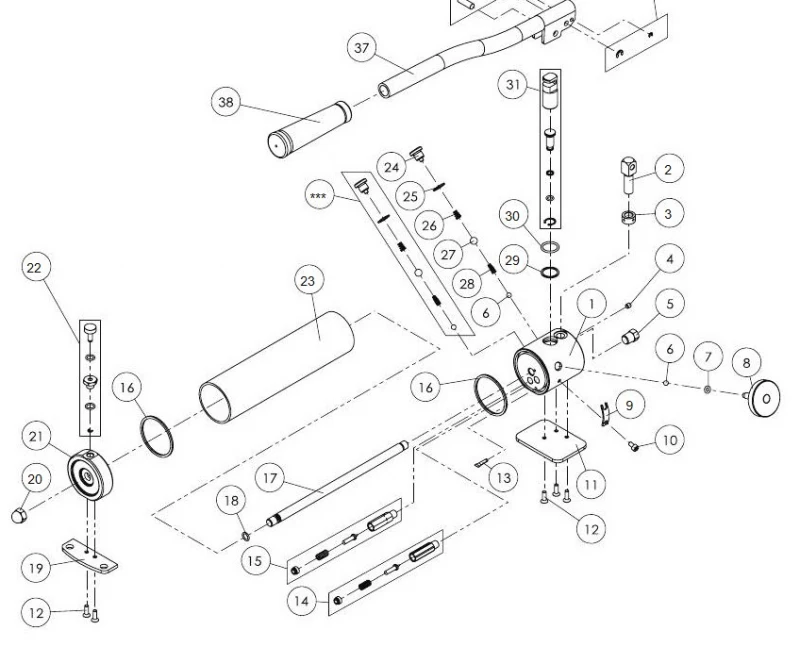

Page 6: Parts Illustration
Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. Parts Illustration Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only. Drawn By: 蕭益彰... -
Page 7: Parts List
(*) - Indicates items included in, and available only as part of Repair Kit. Repair Kits require special skill, training and equipment to repair. Installation must be done by Authorized Service Center. Contact BVA for list of Authorized Service Centers. - Page 8 • Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components.
