SAGITTARIUS TYPE B WALL SOUNDER + VISUAL ALARM DEVICE
OVERVIEW

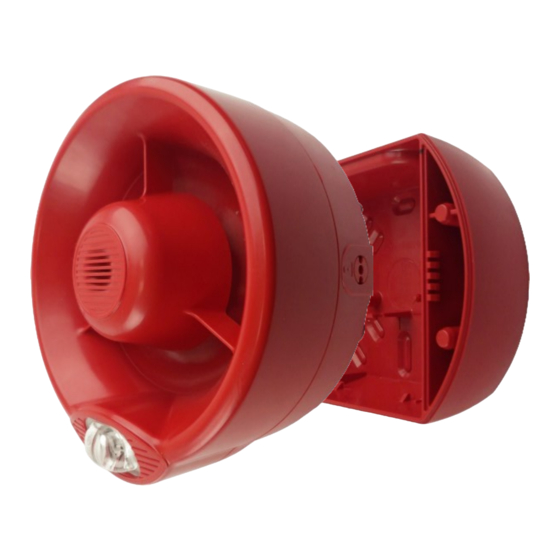

This device is an assembly of an SGWS-MOD/865 Sagittarius system interface module and a CWS100 conventional sounder / CWS100/AV
conventional sounder + visual alarm device. Sounder's output is activated following an alarm condition of the Sagittarius system.
INSTALLATION - IMPORTANT NOTES
- The device must be installed following your national and/or international codes of practice and standards: check them before performing the
installation of this device.
- Test this device after installation.
1) Detach the front operating section from the sounder back box (→ SOUNDER OPENING PROCEDURE).
2) Extract the SGWS-MOD/865 from the sounder's back box (→ MODULE'S EXTRACTION).
3) Set the SGWS-MOD/865's link switch to ON.
4) Extract the SGWS-MOD/865's battery covers.
5) Insert both batteries into their SGWS-MOD/865 holders, oriented as per polarity marks.
6) Link the SGWS-MOD/865 device to the Sagittarius system (→ LINKING).
7) Reinstall the battery covers.
8) Check the wireless link quality of the SGWS-MOD/865 positioned in the final installation location (→ WIRELESS LINK QUALITY
CHECK).
9) Install the sealing pad if the sounder is to be installed outdoors and/or in damp environments (not EN 54-3 approved)
(→ OUTDOORS AND DAMP ENVIRONMENTS INSTALLATION).
10) Fix the sounder back box to the wall on the final installation location (→ WALL INSTALLATION).
11) Reinstall the SGWS-MOD/865 into the sounder's back box (→ MODULE'S INSTALLATION).
12) Set sounder's tone and volume (→ OUTPUT TONE SETTING , →OUTPUT VOLUME SETTING).
13) Reinstall the front operating section onto the sounder back box (→ SOUNDER CLOSING PROCEDURE).
14) Test the SGWS-MOD/865 + CWS100 / CWS100/AV to check if it works properly (→ TESTING).
ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy
SGWS-MOD/865 + CWS100
SGWS-MOD/865 + CWS100/AV
SAGITTARIUS TYPE B WALL SOUNDER
INSTALLATION
www.argussecurity.it
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGWS-MOD/865 and is the answer not in the manual?

Questions and answers

Related Manuals for Argus Security SGWS-MOD/865

Summary of Contents for Argus Security SGWS-MOD/865

  • Page 1 SAGITTARIUS TYPE B WALL SOUNDER + VISUAL ALARM DEVICE OVERVIEW This device is an assembly of an SGWS-MOD/865 Sagittarius system interface module and a CWS100 conventional sounder / CWS100/AV conventional sounder + visual alarm device. Sounder’s output is activated following an alarm condition of the Sagittarius system.
  • Page 2 SOUNDER OPENING PROCEDURE When assembling or removing the front operating In order to detach the upper sounder body from the base: section of the sounder to/from the back box be careful to ensure the interconnection block is not 1) Insert the pins of the compatible key into the holes of one of the two side twisted which may cause damage.
  • Page 3 Table 2 3) Move the link switch to position BLANK again; device will NOT WORK if the link switch is on position ON ! ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...

  • Page 4: Wall Installation

    OUTDOORS AND DAMP ENVIRONMENTS INSTALLATION Suitable, but not EN 54-3 approved for outdoor use. When installing the sounder outdoors or in a damp environment, carefully apply the self- adhesive sealing pad to the back of the sounder base (picture 5). WALL INSTALLATION Fix the sounder base to the wall;...
  • Page 5 Tone volume DIP configuration - switch 6 and 7 dB(A) evaluation Notes HIGH 100 dB(A) +/- 3 All tones MEDIUM HIGH MEDIUM LOW Table 3 ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 6 TONE SET DIP switch Tone Tone designation Tone description configuration: number 1,2,3,4 e 5 Warble Tone 800Hz for 500ms, then 1000Hz for 500ms 11101 Continuous tone 970Hz continuous tone 01011 Slow Whoop (Dutch) 500-1200Hz for 3500ms, then off for 500ms 10101 German DIN tone 1200-500Hz swept every 1000ms (1Hz)
  • Page 7 Perform such opera- tions without using excessive force. Picture 12 Picture 11 ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...

  • Page 8: Battery Replacement

    6) Reinstall the battery covers. 7) Reinstall the SGWS-MOD/865 into the sounder’s back box. 8) Reinstall the front operating section onto the sounder back box. 9) Test the SGWS-MOD/865 + CWS100 / SGWS-MOD/865 + CWS100/AV to check if it works properly. info@argussecurity.it L20-SGWSMIN-0001 (vA.4)
  • Page 9 Picture 13 ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 10 60 days from first appearance of the low battery warning Parent expander’s check-up period 7 seconds (default setting) TECHNICAL SPECIFICATIONS (SGWS-MOD/865 + CWS100) Max current draw (at 3 V) 50 mA Acoustic emission frequency range. 440 - 2900 Hz...

  • Page 11: Warnings And Limitations

    Marking and data: Pass Synchronization: Pass Durability: Pass Temperature resistance: Pass Humidity resistance: Pass Shock and vibration resistance: Pass Corrosion resistance: Pass Electrical stability: Pass ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
