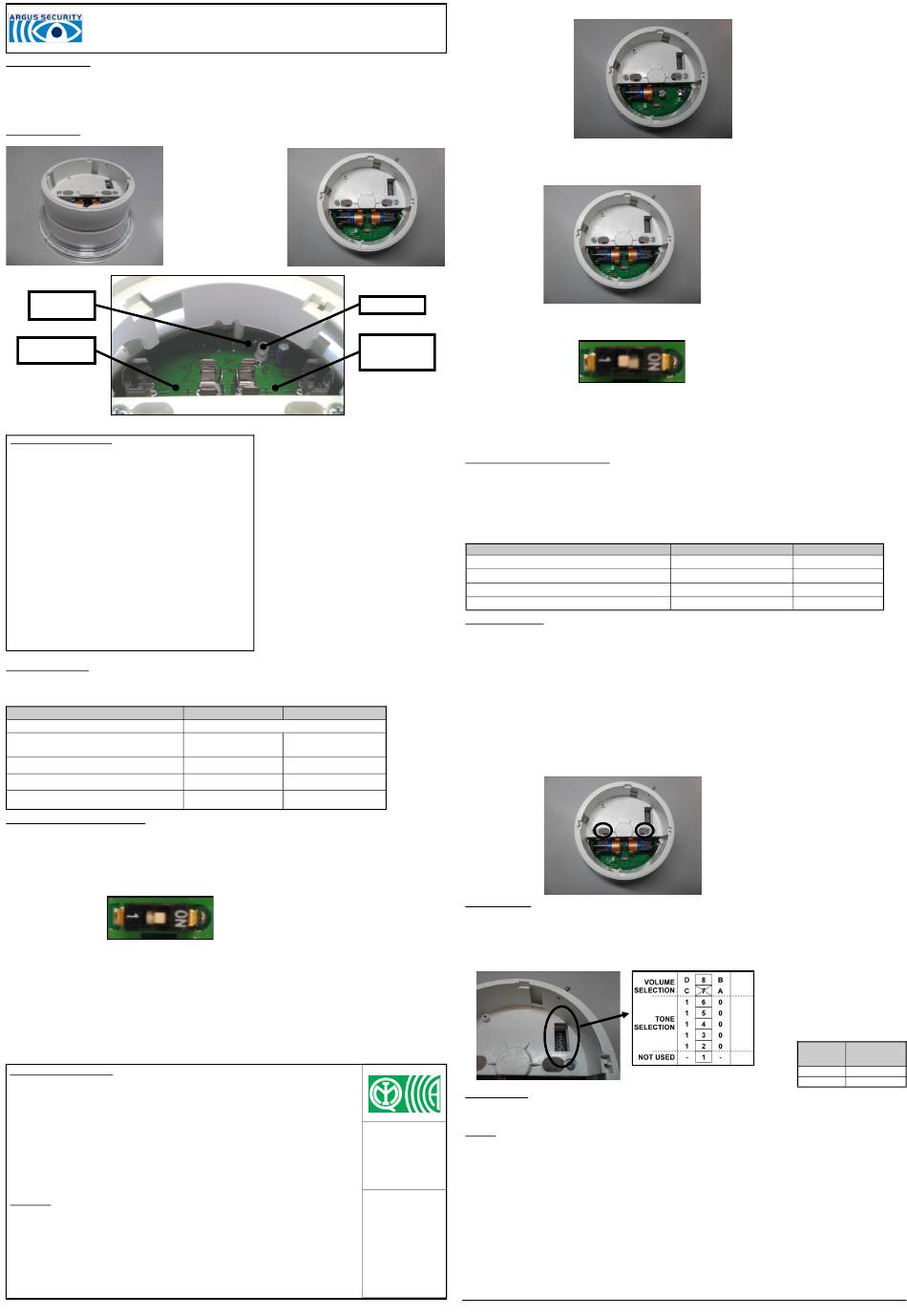

Argus Security SGRBS100-AV/L/865 Installation

SGRBS100-AV/L/865
WITH SUPPLEMENTARY VISUAL INDICATOR
GENERAL DESCRIPTION
The wireless sounder base is a device that activates its output when ordered so by the control panel in the event of fire alarms. The activa-
tion command is sent from the control panel to the base sounder through the wire to wireless translator interface module and other possible
wireless expander modules. Communication between the sounder base and the translator / expanders is obtained through the "Sagittarius"
wireless, analogue-intelligent bidirectional protocol. Device's radio communication meets European standard EN 54-25.
This sounder is equipped with a supplementary visual indicator that reinforce the audible warning.
Wireless sounder base is designed to act as a supporting mean for the installation of Sagittarius wireless detectors.
GENERAL OVERVIEW
Picture 1 - wireless
base sounder overview
LINK-PROGRAM
SWITCH
PRIMARY BATTERY
LODGEMENT
TECHNICAL SPECIFICATIONS *****
Operating frequency range 865 MHz
Radiated power 5 dBm (3 mW)
Usable operating frequency channels 7
Radio signal's modulation type FSK
Communication range with wire to
wireless device or wireless expander 200 m in open space *
device
Main and secondary battery types CR123A (3 V & 1.2 Ah)
Approved battery voltage range 2.75V - 3.20V
>3 years; remains operational for up to 60
Estimated battery life ** days from first appearance of the low battery
warning ***
Alarm current 110 mA
Operating temperature range from –10 °C to +55 °C
Maximum tolerated humidity - with no
95 % RH
condensing
between 70 dBa and 95 dBa at max volume
Maximum volume range @ 1m - depending upon angle and tone selection (refer
selectable to volume plots under OUTPUT OPERATION-
AL PERFORMANCE SPECIFICATIONS)
Device output tone's frequency range 440 Hz to 2900 Hz
Ingress protection rating 21C ****
Device's dimensions 145 mm x 66 mm
Device's weight 260 g
VISUAL LED INDICATOR
The wireless sounder base is equipped with a bicolour red - green LED (picture 3) that provides visual indication for functional conditions as
indicated in table 2.
Device status
Power up
Programming and linking to the system
Program - link failure
Normal condition
Lost link with the wire to wireless translator / wire-
less expander
DEVICE'S POWER SUPPLY AND LINKING
The linking operation permits the configuration of the wireless sounder base on the wireless system.
The linking operation described below does not change if made directly from the wire to wireless translator module's interface or from the
Wirelex PC configuration program.
1) Move the "Link-program" switch to position ON (picture 4).
WARNINGS AND LIMITATIONS
Our devices use high quality electronic components and plastic materials that are highly resistant to environ-
mental deterioration. However, after 10 years of continuous operation, it is advisable to replace the devices in
order to minimize the risk of reduced performance caused by external factors. Ensure that this device is only
used with compatible control panels.
Detection systems must be checked, serviced and maintained on a regular basis to confirm correct operation.
Smoke sensors may respond differently to various kinds of smoke particles, thus application advice should be
sought for special risks. Sensors cannot respond correctly if barriers exist between them and the fire location
and may be affected by special environmental conditions.
Refer to and follow national codes of practice and other internationally recognized fire engineering standards.
Appropriate risk assessment should be carried out initially to determine correct design criteria and updated
periodically.
WARRANTY
All devices are supplied with the benefit of a limited 3 years warranty relating to faulty materials or manufactur-
ing defects, effective from the production date indicated on each product.
This warranty is invalidated by mechanical or electrical damage caused in the field by incorrect handling or
usage.
Product must be returned via your authorized supplier for repair or replacement together with full information on
any problem identified.
Full details on our warranty and product's returns policy can be obtained upon request.
ARGUS SECURITY S.R.L., Via del Canneto, 14 - 34015 - Muggia (TS) - Italy
WIRELESS SOUNDER BASE
Picture 2 -
wireless base
sounder top view
Picture 3 - wireless
base sounder detailed
view of the inner area
Table 1
* Ideal operating range: may vary consistently according
to environmental conditions.
** When a low battery condition is indicated, both, main
and secondary, batteries must be changed altogether.
*** This lifespan value refers to the device being set with a
message transmission period of 12 seconds; tests are not
considered in this estimation.
**** Type A for indoor use only.
***** Check latest version of document TDS-SGRBX for
further data, obtainable from your supplier.
Green LED Red LED
1 second green, then 0.5 second red for 4 times
Blinking until linking and
programming is completed
- Continuously on
- -
0.5 second on and
1 second off
Picture 4 - "Link-program" switch: ON position
2) Insert the secondary battery into its housing (picture 5).
3) Insert the primary battery into its housing; the visual LED indicator switches on accordingly (see "Power up" in table 2 and
picture 6).
Ensure that both battery's polarity are correct!!!
LED INDICATOR
4) When the wire to wireless translator (by itself or piloted by the Wirelex) is searching for a new device for linking, move the "Link-program"
switch to position 1 in order to initiate communication with the translator module (picture 7); the visual LED indicator switches on accordingly
(see "Programming and linking to the system" in table 2).
SECONDARY
BATTERY
LODGEMENT
IMPORTANT NOTE!
Programming is considered to be completed successfully only if there is an indication of programming success on the wire to wireless trans-
lator or on the window of the Wirelex program.
If the linking and programming operation fails, check if mistakes were made with the wire to wireless translator or the Wirelex, remove the
batteries, change the switch over ON / 1 alternatively a few times in order to discharge the internal capacitor and then start again from point
1) re-performing the linking procedure.
COMMUNICATION QUALITY ASSESSMENT
It is possible to assess the wireless communication quality between the wireless sounder base and the wire to wireless translator / wireless
expander by using a testing feature built in the device.
After a successful linking operation, by changing over the "Link-programming" switch on the ON position, the device's LED will start blinking
according to table 3.
Always remember to reposition the switch to 1 after the assessment operation: device will NOT work operatively while the switch
is changed over the ON position.
Communication quality
No connection
Link margin is less than 10 dB
Robust communication with link margin from 10 dB to 20 dB
Robust communication with link margin over 20 dB
DEVICE'S PLACEMENT
For specific information regarding detector and device's spacing, placement and special applications refer to your specific national stand-
ards.
It is strongly advised to mount the wireless sounder base as far as possible from metal objects, metal doors, metal window openings, etc. as
well as cable conductors, cables (especially from computers), otherwise the operating distance may greatly drop. The sounder base should
not be installed near electronic devices and computer equipment that can interfere with the reception's quality.
1) Select the position of the sounder base before installing and fixing it.
Verify, from that position, that the communication between the device and the wire to wireless translator / wireless expander is
correctly established and working (see the COMMUNICATION QUALITY ASSESSMENT paragraph).
2) Install and fix the sounder base in the selected position with the provided screws (picture 8).
3) Select the sounder's base output's tone and volume (see the OUTPUT SETTINGS paragraph).
4) Insert the wireless sensor onto the sounder base, then secure it by turning it clockwise.
Table 2
OUTPUT SETTINGS
Output's characteristics when the wireless base sounder is activated (tone and volume) can be selected through the DIP switch selectors
located in the inner area of the sounder base (see picture 9).
In order to change over the switches use the tip of a pen or a little screwdriver.
For the selection of the output settings refer to picture 9, table 4 and table 5.
BATTERY FAULTS
If a battery fault condition is detected on the wireless base sounder, a fault message is sent to the control panel via the wire to wireless
translator / wireless expander.
TESTING
ARGUS SECURITY S.R.L.
Via del Canneto, 14
In order to test the functionality of the installed wireless sounder base, the following test must be performed: activate an alarm condition on
34015 Muggia (TS)
Italy the control panel (by a call-point or sensor in the installed system): the control panel will transmit an activation message to the device via
wire to wireless translator / wireless expander and activate the sounder base. After each test the device must be reset by the specific com-
19
mand on the control panel or on the wire to wireless translator (see the RESET paragraph). If the test fails check whether the batteries are
charged, if mistakes were done previously or even if the system is activated. If the wireless sounder base functionality is hopeless, send
back the device to your distributor for repair or substitution.
All devices must be tested after installation and, successively, on a periodic basis.
EN 54-25:2008
EN 54-3: 2001 + A1:2002; +
A2:2006
SGRBS100-AV/L/865
This product is not intended
to comply with the require-
ments of EN 54-23
For use in compatible fire
detection and alarm system
Type A for indoor use only
www.argussecurity.it info@argussecurity.it
Picture 5 - secondary
battery inserted
Picture 6 - primary and secondary
batteries inserted
Picture 7 - "Link-program" switch: 1 position
Assessment Device's indication
Fail Two red blinks
Poor One red blink
Good One green blink
Excellent Two green blinks
Picture 8 - position of the holes for
screw's insertion
Picture 9 - tone and
volume selection DIP
switch selectors
Volume
LOW
Table 4
HIGH
L20-SGRBVLIN-0001 (vA.1)
Table 3
Volume DIP
switch setting
A + B
A + D
