Argus Security VEGA FLEXIPLUS VC-BS-01 Manual

VC-BS-01
VC-BSB-23W-01
VC-BSB-23R-01
Products compatibility and general description
These products are to be used in conjunction with the following Vega and Vega Lite detectors:
V100
(VE0110CPR20130701)
V200
(VE0110CPR20130701)
V350
(VE0110CPR20130701)
LV100
(VE0210CPR20130701)
LV200
(VE0210CPR20130701)
LV350
(VE0210CPR20130701)
(In brackets, DOP reference)
These products are compatible only with control panels that use the Vega protocol.
In order to work, these sounder bases require a suitable host detector.
Following the triggering of an alarm condition on the host detector, the Vega Flexiplus base sounder activates its acoustic output, previously
selected through its selector.
Base sounders equipped with VAD (Visual Alarm Device), in conjunction with the acoustic signal, also emit an alarm visual signal; specifically:
- for VC-BSB-23W-01 white optical alarm signal
- for VC-BSB-23R-01 red optical alarm signal.
Product parts

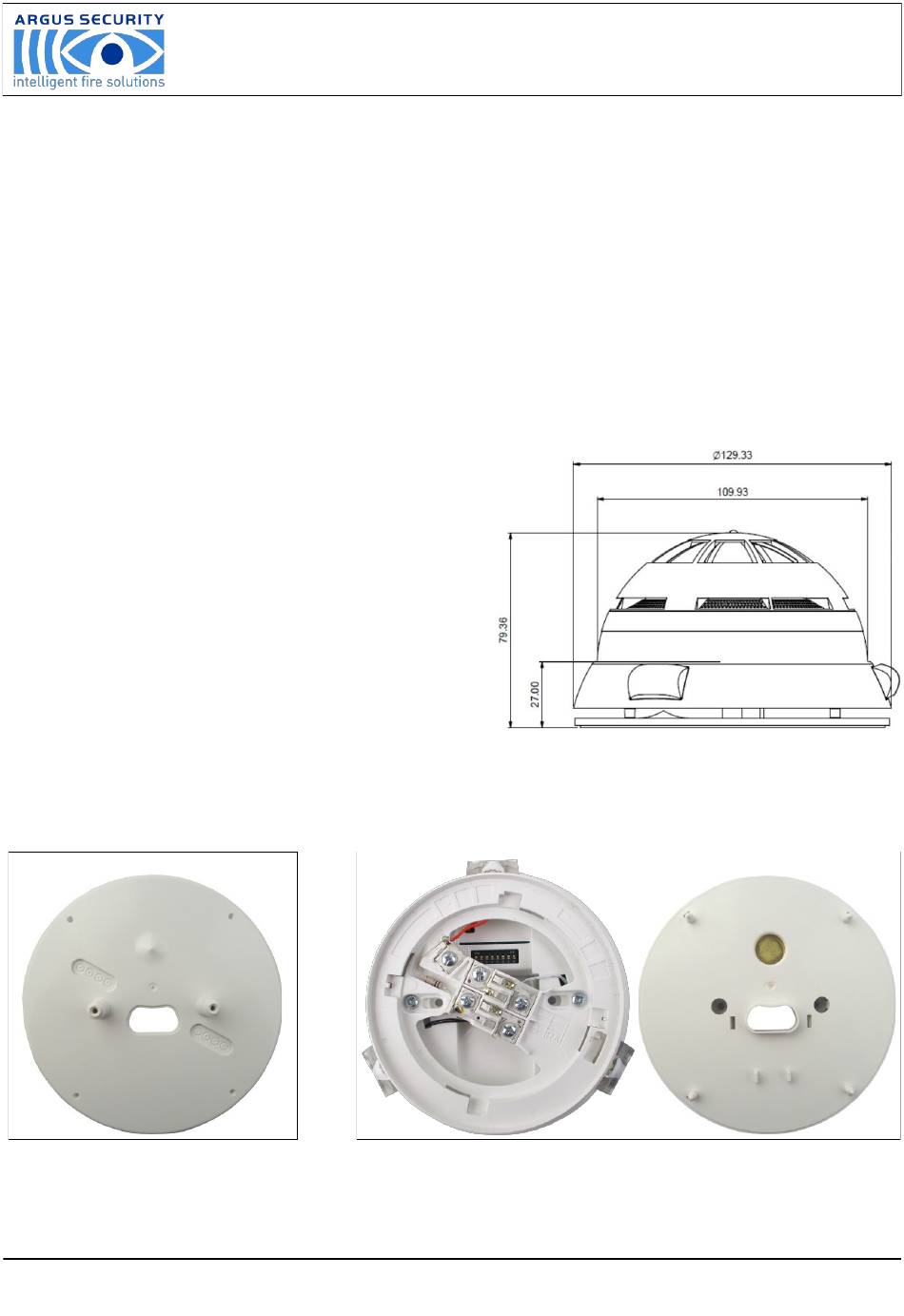

Ceiling mounting bracket (picture 1)
1. Sound diffuser cone.
2. Loop cables passage.
3. Pre-cut holes for screwing the bracket to the ceiling.
4. Fixing pins.
Base sounder (picture 2)
1. Adaptor base for the host detector.
2. Selector for the acoustic tone, volume and VAD output intensity.
3. Bracket-base sounder screw fixing location.
4. VAD output.
5. Loop cables passage.
6. Acoustic alarm signal outlet.
7. Bracket's pins hosting holes.
Picture 1
1
3
2
4
ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy
VEGA FLEXIPLUS BASE SOUNDER
VEGA FLEXIPLUS BASE SOUNDER + WHITE VAD
VEGA FLEXIPLUS BASE SOUNDER + RED VAD
Vega smoke detector
Vega smoke / temperature detector
Vega temperature detector
Vega smoke detector without isolator
Vega smoke / temperature detector without isolators
Vega temperature detectors without isolators
Picture 2
4
3
4
4
1
2
3
3
6
7
5
4
