Argus Security AC-BS-01 Manual

AC-BS-01
AC-BSB-23W-01
AC-BSB-23R-01
AI-BS-01
AI-BSB-23W-01
AI-BSB-23R-01

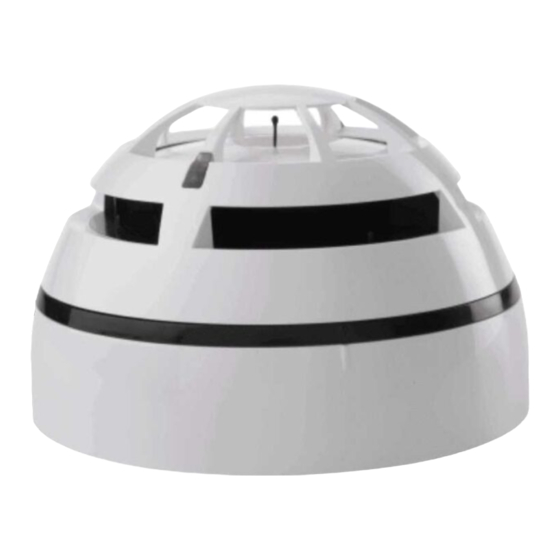

Products compatibility and general description
These products are to be used in conjunction with the following Altair, Altair Lite and Altair Plus detectors:
A1000
(AT5910CPR)
A2000
(AT5910CPR)
A3500
(AT5910CPR)
A1000L
(AT5010CPR)
A2000L
(AT5010CPR)
A3500L
(AT5010CPR)
A1000+
(AT5910CPR)
A2000+
(AT5910CPR)
A3500+
(AT5910CPR)
(In brackets, DOP reference)
These products are compatible only with control panels that use the Vega protocol.
In order to work, these sounder bases require a suitable host detector.
Following the triggering of an alarm condition on the host detector, the Altair Flexiplus base sounder activates its acoustic output, previously
selected through its selector; similarly, Altair Plus Flexiplus base sounders activate the acoustic output, but in this case its pattern is previ-
ously selected from the control panel.
Base sounders equipped with VAD (Visual Alarm Device), in conjunction with the acoustic signal, also emit an alarm visual signal; specifically:
- for AC-BSB-23W-01 and AI-BSB-23W-01 white optical alarm signal
- for AC-BSB-23R-01 and AI-BSB-23R-01 red optical alarm signal.
Product parts

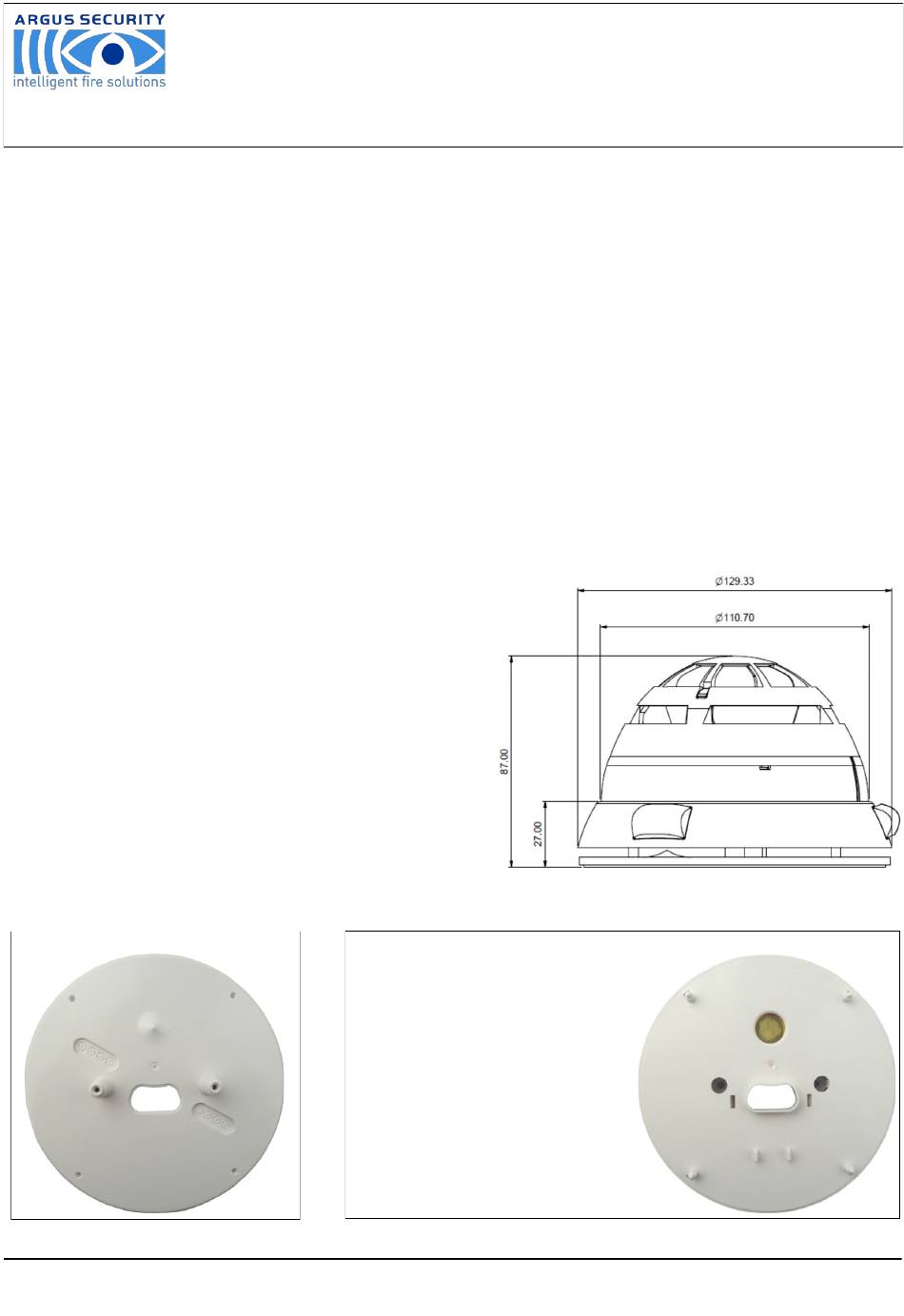

Ceiling mounting bracket (picture 1)
1. Sound diffuser cone.
2. Loop cables passage.
3. Pre-cut holes for screwing the bracket to the ceiling.
4. Fixing pins.
Base sounder (picture 2)
1. Adaptor base for the host detector.
2. Loop cables passage.
3. Selector for the acoustic tone, volume and VAD output intensity (Altair
Flexiplus only).
4. Bracket-base sounder screw fixing location.
5. VAD output.
6. Acoustic alarm signal outlet.
7. Bracket's pins hosting holes.
Picture 1
1
3
2
4
ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy
ALTAIR FLEXIPLUS BASE SOUNDER
ALTAIR FLEXIPLUS BASE SOUNDER + WHITE VAD
ALTAIR FLEXIPLUS BASE SOUNDER + RED VAD
ALTAIR PLUS FLEXIPLUS BASE SOUNDER
ALTAIR PLUS FLEXIPLUS BASE SOUNDER + WHITE VAD
ALTAIR PLUS FLEXIPLUS BASE SOUNDER + RED VAD
Altair smoke detector
Altair smoke / temperature detector
Altair temperature detector
Altair smoke detector without isolators
Altair smoke / temperature detector without isolators AC-BS-01, AC-BSB-23W-01, AC-BSB-23R-01
Altair temperature detector without isolators
Altair Plus smoke detector
Altair Plus smoke / temperature detector
Altair Plus temperature detector
Picture 2
4
3
5
AC-BS-01, AC-BSB-23W-01, AC-BSB-23R-01
AC-BS-01, AC-BSB-23W-01, AC-BSB-23R-01
AC-BS-01, AC-BSB-23W-01, AC-BSB-23R-01
AC-BS-01, AC-BSB-23W-01, AC-BSB-23R-01
AC-BS-01, AC-BSB-23W-01, AC-BSB-23R-01
AI-BS-01, AI-BSB-23W-01, AI-BSB-23R-01
AI-BS-01, AI-BSB-23W-01, AI-BSB-23R-01
AI-BS-01, AI-BSB-23W-01, AI-BSB-23R-01
5
1
3
4
2 4
6
7
5
