Julabo CORIO C Original Operating Manual
Heating immersion circulator, open bath heating circulator, refrigerated circulator
Hide thumbs
Also See for CORIO C:
- Original operating manual (40 pages) ,
- Operating instructions manual (32 pages) ,
- Operating instructions manual (30 pages)
Related Manuals for Julabo CORIO C
Summary of Contents for Julabo CORIO C

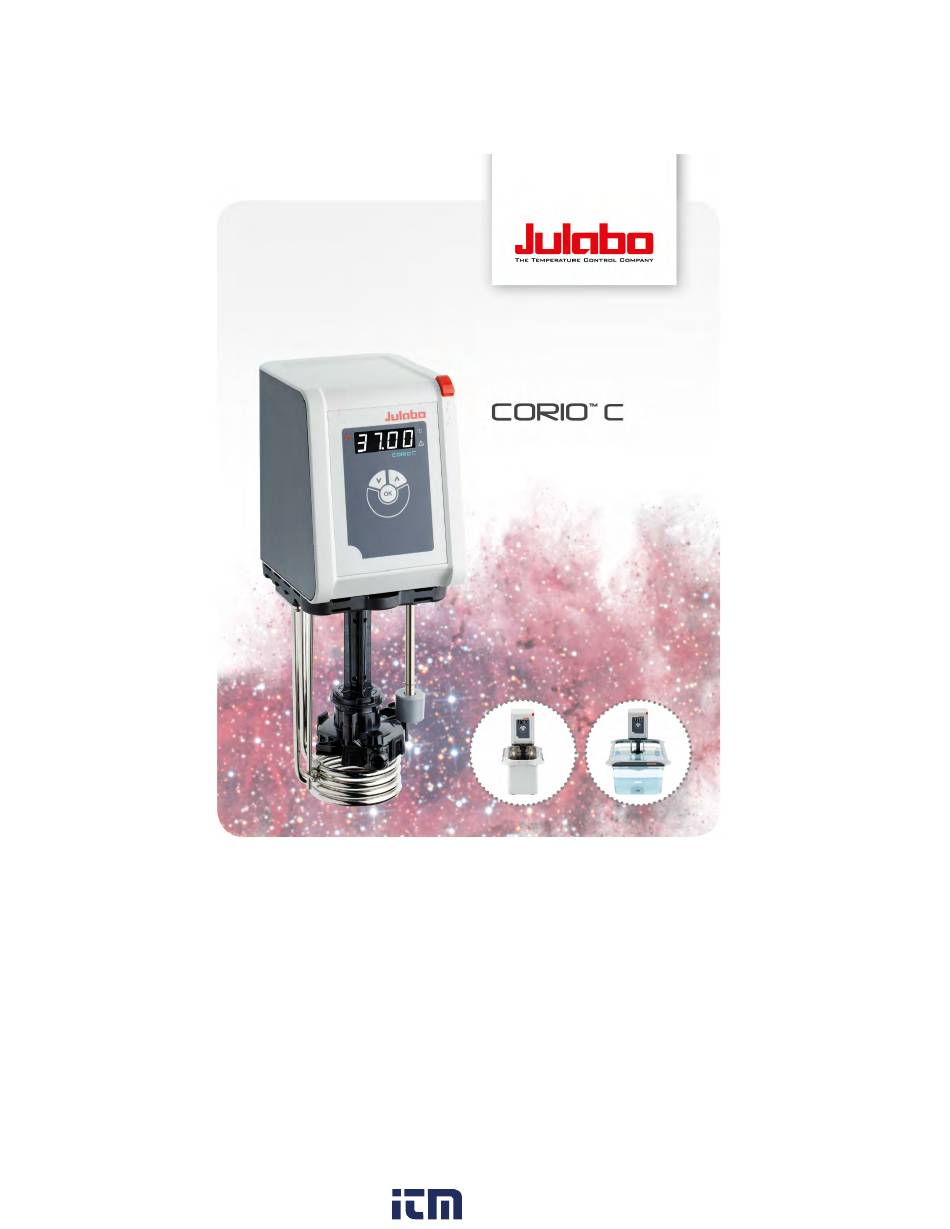

- Page 1 Heating immersion circulator, open bath heating circulator, refrigerated circulator Original operating manual 1.950.0400.en.V05 12/2022 1.800.561.8187 information@itm.com www. .com...
- Page 2 Legal The content of this operating manual is protected by copyright. Information, including texts, images, and other contents may not be reproduced, distributed, transmitted, stored or otherwise used in any form without prior explicit written consent. Illustrations in this operating manual are for illustrative purposes and are not necessarily displayed to scale.
-
Page 3: Table Of Contents
Foreword ..................... 5 About this manual ................6 Original JULABO spare parts ............6 Accessories ..................6 Warnings ..................7 Symbols used .................. 8 Intended use ..................8 Safety ....................9 Safety instructions ................9 Safety symbols ................11 Safety function ................11 Product description................ - Page 4 Maintenance ..................23 Check safety symbols..............23 Test the low liquid level safety function ......... 23 Replace detachable power cord ............ 24 Emptying ..................24 Clean device .................. 25 Device storage ................25 Technical Service ................26 Warranty ..................26 Disposal .....................
-
Page 5: Foreword
Foreword Congratulations! You have made an excellent choice. JULABO would like to thank you for the trust you have placed in our company and products. This operating manual will help you become acquainted with the use of our units. Read the operating manual carefully. Keep the operating manual handy at all times. -
Page 6: About This Manual
Original JULABO spare parts are available directly from JULABO or your specialist dealer. Please note that JULABO cannot provide a warranty service if non-original JULABO spare parts are used. Accessories JULABO offers a wide range of accessories for the devices. Accessories are not described in this manual. 1.800.561.8187 information@itm.com www. -
Page 7: Warnings
About this manual Warnings The manual contains warnings to increase safety when using the device. Warnings must always be observed. A warning sign displayed in signal color precedes the signal word. The signal word, highlighted in color, specifies the severity of the hazard. DANGER This signal word designates a danger with a high level of risk which, if it not prevented, will result in death or serious injuries. -
Page 8: Symbols Used
This section defines the purpose of the unit so that the operator can operate the unit safely and avoid misuse. JULABO heating immersion circulators and open heating bath circulators are designed to control water temperature. Samples in suitable tanks can be temperature-controlled. -
Page 9: Safety
Touching damaged live parts can cause severe electric shocks and lead to injury or even death. • Have damaged insulation and parts of the electrical system immediately repaired by JULABO service technicians or a qualified specialist workshop • Immediately replace damaged power cords •... - Page 10 Safety • Specify and provide personal protective equipment for the respective application. • Use only personal protective equipment that is in good condition and provides effective protection. • Adapt personal protective equipment to the person, e.g., by size. Keep safety symbols legible! Safety symbols on the unit warn of dangers in hazardous areas and are an important part of the unit’s safety equipment.
-
Page 11: Safety Symbols
Safety Safety symbols There are safety symbols included with the device, which should be attached to the device before initial operation. Safety Description symbols Warning of a danger zone. Note operating manual Warning about hot surface Warning of cold surface Read operating manual before switching on Safety function Technical protective devices provide for safe operation. -
Page 12: Product Description

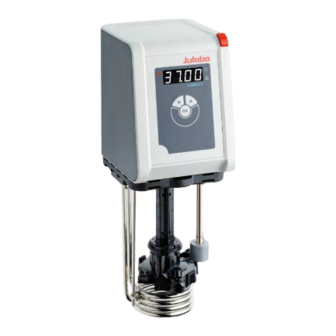

Depending on the device combination and accessories used, the circulators work in a temperature range from +20°C to +100°C. Heating immersion circulator Open heating bath circulator CORIO C circulator for bath tanks up Circulator with transparent bath to 30 l. tank. Example: CORIO C-BT9. -
Page 13: Operating And Functional Elements
Product description Operating and functional elements The following figure shows the operating and functional elements and their position on the unit. Fig. 1: Control and function elements Mains switch Heating control LED LED display Alarm control LED Keypad with display Service key (covered) Mains fuse, resettable Mains fuse, resettable... -
Page 14: Key Description
Product description 5.2.1 Key description The device is operated using the key panel. This is used to control all menu functions and make entries. Function Press [OK] to start a temperature control application or to stop a running temperature control application. Press [OK] to enable a selected function, open a menu option, or confirm a set value. -
Page 15: Technical Data
Product description Technical data Performance specifications measured in accordance with DIN12876. Performance specifications apply at an ambient temperature of 20°C. Grouping of the device acc. to CISPR 11: • The device is an ISM device of group 1, which uses high frequency for internal purposes •... - Page 16 Product description CORIO C Temperature control application Working temperature range °C +20 … +100 Temperature stability °C ± 0.03 Temperature resolution °C 0.01 Temperature control PID1 Temperature setting Digital ATC sensor adjustment 1-point adjustment Pump Volume flow rate at 0 bar...
-
Page 17: Material Of Parts That Come Into Contact With The Medium
Only water with an electrical conductivity of 0.1 to 50 µS is permitted as bath fluid. NOTE No liability accepted for usage of bath fluids that are not suitable! Unsuitable bath fluids that are not approved by JULABO can damage the water bath. • Use bath fluids that are recommended by JULABO •... -
Page 18: Transport And Installation
Transport and installation Water as bath fluid • Water can be used for working temperatures from +5 °C to +90 °C • Recommended: Use only ultrapure or distilled water. • When using ultrapure or distilled water, add 0.1 g Na per liter of water. -
Page 19: Initial Operation
Initial operation Initial operation Connect the device to the power supply This section describes how the circulator is connected as a bridge mounted circulator or heating circulator. The circulator is mounted as a bridge mounted or heating circulator. The power cable is ready for use. 1. -
Page 20: Operation
Operation Once the working temperature has been reached and the sample inserted, the bath fluid level in the bath tank should cover the heating coil of the heating circulator. The unit is filled with bath fluid. Operation Switch on the unit This section describes how to switch on the device. -
Page 21: Start Temperature Control Application
[OK] key. Observe the following for heating circulators: For temperature control applications near or below the ambient temperature: Use a cooling coil or JULABO immersion cooler. Activate autostart function The autostart function makes it possible to start a temperature control application directly using the mains switch or via an intermediate timer. -
Page 22: Setting The Timer
Operation Setting the timer The timer can be used to program the duration of a temperature control application from 0 to 999 minutes. The setpoint temperature is maintained for the programmed time. After the set duration has elapsed, the device switches to standby mode. -
Page 23: Maintenance
Maintenance 3. Simultaneously press the Service key and [Down Arrow] keys until the decimal point flashes. 4. Enter the read reference temperature and confirm with [OK]. The calibration value is applied directly. The display shows <CAL> for confirmation. The entered reference temperature must be within ±5°C of the setpoint temperature, otherwise an error message appears and the entry is ignored. -
Page 24: Replace Detachable Power Cord
See type plate for mains voltage and current value. We recommend only using original JULABO spare parts. Emptying The device must be completely drained if it is to be sent in for technical service or is to be properly disposed of. -
Page 25: Clean Device
Maintenance Clean device The circulator and bath tank, and also a cooling machine if connected, should be cleaned from time to time. In addition to this, the device must be appropriately decontaminated if hazardous substances have been spilled on or into the device. ... -
Page 26: Technical Service
Package the device safely for shipment. Warranty JULABO provides a warranty that the device will function perfectly as long as it is connected and used correctly and as described in the operating manual. The warranty period is one year from the invoice date. -
Page 27: Disposal
Disposal 10 Disposal 10.1 Device disposal When disposing of the device, the applicable country-specific guidelines must be observed. The circulator combination is switched off and disconnected from the mains voltage. 1. Empty the bath tank or cooling machine completely. 2. -
Page 28: Ec Declaration Of Conformity
EC Declaration of Conformity 11 EC Declaration of Conformity 1.800.561.8187 information@itm.com www. .com... -
Page 29: Declaration Of Conformity
UK Declaration of Conformity 12 UK Declaration of Conformity UK Office: JULABO UK Ltd., Unit 7, Casterton Road Business Park, Old Great North Road, Little Casterton, Stamford, PE9 4EJ, United Kingdom, Tel.: +44 1733 265892 1.800.561.8187 information@itm.com www. .com... -
Page 30: Appendix
Appendix 13 Appendix 13.1 Alarms and Warnings If the device is connected to a network and remotely controlled, a status query via interface command will output any pending alarms or warnings as text. Alarm and warning messages are described in the table. If a displayed error code is not described in the table or the error is still pending after switching off and on again, please contact Technical Service. - Page 31 Appendix Excessive power consumption via USB • Check inserted USB stick for defects interface. and replace as necessary. The USB-A interface is not suitable for consumers with a higher required current than the maximum permissible current. -108 The alarm latch of the protective •...
