LEGRAND 0 626 25 Manual

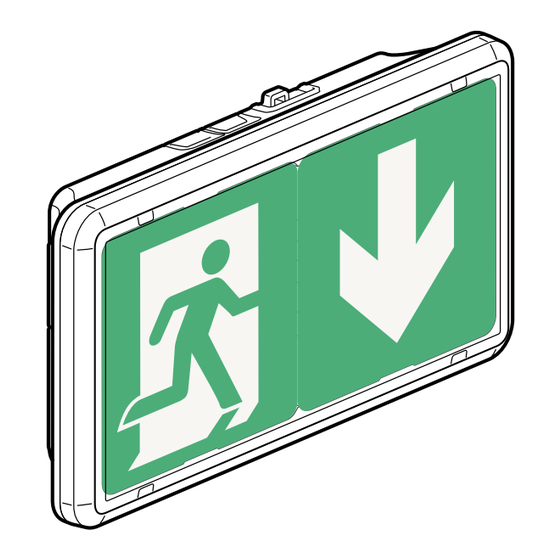

Self-testing addressable self-contained emergency evacuation lighting unit
Hide thumbs Also See for 0 626 25:

Advertisement

Quick Links

Download this manual

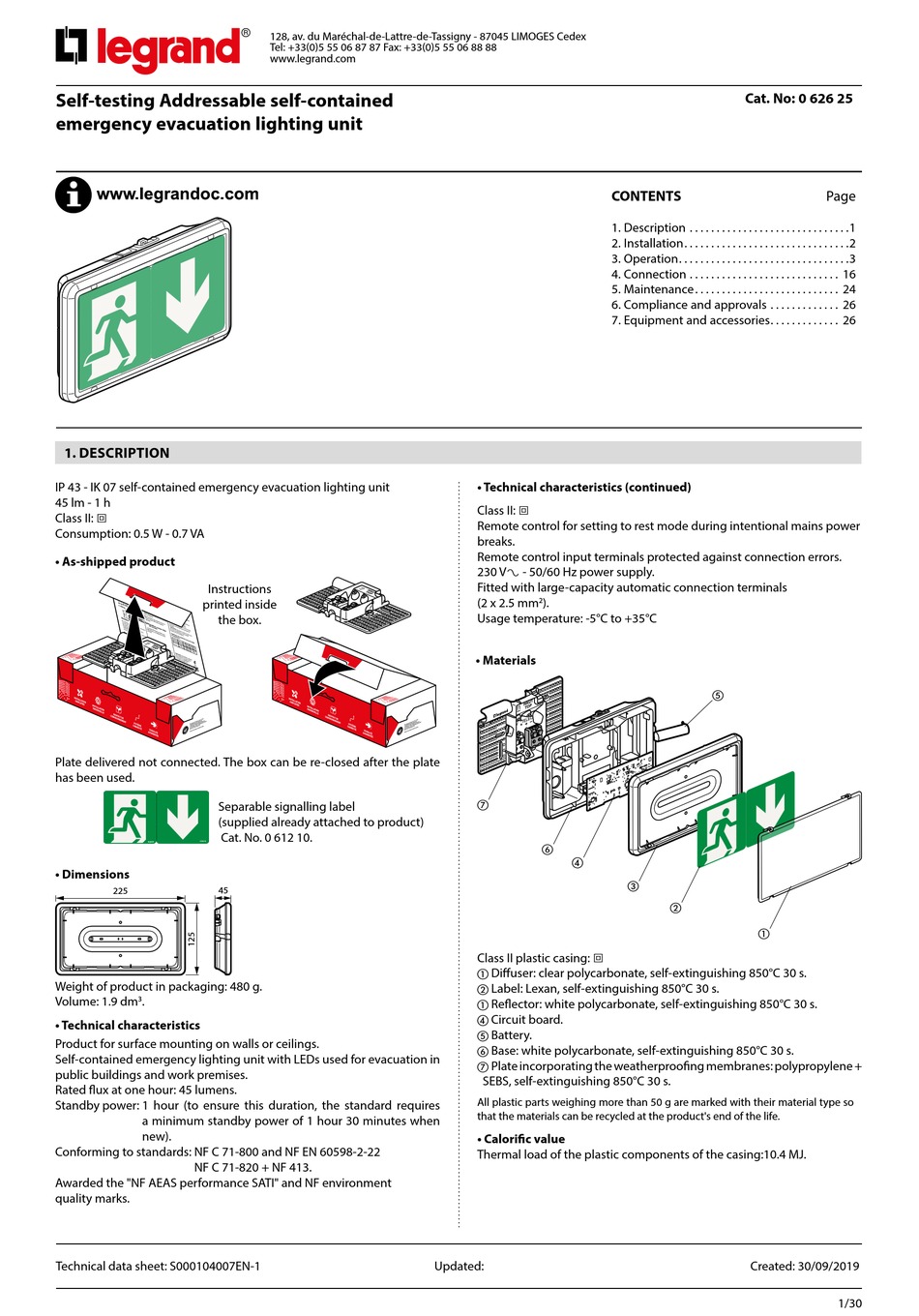

Self-testing Addressable self-contained
emergency evacuation lighting unit
1. DESCRIPTION
IP 43 - IK 07 self-contained emergency evacuation lighting unit
45 lm - 1 h
Class II: 0
Consumption: 0.5 W - 0.7 VA
• As-shipped product
Instructions
printed inside
the box.
Plate delivered not connected. The box can be re-closed after the plate
has been used.
Separable signalling label
(supplied already attached to product)
Cat. No. 0 612 10.
0 612 10
• Dimensions
45
225
Weight of product in packaging: 480 g.
Volume: 1.9 dm
.
3
• Technical characteristics
Product for surface mounting on walls or ceilings.
Self-contained emergency lighting unit with LEDs used for evacuation in
public buildings and work premises.
Rated flux at one hour: 45 lumens.
Standby power: 1 hour (to ensure this duration, the standard requires
a minimum standby power of 1 hour 30 minutes when
new).
Conforming to standards: NF C 71-800 and NF EN 60598-2-22
NF C 71-820 + NF 413.
Awarded the "NF AEAS performance SATI" and NF environment
quality marks.
Technical data sheet: S000104007EN-1
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 Fax: +33(0)5 55 06 88 88
www.legrand.com
Updated:
CONTENTS
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6. Compliance and approvals . . . . . . . . . . . . . 26
7. Equipment and accessories. . . . . . . . . . . . . 26
• Technical characteristics (continued)
Class II: 0
Remote control for setting to rest mode during intentional mains power
breaks.
Remote control input terminals protected against connection errors.
230 VA - 50/60 Hz power supply.
Fitted with large-capacity automatic connection terminals
(2 x 2.5 mm
).
2
Usage temperature: -5°C to +35°C
• Materials
Class II plastic casing: 0
Diffuser: clear polycarbonate, self-extinguishing 850°C 30 s.
Label: Lexan, self-extinguishing 850°C 30 s.
Reflector: white polycarbonate, self-extinguishing 850°C 30 s.
Circuit board.
Battery.
Base: white polycarbonate, self-extinguishing 850°C 30 s.
Plate incorporating the weatherproofing membranes: polypropylene +
SEBS, self-extinguishing 850°C 30 s.
All plastic parts weighing more than 50 g are marked with their material type so
that the materials can be recycled at the product's end of the life.
• Calorific value
Thermal load of the plastic components of the casing:10.4 MJ.
Cat. No: 0 626 25
Page
Created: 30/09/2019
1/30
