CS35H17B32-17.5hp Briggs & Stratton 805mm (32") Cut
CS35H17B38-17.5hp Briggs & Stratton 955mm (38") Cut
CS35H17BP32-17.5hp Pro Briggs & Stratton 805mm (32") Cut
CS35H17BP38-17.5hp Pro Briggs & Stratton 955mm (38") Cut
CS35H15p32-15.0hp PowerBOSS 805mm (32") Cut
DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN
NOTE: Bring this Manual when Service & or Warranty work is required.
http://www.coxmowers.com.au/warranty-registration/

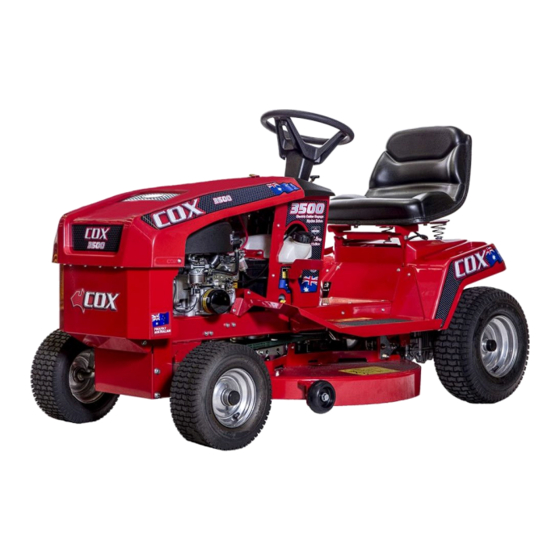

RIDE-ON MOWER
OWNER/OPERATORS MANUAL
ILLUSTRATED PARTS LIST
Model A18217K
Model A18218L
READ THIS MANUAL BEFORE OPERATING MACHINE
THIS MANUAL ARE FOLLOWED
REGISTER YOUR WARRANTY ONLINE
Incl

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3500 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for COX 3500 Series

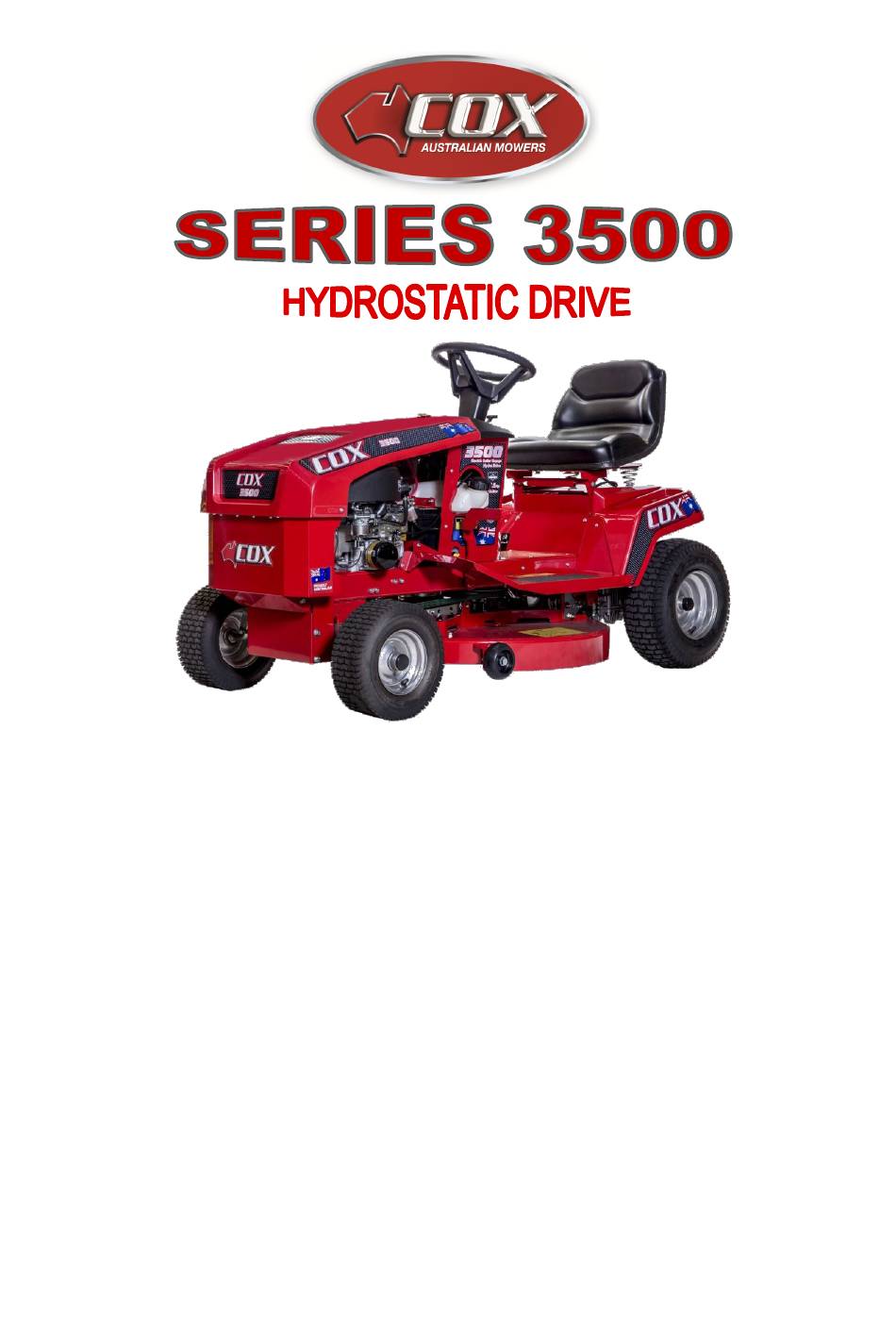

  • Page 1 RIDE-ON MOWER OWNER/OPERATORS MANUAL Incl ILLUSTRATED PARTS LIST Model A18217K CS35H17B32-17.5hp Briggs & Stratton 805mm (32”) Cut CS35H17B38-17.5hp Briggs & Stratton 955mm (38”) Cut CS35H17BP32-17.5hp Pro Briggs & Stratton 805mm (32”) Cut CS35H17BP38-17.5hp Pro Briggs & Stratton 955mm (38”) Cut Model A18218L CS35H15p32-15.0hp PowerBOSS 805mm (32”) Cut READ THIS MANUAL BEFORE OPERATING MACHINE...
  • Page 2 OWNERS INFORMATION MACHINE CODE NO:__________________________ SERIAL NO:_______________________ Located on label inside transmission housing ENGINE MODEL NO:______________TYPE____________ CODE_______________ DATE OF PURCHASE:__________________________________ ISSUED TO: OWNERS NAME: ADDRESS: STATE: TOWN/CITY: ISSUED BY: AUTHORISED DEALER/ DISTRIBUTOR: ADDRESS: STATE: TOWN/CITY: PRE DELIVERY CHECK LIST Check parts  Assemble ...
  • Page 3 SAFETY INSTRUCTIONS  Read, understand, & follow all instructions in  It is advisable to wear suitable eye protection the Owner/Operators manual. when operating a mower.  Know the controls and how to stop the  Mow only in daylight or good artificial light. engine quickly in an emergency.
  • Page 4 INTRODUCTION THANK YOU , for purchasing a COX Hydrostatic Drive, SERIES 3500 Ride-on Mower. Proudly Manufactured by Cox Industries (Australia) Pty. Ltd.. READ THIS MANUAL carefully to ENSURE UNDERSTAND considered as misuse for which the learn how to operate safely and...
  • Page 5 GENERAL SAFETY INSTRUCTIONS CONT. Preparation Engage hydrostatic drive a b n o r m a l l y . ( C h e c k slowly; immediately). While operating, always wear iii) Always keep hydrostatic drive D i s e n g a g e d r i v e substantial footwear (not open operating,...
  • Page 6 UNPACKING INSTRUCTIONS Unpacking Instructions Cut and remove the straps restraining the tractor to the ends of the shipping crate. Push the transaxle transmission pump Inspect the shipping crate and contents for bypass lever fully rearward to engage the damage. Remove the end of the shipping crate transmission pump and allow the tractor to Position the shipping crate on a firm flat adjacent to front of the tractor.
  • Page 7 PRE-DELIVERY PARTS EXPLODED VIEW 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 7...
  • Page 8 Push LEVER fully forward to manufacturers engines The Instruments, engage the engine choke fully. fitted to Cox products. Pull LEVER back so front edge of the Controls and SAFETY SWITCHES LEVER is in line with the fast (rabbit) their functions are...
  • Page 9 OPERATING INSTRUCTIONS CONT. Seat Adjustment - Loosen four engine owners manual engine speed, ¾ to full speed for seat mounting bolts and slide instructions on checking engine oil the best mowing finish and for seat into desired position in slots level) engine and transmission cooling.
  • Page 10 MAINTENANCE INSTRUCTIONS It is the owner’s responsibility to ensure TO ADJUST STEERING CHAIN- Adjust chain the Mowing Attachment onto them. Loosen the that all-periodical checks, necessary by loosening the four bolts which hold the 2 short screws located together on the front of adjustments, services and repairs are steering idler shaft mounting brackets (AM255) the rear suspension mount.
  • Page 11 GENUINE SPARE PARTS - Always 8mm BOLT/NUT 15Nm (11lbf ft) cover machine with plastic or vinyl type material. Genuine COX Spare Parts. Use of non-genuine 10mm NUT 44Nm (32lbf ft) COX spare parts will void your warranty. 12mm NUT 53Nm (39lbf ft)
  • Page 12 6 MONTHS OR 50 HOURS which ever occurs first Change engine oil Check steering chain and sprockets for wear, adjust if If fitted clean engine exhaust spark arrester required Check engine air cleaner & foam pre-cleaner, service if req * Check mowing attachment electric clutch brake air gap, adjust if req.
  • Page 13 18 MONTHS OR 150 HOURS which ever occurs first Change engine oil. Check battery condition, service if required. If fitted clean engine exhaust spark arrestor. Check for loose fasteners, tighten if required. Check engine air cleaner & foam pre-cleaner, service if Check belts for wear or damage, replace if required.
  • Page 14 *Service more often under dusty conditions, or where air borne debris is present DATE HOURS......DEALER..........We are proud that you have purchased a Cox product and urge you to follow these instructions to obtain the maximum life for your machine. If in doubt check with your supplier.
  • Page 15 Dealer. Due to COX INDUSTRIES on-going commitment to product improvement, we reserve the right to change at any time, product specifications, configurations and company policies. 6 November 2019...
  • Page 16 PARTS LIST - BODY - BONNET, MUDGUARD, FRONT COVER ITEM PART NUMBER DESCRIPTION SH0616M Screw, Hex, M 6x 16, Pc4.6 NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 pl W08MN Washer, Flat, Bright, M 8x 17x1, 2 NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 WS050216 Washer, Lock, Spring, 5/16"X1/8"X1/16"l BHSSM6X16...
  • Page 17 Screw, Button, Hex Soc, M 6x 12, Pc10.9 BHSSM6X16 Screw, Button, Hex Soc, M 6x 16, Pc10.9 DEC180 Badge, Bonnet DEC425 Decal, Cox, 250x 80 DEC442 Decal, 3500, Bonnet, Side LH DEC443 Decal, 3500, Bonnet, Side RH DEC36217E Decal, Caution, Hot Surface...
  • Page 18 EXPLODED VIEW - BODY - SEAT 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 18...
  • Page 19 PARTS LIST - BODY - SEAT ITEM PART NUMBER DESCRIPTION W051218 Washer, Flat, Bright NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 W05M202 Washer, Flat, Bright, 5/16"X3/4"X14g SH0820M Screw, Hex, M 8x 20, Pc8.8 A179219S Cover, Transaxle, Hydro A140210 Seat AM16512F Switch, Seat, Nc, Flange, Bolt Mtg SP1PNCSM...
  • Page 20 EXPLODED VIEW - BODY - CONSOLE 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 20...
  • Page 21 PARTS LIST - BODY - CONSOLE ITEM PART NUMBER DESCRIPTION A16801019A Bracket, Solenoid /Hourmeter AM159 Solenoid N04C Nut, Hex, Unc, 1/4", Gr5 SH0616M Screw, Hex, M 6x 16, Pc4.6 W06MN Washer, Flat, Bright, M 6x 12.5x1.2 NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 W05MN Washer, Flat, Bright, M 5x 10x1.0 NM5NT...
  • Page 22 EXPLODED VIEW - ENGINE ANCILLARY 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 22...
  • Page 23 PARTS LIST - ENGINE ANCILLARY ITEM PART NUMBER DESCRIPTION A179221 Control, Speed, Engine, B&S, L= 510 BHSSM5X12 Screw, Button, Hex Soc, M 5 X 12, Pc10.9 W05MN Washer, Flat, Bright, M 5x 10x1.0 NM5NT Nut, Hex, Nyloc, Thin, M5, Pc6 W052003 Washer, Flat, Black, 5/16"X1-1/4"X3 W08MN...
  • Page 24 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 24...
  • Page 25 PARTS LIST - WIRING ITEM PART NUMBER DESCRIPTION Engine Battery, MFU1, 9pl, 240cca 15235 Lead, Battery, Black, 3term 89082 Lead, Battery, Red, L=200 AM159 Soleniod AM265 Lead, Battery, Red, L=490 A179072 Harness, Wiring, Main A182485 Harness, Engine 17.5HP Professional B&S ONLY Fuse, Blade, 15 Amp, Blue 13125 Switch, Key, 3 Posn, Magneto, 6 Term...
  • Page 26 EXPLODED VIEW - DRIVE CONTROLS 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 26...
  • Page 27 PARTS LIST - DRIVE CONTROLS ITEM PART NUMBER DESCRIPTION W06MN Washer, Flat, Bright, M 6x 12.5x1.2 NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 B0845M Bolt, Hex, M 8x 45, Pc8.8 W052003 Washer, Flat, Black, 5/16"X1-1/4"X3 W08MN Washer, Flat, Bright, M 8x 17x1, 2 NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 B0860M...
  • Page 28 EXPLODED VIEW - DRIVE 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 28...
  • Page 29 PARTS LIST - DRIVE ITEM PART NUMBER DESCRIPTION A179012 Transaxle, Hydro, K46DZ B0845M Bolt, Hex, M 8x 45, Pc8.8 W052003 Washer, Flat, Black, 5/16"X1-1/4"X3 W08MN Washer, Flat, Bright, M 8x 17x1, 2 NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 B0860M Bolt, Hex, M 8x 60, Pc8.8 RP01...
  • Page 30 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 30...
  • Page 31 PARTS LIST - TRANSAXLE - TUFF TORQ K46dz Transaxle 26776120002 Nut 12 168T2024250 Vent Valve 1A646031570 Diff Gear Kit 19216324360 Magnet 28 * 3.5 1A646033540 Final Pinion Gear (10t 168T2099250 Pump Shaft/Bearing Kit 1A646033250 Final Pinion Collar 19215427281 Spring 25 1A646033410 Reduction Shaft 1A646089510...
  • Page 32 EXPLODED VIEW- STEERING 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 32...
  • Page 33 PARTS LIST - STEERING ITEM PART NUMBER DESCRIPTION A163028Z Shaft, Steering, Lower Circlip, Ext, "E"Type W092016 Washer, Flat, Bright, 9/16" X 1+1/4" X 16g 89100 Fastener, Push On 89097 Steering Shaft Yoke W08MN Washer, Flat, Bright, M 8x 17x1, 2 NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 A179025Z...
  • Page 34 EXPLODED VIEW - WHEELS 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 34...
  • Page 35 PARTS LIST - WHEELS ITEM PART NUMBER DESCRIPTION W122414 Washer, Flat, Bright, 3/4"X1-1/2"X 14g Circlip, Ext, 'E' Type A139032 Wheel, 13x500 BB204212N Bearing, Ball Valve, Tubeless, Snap-In, Tr412, C1 Core+Vc3 Cap TT13x 500-6SS Tyre, Tubeless, 13x 5.00- 6, 4ply, Turf Tread STU13X500-6SS Tube (Optional) AM021...
  • Page 36 EXPLODED VIEW - MOWER SUSPENSION 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 36...
  • Page 37 PARTS LIST - MOWER SUSPENSION ITEM PART NUMBER DESCRIPTION SH0616M Screw, Hex, M 6x 16, Pc4.6 NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 Circlip, Ext, "E"Type W08MN Washer, Flat, Bright, M 8x 17x1, 2 NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 RP04 Pin, 'R' A179081Z...
  • Page 38 EXPLODED VIEW - CA18016G 32” CUTTER COMPONENTS 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 38...
  • Page 39 PARTS LIST - 32” CUTTER COMPONENTS ITEM PART NUMBER DESCRIPTION A180003B Housing, Bearing BB255215NN Bearing, Ball NM10NT Nut, Hex, Nyloc, Thin, M10, Pc6 AM07604A Disc, Cutter A180025 Sub-Assy, Spindle Spindle A180013Z Shield, Bearing BB306216NN Bearing, Ball NM10NT Nut, Hex, Nyloc, Thin, M10, Pc6 SH1020M Screw, Hex, M10 X 20, Pc8.8 SKIT54N...
  • Page 40 EXPLODED VIEW - CA18016G 32” CUTTER ANCILLARY COMPONENTS 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 40...
  • Page 41 Spring, Torsion, Deflector A121512 Grommet, Blanking A170013Z Pin, 11.1dia, L=240 A170015Z Pin, 11.1dia, L=215 A180009Z Frame, Cradle, Idler AM259 Deflector, Cox Logo AM274 Fastener, Pushon A180019Z Clamp, Mount, Suspension, Rear SH1030M10.9 Screw, Hex, M10x 30, Pc10.9 PIFBB06 Idler, Flat A180011Z...
  • Page 42 EXPLODED VIEW - CA18116G 38” CUTTER COMPONENTS 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 42...
  • Page 43 PARTS LIST - 38” CUTTER COMPONENTS ITEM PART NUMBER DESCRIPTION A181023T Frame, Reinforce SH1035M Screw, Hex, M10 X 35 NM10NT Nut, Hex, Nyloc, Thin, M10, Pc6 A181030 Sub-Assy, Spindle Spindle A181013Z Shield, Bearing BB256217N Bearing, Ball A152013R Disc, Cutter BHSSM10X25 Screw, Button, Hex Soc, M10x 25, Pc10.9 NM10NT Nut, Hex, Nyloc, Thin, M10, Pc6...
  • Page 44 EXPLODED VIEW - CA18116G 38” CUTTER COMPONENTS 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 44...
  • Page 45 PARTS LIST - 38” CUTTER ANCILLARY COMPONENTS ITEM PART NUMBER DESCRIPTION NM10NT Nut, Hex, Nyloc, Thin, M10, Pc6 SH1030M10.9 Screw, Hex, M10x 30, Pc10.9 A100003 Spring, Torsion, Deflector A121512 Grommet, Blanking A170013Z Pin, 11.1dia, L=240 PIFBB06 Idler, Flat A180011Z Frame, Slide, Idler AM230 Bush - Plastic W102705...
  • Page 46 DEC487 Decal, Deck, Do Not Step DEC488 Decal, Deck, 32” DEC489 Decal, Deck, 38” DEC180 Badge, Bonnet DEC442 Decal, Cox, Bonnet, Side LH DEC443 Decal, Cox, Bonnet, Side RH DEC425 Decal, Cox DEC314 Decal, Control, Speed, Engine DEC34317E Decal, Clutch/Brake...
  • Page 47 6 November 2019 Owners Manual for Model A18217K Hydro Drive Page 47...
  • Page 48 70 Landseer Street Acacia Ridge Qld 4110 Australia PH 07 3323 2222 FAX 07 3344 6233 Web Site Address: www.coxmowers.com.au Email: sales@coxmowers.com.au...
