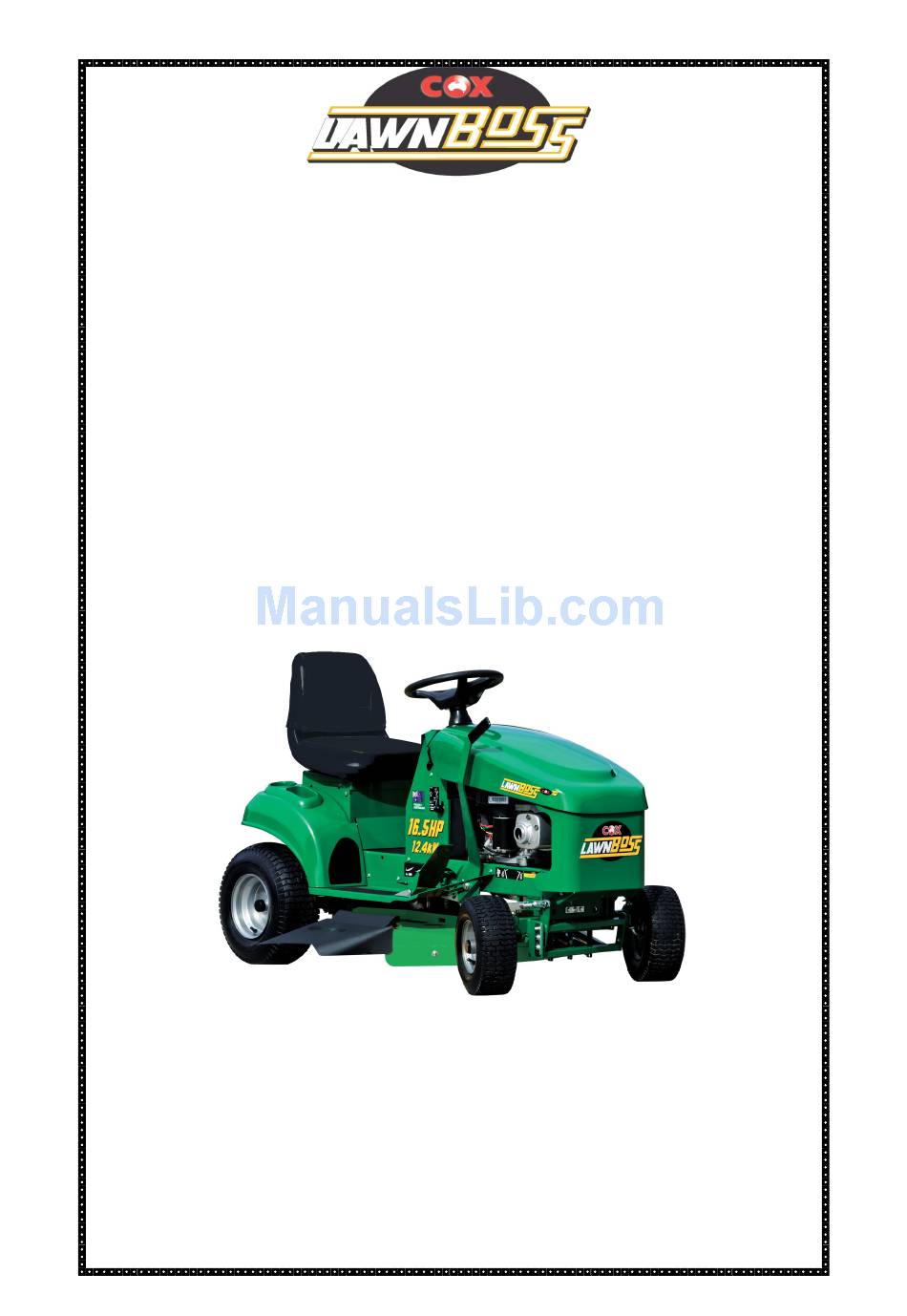

COX A14011M Owner's/Operator's Manual

Ride-on mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

R
-O
M
IDE
N
OWER
Models
A14011M
16.5HP, 19.5HP B&S 32" & 38"
A14111M
16HP HONDA 32" & 38"
OWNER/OPERATORS MANUAL
READ THIS MANUAL BEFORE OPERATING MACHINE
DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN
THIS MANUAL ARE FOLLOWED
NOTE: Bring this Manual when Service & or Warranty work is required.
Revised 05/04/2013
