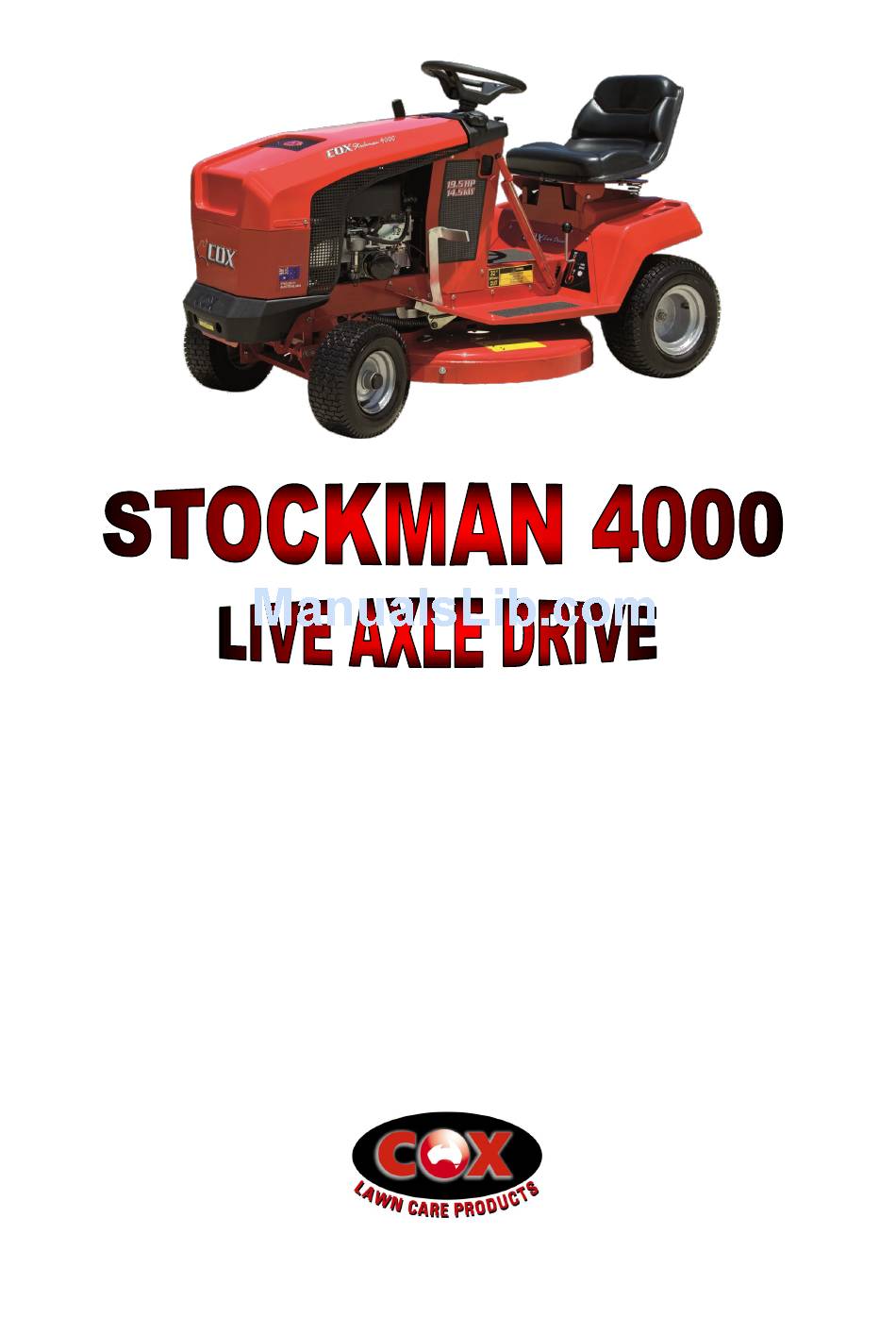

RIDE-ON MOWER
OWNER/OPERATORS MANUAL
Model A16314E
Live Axle Drive
CS4L17B32-17.5hp Briggs & Stratton 805mm (32") Cut
CS4L17B38-17.5hp Briggs & Stratton 960mm (38") Cut
CS4L16H32-16.0hp Honda 805mm (32") Cut
READ THIS MANUAL BEFORE OPERATING MACHINE
DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN THIS MANUAL ARE FOLLOWED
NOTE: Bring this Manual when Service & or Warranty work is required.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stockman 4000 A16314E and is the answer not in the manual?

Questions and answers

Related Manuals for COX Stockman 4000 A16314E

Summary of Contents for COX Stockman 4000 A16314E

  • Page 1 RIDE-ON MOWER OWNER/OPERATORS MANUAL Model A16314E Live Axle Drive CS4L17B32-17.5hp Briggs & Stratton 805mm (32”) Cut CS4L17B38-17.5hp Briggs & Stratton 960mm (38”) Cut CS4L16H32-16.0hp Honda 805mm (32”) Cut READ THIS MANUAL BEFORE OPERATING MACHINE DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN THIS MANUAL ARE FOLLOWED NOTE: Bring this Manual when Service &...

  • Page 2: Owners Information

    OWNERS INFORMATION COX MODEL NO: _________________________________ COX INVENTORY CODE NO: ________________________ COX SERIAL NO:_______________________ Located on Label inside Transmission Housing B&S ENGINE MODEL NO:______________TYPE:____________ CODE:_______________ Located on Engine refer Engine Owners Manual HONDA ENGINE MODEL NO:____________SERIAL NO:_______________ Located on Engine refer Engine Owners Manual...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS   Read, understand, & follow all instructions in the Never mow while barefoot or wearing open sandals Owner/Operators manual. or thongs. Wear long trousers and heavy shoes.  Know the controls and how to stop the engine ...
  • Page 4 A16314E PRE-DELIVERY INSTRUCTIONS INTRODUCTION: ASSEMBLE SEAT MOUNT & SEAT SPRINGS TO MOWER The purpose of this procedure is to ensure the dealer/ (see page 5 for exploded view) distributor has assembled & made the necessary checks, & Install the two seat springs using the screws, washers, nuts, adjustments, before mower...
  • Page 5 ITEM PART NO DESCRIPTION A163064R Cover, Transmission, Red NM8NT Nut, Hex, Nyloc, Thin, M 8,Pc6,Znpl SH0820M Screw ,Hex, M 8x 20,Pc8.8,Znpl W051218 Washer, Flat, 5/16"X3/4"X18g,Znpl Sub Assembled Seat SH0825M Screw, Hex ,M 8x 25,Pc8.8,Znpl A163060 Spring, Conical, Seat, Heavy W05m202 Washer, Flat 5/16"X3/4"X14g SW13 Wheel,Steering,13",W/ Cover...

  • Page 6: Operating Instructions

    Unleaded fuel is recommended by all manufacturers of engines TO DRIVE FORWARD/REVERSE: fitted to Cox products. Engine speed is regulated by the engine speed control, set DRIVE PRESSURE engine speed control to desired engine power. Press down on...

  • Page 7: Maintenance Instructions

    GENUINE SPARE PARTS: Always use Genuine Cox Factory Made 8. CLUTCH PLATE ADJUSTMENT: Periodically it will be found Spare Parts. Use of non-genuine COX spares will void your warranty. necessary to adjust the clutch plates as the clutch cone wears. Carry SAFETY FIRST: The use of any mechanical device can cause injury if out this operation, with engine off and cutter in the engaged position.

  • Page 8: Maintenance Schedule

    MAINTENANCE SCHEDULE BEFORE EACH USE BEFORE EACH USE BEFORE EACH USE Check engine oil level, adjust if required Check for loose fasteners, tighten if required Check engine air cleaner foam pre-cleaner, service if required Lubricate stub axles Check engine rotating screen/finger guard, clean if required Lubricate Drive Chain Check operation of safety switches, service if required Check mowing attachment cutter blades, bolts, nuts, disc/s,...
  • Page 9 9 MONTHS OR 75 HOURS WHICH EVER OCCURS F 9 MONTHS OR 75 HOURS WHICH EVER OCCURS F 9 MONTHS OR 75 HOURS WHICH EVER OCCURS FIRST IRST IRST Change engine oil if operating under heavy load or high ambient Check for loose fasteners, tighten if required temperature Check battery condition, service if required...
  • Page 10 21 MONTHS OR 175 HOURS WHICH EVER OCCURS FIRST 21 MONTHS OR 175 HOURS WHICH EVER OCCURS FIRST 21 MONTHS OR 175 HOURS WHICH EVER OCCURS FIRST Change engine oil if operating under heavy load or high ambient Check mowing attachment cutter blades, bolts, nuts, disc/s, housing , temperature and guards for wear or damage, replace if required Check engine air cleaner foam pre-cleaner, service if required *...
  • Page 11 DATE HOURS......DEALER..........We are proud that you have purchased a Cox product and urge you to follow these instructions to obtain the maximum life for your machine. If in doubt check with your supplier. OWNERS MANUAL FOR MODEL A16314E rev 1...
  • Page 12 EXPLODED VIEW: A16314E BODY- SEAT & STEERING WHEEL OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 12...
  • Page 13 PARTS LIST: A16314E BODY- SEAT & STEERING WHEEL ITEM PART NO DESCRIPTION A163064R Cover, Transmission, Red NM8NT Nut, Hex, Nyloc, Thin, M 8,Pc6 SH0820M Screw ,Hex, M 8x 20,Pc8.8 W051218 Washer, Flat, 5/16"X3/4"X18g A163056 Seat SH0825M Screw, Hex ,M 8x 25,Pc8.8 A163060 Spring, Conical, Seat, Heavy W05m202...
  • Page 14 EXPLODED VIEW: A16314E BODY- SEAT, COVER & MUDGUARD OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 14...
  • Page 15 PARTS LIST: A16314E BODY- SEAT, COVER & MUDGUARD ITEM PART NUMBER DESCRIPTION A163012 Mudguard, Rear, Red W041216 Washer, Flat, Bright, 1/4"X3/4"X16g NM6NT Nut, Hex, Nyloc, Thin, M 6,Pc6 SPPK6X20 Screw, Pan BHSSM6X16 Screw, Button, Hex Soc, M 6x 16,Pc10.9 SH0616M Screw, Hex, M 6x 16,Pc4.6 A140110 Seat...
  • Page 16 EXPLODED VIEW: A16314E BODY- BONNET & BUMPER OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 16...
  • Page 17 PARTS LIST: A16314E BODY- BONNET & BUMPER ITEM PART NUMBER DESCRIPTION A163066R Bar, Bumper, Red Sub-Assy, Bonnet, Sman 4000 A163014 Bumper, Front, Black SH0816M Screw, Hex, M 8x 16, Pc8.8 NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 SH0620M Screw, Hex, M 6x20, Pc4.6 W041216 Washer, Flat, 1/4"X3/4"X16g NHM6...
  • Page 18 EXPLODED VIEW: A16314E BODY- CONSOLE OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 18...
  • Page 19 PARTS LIST: A16314E BODY- CONSOLE ITEM PART NUMBER DESCRIPTION NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 SH0616M Screw, Hex, M 6x 16, Pc4.6 NCM6X1.6X9.5 Nut, Cage, M 6, 1.6 Panel, 9.5sq Hole NCM4X1.6X9.5 Nut, Cage, M 4, 1.6 Panel, 9.5sq Hole BHSSM5X12 Screw, Button, Hex Soc, M 5 X 12, Pc10.9 W05MN...
  • Page 20 EXPLODED VIEW: A16314E BONNET (suit Briggs & Stratton Engine) OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 20...
  • Page 21 Screw, Button, Hex Soc, M 6x 20, Pc10.9 DEC180 Badge, Bonnet DEC240 Decal, Proudly Australian, Red DEC326 Decal, Stockman 4000, Cox, Bonnet DEC330 Decal, Sman 4000, Cox NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 NTF6.3 Nut, Hex Wash, Self-Thread, 6.3...
  • Page 22 EXPLODED VIEW: A16314E BONNET (suit Honda Engine) OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 22...
  • Page 23 Badge, Bonnet New Era DEC240 Decal, Proudly Australian, Red DEC326 Decal, Stockman 4000, Cox, Bonnet DEC330 Decal, Sman 4000, Cox, 240x 75, Red NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 NTF6.3 Nut, Hex Wash, Self-Thread, 6.3 SPPK5X16 Screw, Pan, Pozi2, K 5x 16 W030820 Washer, Flat, Bright, 3/16"...
  • Page 24 EXPLODED VIEW: A16314E BRIGGS & STRATTON ENGINE ANCILLARY OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 24...
  • Page 25 PARTS LIST: A16314E BRIGGS & STRATTON ENGINE ANCILLARY ITEM PART NUMBER DESCRIPTION BHSSM5X12 Screw, Button, Hex Soc, M 5 X 12, Pc10.9 BHSSM5X16 Screw, Button, Hex Soc, M 5 X 16, Pc10.9 W05MN Washer, Flat, Bright, M 5x 10x1.0 NHM5 Nut, Hex, M5 NM5NT Nut, Hex, Nyloc, Thin, M5, Pc6...
  • Page 26 EXPLODED VIEW: A16314E HONDA ENGINE ANCILLARY OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 26...
  • Page 27 PARTS LIST: A16314E HONDA ENGINE ANCILLARY ITEM PART NUMBER DESCRIPTION BHSSM5X12 Screw, Button, Hex Soc, M 5 X 12, Pc10.9 BHSSM5X16 Screw, Button, Hex Soc, M 5x 16, Pc10.9 W05MN Washer, Flat, Bright, M 5x 10x1.0 NHM5 Nut, Hex, M5 NM5NT Nut, Hex, Nyloc, Thin, M5, Pc6 A163039...
  • Page 28 WIRING DIAGRAM BRIGGS AND STRATTON ENGINE OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 28...
  • Page 29 PARTS LIST: A16314E 17.5HP B&S Electrical Components Schematic ITEM PART NUMBER DESCRIPTION Engine, B&S AM16512F Switch, Seat SP1PNCSM Switch, Plunger SKIT132 Switch, Plunger , Inc Cover Battery, Automotive, 12V, CMFU1, 9PL, 240CCA 13125 Switch, Key AM015 Pair, Key, Ignition SH0616M Screw AM159 Solenoid, Starter...
  • Page 30 WIRING DIAGRAM HONDA ENGINE OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 30...
  • Page 31 PARTS LIST: A16314E 16HP Honda Only Electrical Components Schematic ITEM PART NUMBER DESCRIPTION Engine, 16.0hp, V2cyl, Elec, Hon, GXV530 AM16512F Switch, Seat SP1PNCSM Switch, Plunger A163040 Harness, Wiring, Main A163180 Lead, Battery, Black, 3term 13125 Switch, Key Battery, Automotive, 12V, CMFU1, 9PL, 240CCA Regulator/Rectifier, Honda SKIT132 Switch, Plunger, Inc Cover...
  • Page 32 EXPLODED VIEW: A16314E STEERING COMPONENTS OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 32...
  • Page 33 PARTS LIST: A16314E STEERING COMPONENTS ITEM PART NUMBER DESCRIPTION 13012 Bush, Flanged, Nylon AM017C1 Steering Shaft Bush With Collar A163028Z Shaft, Steering, Lower Circlip, Ext, "E"Type, 12idx1.3 Thk W092016 Washer, Flat, Bright, 9/16" X 1+1/4" X 16G 89100 Fastener, Push-on 89097 Steering Shaft Yoke AM25399J...
  • Page 34 EXPLODED VIEW: A16314E REAR AXLE DRIVE COMPONENTS OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 34...
  • Page 35 PARTS LIST: A16314E REAR AXLE DRIVE COMPONENTS ITEM PART NUMBER DESCRIPTION NM6NT AM230 Bush - Plastic NF06CN NM8NT W051218 Washer, Flat RP01 Pin, 'R' TT650X8 Tyre & Tube STU650X8 Tube AM194 AM290 Hand Brake Knob SH0825M Screw AM183 Spring, Extension NS05C Nut, Sqr W102015...
  • Page 36 EXPLODED VIEW: A16314E TRANSMISSION COMPONENTS OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 36...
  • Page 37 PARTS LIST: A16314E TRANSMISSION COMPONENTS ITEM PART NUMBER DESCRIPTION NM8NT SH0825M Screw W05M202 Washer AM024 Flangette NF06CN 90276 Bolt, Pivot, Arm, Clutch WW0616 Washer, Wave 90297 Keeper, Bolt, Pivot NHCM8 Nut, Hex, Conelok BB25SAN Bearing W08MN Washer B0624C Bolt W061216 Washer 9029808H Mount, Adjust, Alignment...
  • Page 38 EXPLODED VIEW: A16314E CLUTCH ARM COMPONENTS OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 38...
  • Page 39 PARTS LIST: A16314E CLUTCH ARM COMPONENTS ITEM PART NUMBER DESCRIPTION A132013B Arm, Clutch BB205215NS Bearing AM072 Sleeve, Spacer, Bearing AM204J3 Clutch Shaft W205505B Washer A132015Z Guide, Belt A132017Z Clamp, Guide, Belt BCHSNM10X40 Bolt NM10NT A132021Z Retainer, Shoe A132019H Shoe GS0830M Screw NHM8 CC2095L...
  • Page 40 EXPLODED VIEW: A16314E CUTTER CONTROL COMPONENTS OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 40...
  • Page 41 PARTS LIST: A16314E CUTTER CONTROL COMPONENTS ITEM PART NUMBER DESCRIPTION NM8NT NM6NT W05M202 Washer AM369 Bush A142104R Link, Drop, Disengagement, Cutter KIT234 Kit, Link, Drag, Attachment, Mowing, Red, Inc Bushes AM369 Bush 90022 Pin, Pivot 13016 90012 Connecting Link Adjuster Bracket SH0825M Screw SH0616M...
  • Page 42 EXPLODED VIEW: A11308F 805mm (32”) MOWING ATTACHMENT ** Optional Accessory—C94 Mulching Kit OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 42...
  • Page 43 AM033I95 Pad, Brake, Cutter PR0205 Rivet AM034H0 Cutter Head Brake Adj Brkt AM035 Spring, Compression, Cutter Brake AM036D9 Roller Plastic AM259 Deflector, Cox Logo AM274 Fastener, Push on, Round B0620C Bolt BCHSNM8X20 Bolt, Cup, Sq Neck NF06CN SH1030M10.9 Screw NM6NT...
  • Page 44 EXPLODED VIEW: A15211M 960mm (38”) MOWING ATTACHMENT 50.2 OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 44...
  • Page 45 PARTS LIST: A15211M 960mm (38”) MOWING ATTACHMENT ITEM PART NUMBER DESCRIPTION NM10NT NCM8X4.75 Nut, Cage A152043Z Axle, Tensioner AM017C1 Steering Shaft Bush With Collar 14025 Boss, Idler WS050216 Washer, Lock, Spring SH0825M Screw PIFBB03 Idler, Flat, Flg, Brg A152017Z Arm, Tensioner, Belt B1090M Bolt Belt, V...
  • Page 46 EXPLODED VIEW: A15211M 960mm (38”) MOWING ATTACHMENT DRIVE COMPONENTS OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 46...
  • Page 47 PARTS LIST: A15211M 960mm (38”) MOWING ATTACHMENT DRIVE COMPONENTS ITEM PART NUMBER DESCRIPTION A152203R Frame, Reinforce, Red A152005B Housing, Bearing, Flange, Short BB205215NS Bearing, Ball A15202012K Kit, Spindle, Flanged, Cutter A118012Z Shield, Bearing BB255215NN Bearing, Ball A152011B Spacer, Disc, Cutter A152013B Disc, Cutter BHSSM10X30...
  • Page 48 Decal, Sman 4000,Cox,Bonnet,Side DEC328 Decal, Sman 4000,Depress To Strart DEC329 Decal, Sman 4000,Brake,Park,Live DEC330 Decal, Sman 4000,Cox,250x 80,Red DEC331 Decal, Sman 4000,Deck,Do Not Step,32” DEC332 Decal, Sman 4000,Deck,Do Not Step,38” OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015...
  • Page 49 OWNERS MANUAL FOR MODEL A16314E rev 1 19 March 2015 Page 49...
  • Page 50 70 Landseer Street Acacia Ridge Qld 4110 Australia PH 07 3323 2222 FAX 07 3344 6233 Web Site Address: www.coxmowers.com.au Email: sales@coxmowers.com.au...
