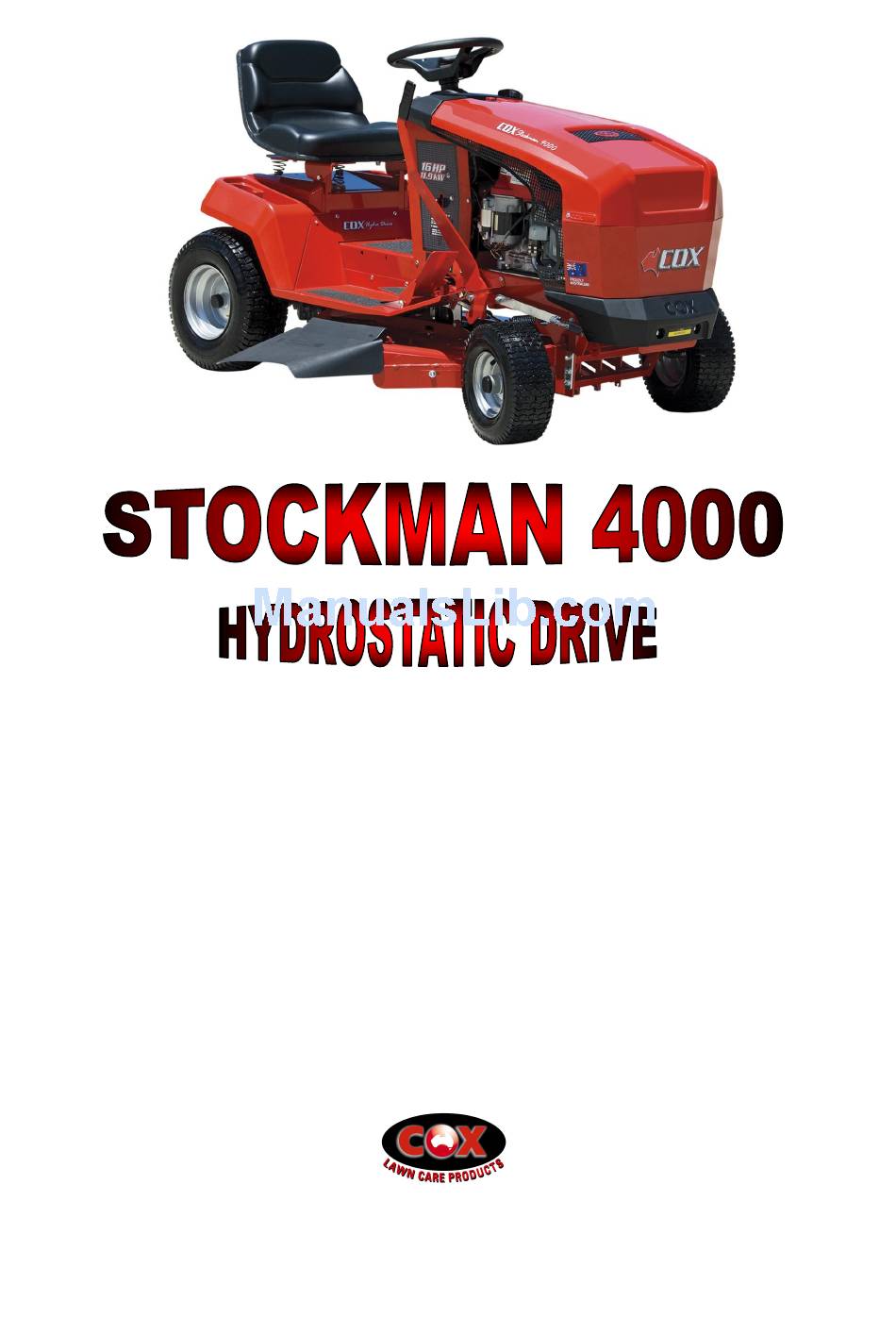

RIDE-ON MOWER
OWNER/OPERATORS MANUAL
Model A16514E
Hydrostatic Drive
CS4H17B32-17.5hp Briggs & Stratton 805mm (32") Cut
CS4H17B38-17.5hp Briggs & Stratton 960mm (38") Cut
CS4H16B32-16.0hp Honda 805mm (32") Cut
READ THIS MANUAL BEFORE OPERATING MACHINE
DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN THIS MANUAL ARE FOLLOWED
NOTE: Bring this Manual when Service & or Warranty work is required.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STOCKMAN 4000A16514E and is the answer not in the manual?

Questions and answers

Related Manuals for COX STOCKMAN 4000A16514E

Summary of Contents for COX STOCKMAN 4000A16514E

  • Page 1 RIDE-ON MOWER OWNER/OPERATORS MANUAL Model A16514E Hydrostatic Drive CS4H17B32-17.5hp Briggs & Stratton 805mm (32”) Cut CS4H17B38-17.5hp Briggs & Stratton 960mm (38”) Cut CS4H16B32-16.0hp Honda 805mm (32”) Cut READ THIS MANUAL BEFORE OPERATING MACHINE DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN THIS MANUAL ARE FOLLOWED NOTE: Bring this Manual when Service &...

  • Page 2: Owner's Information

    OWNERS INFORMATION MACHINE CODE NO:__________________________ SERIAL NO:_______________________ Located on label inside transmission housing B&S ENGINE MODEL NO:______________TYPE____________ CODE_______________ HONDA ENGINE TYPE NO:____________________SERIAL NO____________________ Located on engine refer Engine Owners Manual DATE OF PURCHASE:__________________________________ ISSUED TO: OWNERS NAME: ADDRESS: STATE: TOWN/CITY: ISSUED BY: AUTHORISED DEALER/ DISTRIBUTOR:...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS  Read, understand, & follow all instructions in the  Mow only in daylight or good artificial light. Owner/Operators manual.  Before using, always visually inspect to see that  Know the controls and how to stop the engine blades, bolts and cutter assembly are not worn or quickly in an emergency.

  • Page 4: Engine Oil

    A16514E PRE-DELIVERY INSTRUCTIONS INTRODUCTION: Ensure the fuel tap at the bottom of the LH side of fuel tank is turned to the on position The purpose of this procedure is to ensure the before attempting to start engine. dealer/distributor has made the necessary (Use unleaded fuel only).
  • Page 5 ITEM PART NUMBER DESCRIPTION A165064R Cover, Transmission, Hydro, Red NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6, Znpl SH0820M Screw, Hex, M 8x 20, Pc8.8, Znpl W051218 Washer, Flat, Bright, 5/16"X3/4"X18g A163056 Sub-Assy, Seat SH0825M Screw, Hex, M 8x 25, Pc8.8, Znpl A163060 Spring, Compression, Conical, Seat, Heavy W05M202...

  • Page 6: Starting Machine

    The Disengaging lever is situated on the right hand side by RECOMMENDED FUEL the steering column. Before starting, disengage mowing Unleaded fuel is recommended by all manufacturers of attachment by pulling lever fully to the operator. Before engines fitted to Cox products. engaging mowing attachment ensure cutter height adjustment is in high position.

  • Page 7: Maintenance Instructions

    5/8” UNF NUT 100Nm (74lbf ft) We are proud that you have purchased a Cox product and urge you to follow these instructions to obtain the maximum life for your machine. If in doubt check with your supplier. Owners Manual for Model A16514E rev 1...

  • Page 8: Maintenance Schedule

    MAINTENANCE SCHEDULE BEFORE EACH USE & EVERY 5 HOURS BEFORE EACH USE & EVERY 5 HOURS BEFORE EACH USE & EVERY 5 HOURS Check engine oil level, adjust if required Check for loose fasteners, tighten if required Check engine air cleaner foam pre-cleaner, service if required Lubricate stub axles Check engine rotating screen/finger guard, clean if required Check mowing attachment cutter blades, bolts, nuts, disc/s,...
  • Page 9 9 MONTHS OR 75 HOURS WHICH EVER OCCURS F 9 MONTHS OR 75 HOURS WHICH EVER OCCURS F 9 MONTHS OR 75 HOURS WHICH EVER OCCURS FIRST IRST IRST Change engine oil if operating under heavy load or high ambient Check mowing attachment cutter blades, bolts, nuts, disc/s, housing , temperature and guards for wear or damage, replace if required...
  • Page 10 24 MONTHS OR 200 HOURS WHICH EVER OCCURS FIRST 24 MONTHS OR 200 HOURS WHICH EVER OCCURS FIRST 24 MONTHS OR 200 HOURS WHICH EVER OCCURS FIRST Replace engine oil filter Lubricate stub axles Change engine oil Check steering chain and sprockets for wear, adjust if required Check engine spark plug, clean, adjust, or replace if required Check mowing attachment cutter blades, bolts, nuts, disc/s, housing, If fitted clean engine exhaust spark arrestor...
  • Page 11 EXPLODED VIEW: A16514E BODY- SEAT & STEERING WHEEL ITEM PART NUMBER DESCRIPTION A165064R Cover, Transmission, Hydro, Red NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 SH0820M Screw, Hex, M 8x 20, Pc8.8 W051218 Washer, Flat, Bright, 5/16"X3/4"X18g A163056 Sub-Assy, Seat SH0825M Screw, Hex, M 8x 25, Pc8.8 A163060...
  • Page 12 EXPLODED VIEW: A16514E BODY- SEAT, COVERS & MUDGUARD Owners Manual for Model A16514E rev 1 12 February 2016 Page 12...
  • Page 13 PARTS LIST: A16514E BODY- SEAT, COVERS & MUDGUARD ITEM PART NUMBER DESCRIPTION NCM6x2.6x9.5 Nut, Cage, M6, 2.6 Panel, 9.5sq Hole A165070R Cover, Rear, Red A163012 Mudguard, Rear, Red W041216 Washer, Flat, Bright, 1/4"X3/4"X16g NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 SPPK6X20 Screw, Pan, Posi3, K 6x 20 BHSSM6X16...
  • Page 14 EXPLODED VIEW: A16514E BODY- BONNET & BUMPER Owners Manual for Model A16514E rev 1 12 February 2016 Page 14...

  • Page 15: Washer, Flat, Bright, 5/16"X3/4"X18G

    PARTS LIST: A16514E BODY- BONNET & BUMPER ITEM PART NUMBER DESCRIPTION A163066R Bar, Bumper, Red Sub-Assy, Bonnet, Sman 4000 A163014 Bumper, Front SH0816M Screw, Hex, M 8x 16, Pc8.8 NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 SH0620M Screw, Hex, M 6x20, Pc4.6 W041216 Washer, Flat, Bright, 1/4"X3/4"X16g NHM6...

  • Page 16: Owners Manual For Model A16514E Rev 1

    EXPLODED VIEW: A16514E BODY- CONSOLE Owners Manual for Model A16514E rev 1 12 February 2016 Page 16...

  • Page 17: February

    PARTS LIST: A16514E BODY- CONSOLE ITEM PART NUMBER DESCRIPTION NCM6X1.6X9.5 Nut, Cage, M 6, 1.6 Panel, 9.5sq Hole NCM4X1.6X9.5 Nut, Cage, M 4, 1.6 Panel, 9.5sq Hole BHSSM5X12 Screw, Button, Hex Soc, M 5 X 12, Pc10.9 W05MN Washer, Flat, Bright, M 5x 10x1.0 NM5NT Nut, Hex, Nyloc, Thin, M5, Pc6 CP07...
  • Page 18 EXPLODED VIEW: A16514E BONNET (suit Briggs & Stratton Engine) Owners Manual for Model A16514E rev 1 12 February 2016 Page 18...
  • Page 19 Screw, Button, Hex Soc, M 6x 20, Pc10.9 DEC180 Badge, Bonnet DEC240 Decal, Proudly Australian, Red DEC326 Decal, Stockman 4000, Cox, Bonnet DEC330 Decal, Sman 4000, Cox NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 NTF6.3 Nut, Hex Wash, Self-Thread, 6.3...
  • Page 20 EXPLODED VIEW: A16514E BONNET (suit Honda Engine) Owners Manual for Model A16514E rev 1 12 February 2016 Page 20...
  • Page 21 Badge, Bonnet New Era DEC240 Decal, Proudly Australian, Red DEC326 Decal, Stockman 4000, Cox, Bonnet DEC330 Decal, Sman 4000, Cox, 240x 75, Red NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6 NTF6.3 Nut, Hex Wash, Self-Thread, 6.3 SPPK5X16 Screw, Pan, Pozi2, K 5x 16 W030820 Washer, Flat, Bright, 3/16"...
  • Page 22 EXPLODED VIEW: A16514E BRIGGS & STRATTON ENGINE ANCILLARY Owners Manual for Model A16514E rev 1 12 February 2016 Page 22...
  • Page 23 PARTS LIST: A16514E BRIGGS & STRATTON ENGINE ANCILLARY ITEM PART NUMBER DESCRIPTION BHSSM5X12 Screw, Button, Hex Soc, M 5 X 12, Pc10.9 BHSSM5X16 Screw, Button, Hex Soc, M 5 X 16, Pc10.9 W05MN Washer, Flat, Bright, M 5x 10x1.0 Nut, Hex, M5 NHM5 NM5NT Nut, Hex, Nyloc, Thin, M5, Pc6...
  • Page 24 EXPLODED VIEW: A16514E HONDA ENGINE ANCILLARY Owners Manual for Model A16514E rev 1 12 February 2016 Page 24...
  • Page 25 PARTS LIST: A16514E HONDA ENGINE ANCILLARY ITEM PART NUMBER DESCRIPTION BHSSM5X12 Screw, Button, Hex Soc, M 5 X 12, Pc10.9 BHSSM5X16 Screw, Button, Hex Soc, M 5x 16, Pc10.9 W05MN Washer, Flat, Bright, M 5x 10x1.0 Nut, Hex, M5 NHM5 NM5NT Nut, Hex, Nyloc, Thin, M5, Pc6 A163039...
  • Page 26 Owners Manual for Model A16514E rev 1 12 February 2016 Page 26...
  • Page 27 PARTS LIST: A16514E 17.5HP B&S Electrical Components Schematic ITEM PART NUMBER DESCRIPTION Engine, B&S AM16512F Switch, Seat SP1PNCSM Switch, Plunger SKIT132 Switch, Plunger , Inc Cover Battery, Automotive, 12V, CMFU1, 9PL, 240CCA 13125 Switch, Key AM015 Pair, Key, Ignition SH0616M Screw AM159 Solenoid, Starter...
  • Page 28 Owners Manual for Model A16514E rev 1 12 February 2016 Page 28...
  • Page 29 PARTS LIST: A16514E 16HP Honda Only Electrical Components Schematic ITEM PART NUMBER DESCRIPTION Engine, 16.0hp, V2cyl, Elec, Hon, GXV530 AM16512F Switch, Seat SP1PNCSM Switch, Plunger A163040 Harness, Wiring, Main A163180 Lead, Battery, Black, 3term 13125 Switch, Key Battery, Automotive, 12V, CMFU1, 9PL, 240CCA Regulator/Rectifier, Honda SKIT132 Switch, Plunger, Inc Cover...
  • Page 30 EXPLODED VIEW: A16514E STEERING COMPONENTS Owners Manual for Model A16514E rev 1 12 February 2016 Page 30...

  • Page 31: Washer, Flat, Bright, 5/16"X3/4"X14G

    PARTS LIST: A16514E STEERING COMPONENTS ITEM PART NUMBER DESCRIPTION 13012 Bush, Flanged, Nylon AM017C1 Steering Shaft Bush With Collar A163028Z Shaft, Steering, Lower Circlip, Ext, "E"Type, 12idx1.3 Thk W092016 Washer, Flat, Bright, 9/16" X 1+1/4" X 16g 89100 Fastener, Pushon, Round 89097 Steering Shaft Yoke AM25399J...

  • Page 32: Owners Manual For Model A16514E Rev 1

    EXPLODED VIEW: A16514E DRIVE COMPONENTS Owners Manual for Model A16514E rev 1 12 February 2016 Page 32...
  • Page 33 PARTS LIST: A16514E DRIVE COMPONENTS ITEM PART NUMBER DESCRIPTION Sub-Assy, PTO A116013 Cushion, Drive A116025 Spline, Driven, Cushion, Large 89048 Washer A139012 Transaxle, Hydro 14022 Bracket, Thrust, Hub B0860M Bolt W05M202 Washer W051218 Washer NM8NT W203806 Washer A116139 Wheel 12.1 Valve, Tubeless 12.2 TT16X 650-8SS...
  • Page 34 EXPLODED VIEW: A16514E DRIVE PTO COMPONENTS Owners Manual for Model A16514E rev 1 12 February 2016 Page 34...
  • Page 35 PARTS LIST: A16514E DRIVE PTO COMPONENTS ITEM PART NUMBER DESCRIPTION A139024 Pulley, PTO, Socket, Cushion BB305513NS Bearing, Ball A139031 Sleeve, Spacer, Bearing A139025 Fan, Transaxle SPM4X12 Screw, Pan W04MN Washer, Flat WSM4X1.2X1.2 Washer, Lock, Spring A139026R Mount, PTO, Vented A139028Z Retainer, Recessed, Bearing CHSBM10X75 Bolt, Cap...
  • Page 36 EXPLODED VIEW: A16514E TRANSAXLE COMPONENTS Owners Manual for Model A16514E rev 1 12 February 2016 Page 36...
  • Page 37 PARTS LIST: A16514E TRANSAXLE COMPONENTS ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION A139012 Transaxle T22351060040 Roll Pin 6 * 40 T1A646084163 Lower Case T26776120002 Nut 12 T1A646024460 Reservoir Tank T1A646031510 Differential Gear Kit KIT232 Hose incl Clamp T1A646033520 Final Gear (54t) CH12 Clamp T1A646033250...
  • Page 38 EXPLODED VIEW: A16514E CUTTER CONTROL COMPONENTS Owners Manual for Model A16514E rev 1 12 February 2016 Page 38...
  • Page 39 PARTS LIST: A16514E CUTTER CONTROL COMPONENTS ITEM PART NUMBER DESCRIPTION NM8NT NM6NT W05M202 Washer A142104R Link, Drop, Disengagement, Cutter AM369 Bush KIT234 Kit, Link, Drag Inc Bushes AM369 Bush 90022 Pin, Pivot 13016 90012 Connecting Link Adjuster Bracket SH0825M Screw SH0616M Screw AM012...
  • Page 40 EXPLODED VIEW: 805mm (32”) MOWING ATTACHMENT Owners Manual for Model A16514E rev 1 12 February 2016 Page 40...
  • Page 41 PARTS LIST: 805mm (32”) MOWING ATTACHMENT ITEM PART NUMBER DESCRIPTION 13016 251301 Rod, Adj, Cutter Brake A100010 Lever, Brake, Cutter Arm, Lever, Brake, Cutter AM033I95 Pad, Brake, Cutter PR0205 Rivet AM034H0 Cutter Head Brake Adj Brkt AM035 Spring, Compression, Cutter Brake AM07604A Disk, Cutter, 410 Pcd AM259...
  • Page 42 EXPLODED VIEW: 960mm (38”) MOWING ATTACHMENT Owners Manual for Model A16514E rev 1 12 February 2016 Page 42...
  • Page 43 PARTS LIST: 960mm (38”) MOWING ATTACHMENT ITEM PART NUMBER DESCRIPTION NM10NT NCM8X4.75 Nut, Cage A152043Z Axle, Tensioner AM017C1 Steering Shaft Bush With Collar 14025 Boss, Idler WS050216 Washer, Lock, Spring SH0825M Screw PIFBB03 Idler, Flat A152017Z Arm, Tensioner, Belt B1090M Bolt Belt, V A152253R...
  • Page 44 EXPLODED VIEW: 960mm (38”) MOWING ATTACHMENT DRIVE COMPONENTS Owners Manual for Model A16514E rev 1 12 February 2016 Page 44...
  • Page 45 PARTS LIST: 960mm (38”) MOWING ATTACHMENT DRIVE COMPONENTS ITEM PART NUMBER DESCRIPTION A152103L Frame, Reinforce A152005B Housing, Bearing, Flange, Short BB205215NS Bearing, Ball A15202012K Kit, Spindle, Flanged, Cutter A118012Z Shield, Bearing BB255215NN Bearing, Ball A152011B Spacer, Disc, Cutter A152013B Disc, Cutter BHSSM10X30 Screw, Button NM10NT...
  • Page 46 DEC346 Decal, Sman 4000,Side,Right,17.5hp,Hydro 1 DEC325 Decal, Sman 4000,Cox,Hydro DEC326 Decal, Sman 4000,Cox,Bonnet,Side DEC330 Decal, Sman 4000,Cox,250x 80,Red DEC331 Decal, Sman 4000,Deck,Do Not Step,32” DEC332 Decal, Sman 4000,Deck,Do Not Step,38” Owners Manual for Model A16514E rev 1 12 February 2016...
  • Page 47 Owners Manual for Model A16514E rev 1 12 February 2016 Page 47...
  • Page 48 70 Landseer Street Acacia Ridge Qld 4110 Australia PH 07 3323 2222 FAX 07 3344 6233 Web Site Address: www.coxmowers.com.au Email: sales@coxmowers.com.au...
