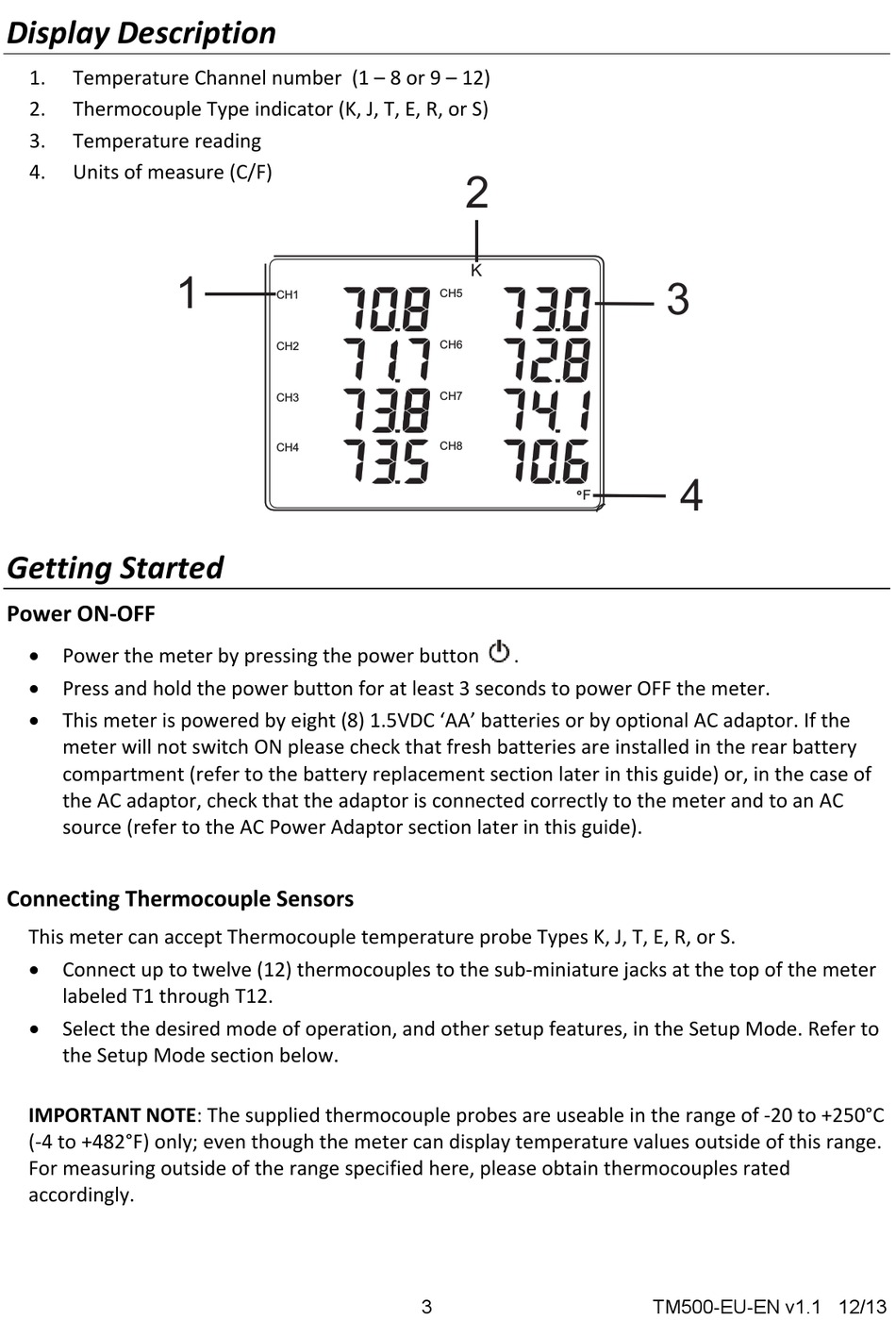

Display Description
1. Temperature Channel number (1 – 8 or 9 – 12)
2. Thermocouple Type indicator (K, J, T, E, R, or S)
3. Temperature reading
4. Units of measure (C/F)
1
Getting Started
Power ON‐OFF

Power the meter by pressing the power button .

Press and hold the power button for at least 3 seconds to power OFF the meter.

This meter is powered by eight (8) 1.5VDC 'AA' batteries or by optional AC adaptor. If the
meter will not switch ON please check that fresh batteries are installed in the rear battery
compartment (refer to the battery replacement section later in this guide) or, in the case of
the AC adaptor, check that the adaptor is connected correctly to the meter and to an AC
source (refer to the AC Power Adaptor section later in this guide).
Connecting Thermocouple Sensors
This meter can accept Thermocouple temperature probe Types K, J, T, E, R, or S.

Connect up to twelve (12) thermocouples to the sub‐miniature jacks at the top of the meter
labeled T1 through T12.

Select the desired mode of operation, and other setup features, in the Setup Mode. Refer to
the Setup Mode section below.
IMPORTANT NOTE: The supplied thermocouple probes are useable in the range of ‐20 to +250°C
(‐4 to +482°F) only; even though the meter can display temperature values outside of this range.
For measuring outside of the range specified here, please obtain thermocouples rated
accordingly.
CH5
CH1
CH6
CH2
CH7
CH3
CH8
CH4
3
2
K
F
3
4
