Package Contents

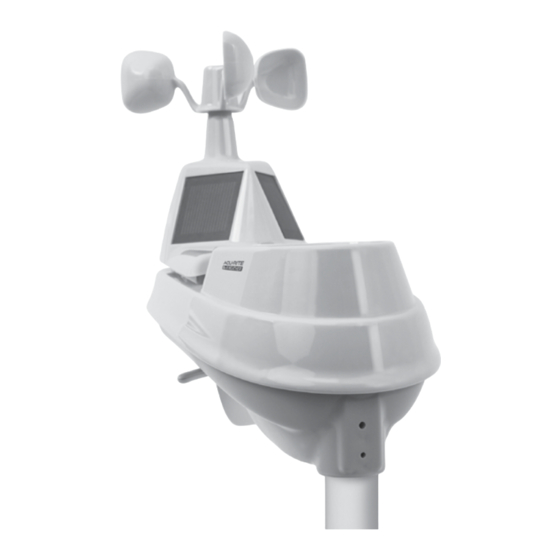

1. AcuRite Iris Weather Sensor
2. Mounting Hardware
3. Sensor Mounting Bracket
4. Instruction Manual
IMPORTANT
Register online to receive 1-year warranty protection
www.acurite.com/product-registration
Questions? Visit www.acurite.com/support
AcuRite Iris
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
PRODUCT REGISTRATION
Instruction Manual
™
Weather Sensor
(Dual Solar Panel)
(5-in-1)
model 06014
Advertisement
Table of Contents
Related Manuals for ACU-RITE Iris 06014
Summary of Contents for ACU-RITE Iris 06014
- Page 1 Instruction Manual AcuRite Iris (5-in-1) ™ Weather Sensor (Dual Solar Panel) model 06014 Package Contents 1. AcuRite Iris Weather Sensor 2. Mounting Hardware 3. Sensor Mounting Bracket 4. Instruction Manual IMPORTANT PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE PRODUCT REGISTRATION Register online to receive 1-year warranty protection www.acurite.com/product-registration Questions? Visit www.acurite.com/support...
- Page 2 Features & Benefits AcuRite Iris SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9.
- Page 3 SETUP AcuRite Iris Sensor Setup Set the A-B-C Switch The AcuRite Iris sensor requires lithium batteries in low temperature conditions. Locate the A-B-C switch inside the Cold temperatures can cause alkaline battery compartment. Set the A-B-C batteries to function improperly. Use switch to A, B or C.
- Page 4 Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. AcuRite Iris Sensor Placement The AcuRite Iris sensor is designed to remain outdoors all year long. Choose an open location with no obstructions above or around the sensor for the most accurate measurements.
- Page 5 AcuRite Iris Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”...
- Page 6 Calibrate the Rain Gauge The rain gauge on the AcuRite Iris sensor can be calibrated to improve accuracy. Items Needed: AcuRite Iris sensor, companion unit, plastic cup, pin, screw driver 1. First, ensure AcuRite Iris sensor is perfectly level using built-in bubble level. 2.
- Page 7 Customer Support AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways: Chat with our support team at www.acurite.com/support Email us at support@chaney-inst.com ►...
- Page 8 www.AcuRite.com © Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights are the property of their respective owners. AcuRite uses patented Printed in China technology.
-
Page 9: Table Of Contents
Instruction Manual AcuRite Iris Mini Display ® model 06106 CONTENTS Care & Maintenance ......8 Package Contents ......2 Calibration ........8 Product Registration......2 Troubleshooting ........9 Features & Benefits ......3 Specifications ........10 Setup ..........5 Customer Support ......1 1 Set the Time, Date & Units ....6 Warranty......... -
Page 10: Package Contents
Congratulations on your new AcuRite product! To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove. -
Page 11: Features & Benefits
Features & Benefits Front of Display 1. Current Outdoor Temperature 12. Current Indoor Temperature 2. Records Button 13. Current Barometric Pressure Press to cycle through available daily and Arrow indicates the direction the pressure all-time records. is trending. 3. Current Outdoor Humidity 14. - Page 12 Back of Display A-B-C 1. Integrated Hanger Button For easy wall mounting. For setup preferences. 2. A-B-C Switch Button ID code that must match sensor’s A-B-C For setup preferences. switch to ensure units synchronize. 9. SET Button 3. Display Stand For setup preferences.
-
Page 13: Setup
SETUP Display Setup Set the A-B-C Switch Locate the A-B-C switch inside the battery compartment. Set the A-B-C switch to A, B or C. You must select the same letter choices for both the display and the sensor in order for the units to synchronize. -
Page 14: Set The Time, Date & Units
Set the Time, Date & Units Press and release the “SET” button, located on the back of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ ” or “ ” buttons (press and HOLD to fast adjust). -
Page 15: Operation
OPERATION Using the AcuRite Iris Mini Display ® Learning Mode Self-calibrating forecasting uses a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 16: Care & Maintenance
Programmable Alarms This display features programmable alarms that sound an alert to notify you when a value (for outdoor temperature, humidity, wind speed or rainfall) has been reached or exceeded. When an alarm is triggered, the display emits an audible beep and flashes data in the affected category. You can customize the alarms by turning ON or OFF the alarms you’d like activated or deactivated, and by inputting your own values to trigger the alarm. -
Page 17: Troubleshooting
Troubleshooting Problem Possible Solution If the wireless signal indicator shows no bars: • Relocate the display and/or the outdoor sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from No outdoor sensor electronics that may interfere with the wireless communication reception... -
Page 18: Specifications
Troubleshooting Cont’d Problem Possible Solution • What is wind reading being compared to? Pro weather stations are typically mounted at 30 ft high or more. Make sure to compare data using a sensor positioned at the same mounting height. Inaccurate wind readings •... -
Page 19: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and visit acurite.com/support. ► ► Installation Videos Register your Product ► ► Instruction Manuals Replacement Parts ►... - Page 20 www.AcuRite.com © Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights are the property of their respective owners. AcuRite uses patented Printed in China technology.
