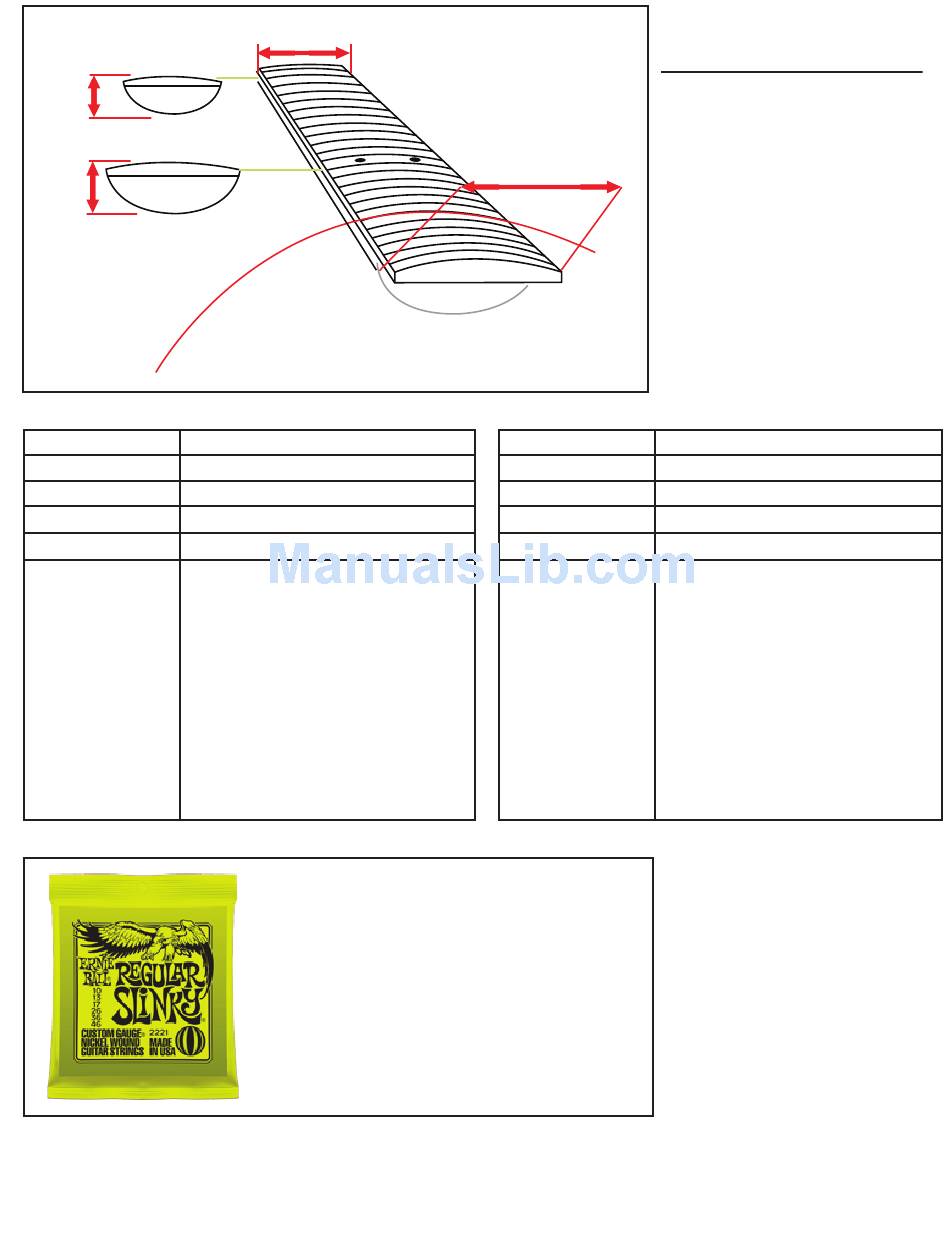

Schecter Blackjack ATX C-1 FR Wiring Diagram page 2

Schecter blackjack atx c-1 fr: specifications
Hide thumbs Also See for Blackjack ATX C-1 FR:

Advertisement

c
d
radius
Bridge Pickup
Name:
Seymour Duncan Blackouts AHB-1
Model No:
AHB-1 Bridge
Construction:
Humbucker
Magnet:
Ceramic
Output:
Resonant Peak- 430 KHz
Description:
9-volt active humbucker for
aggressive playing styles.
Recommended for old school
metal, garage, punk, thrash, drop
tunings, and other heavy rock
styles. Capturing the tone that
players want in an active design
using balanced inputs. The result is
12dB to 14dB less noise, plus more
lows, more highs, and more output.
Strings
a
6-String Guitar*
Tuning: E-A-D-G-B-E
Gauge: .046-.036-.026-.017-.013 .010
(EB Regular Slinky #2221)
*Changing to different string gauges and/or
alternate tunings may require minor neck/bridge
adjustments for optimal performance. For Schecter
setup tips refer to Schecter Setup Guide.
Blackjack ATX C-1 FR
Neck Specs:
Scale Length: 648mm/25.5"
A: Width at Nut- 42mm
B: Width at Last Fret- 58mm
b
C: Thickness at 1st Fret- 20mm
D: Thickness at 12th Fret- 22mm
Radius: 355mm/14"
Neck Pickup
Name:
Seymour Duncan Blackouts AHB-1
Model No:
AHB-1 Neck
Construction:
Humbucker
Magnet:
Alnico V
Output:
Resonant Peak- 750 KHz
Description:
9-volt active humbucker for
aggressive playing styles.
Recommended for old school
metal, garage, punk, thrash, drop
tunings, and other heavy rock
styles. Capturing the tone that
players want in an active design
using balanced inputs. The result
is 12dB to 14dB less noise, plus
more lows, more highs, and
more output.
