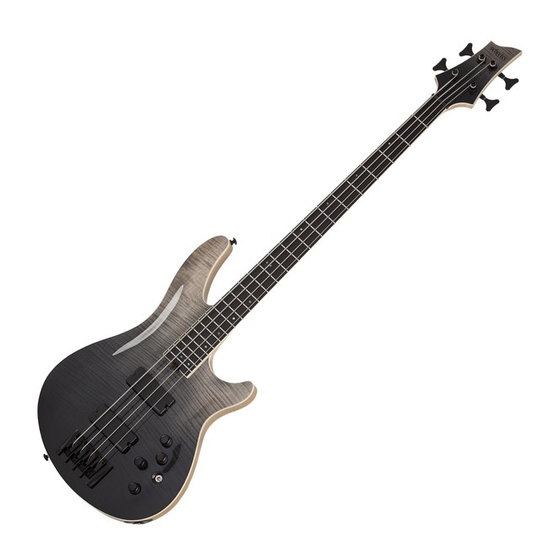

Schecter Stiletto Elite 4 Supplementary Manual

Wiring for
Ultra Bass
Stiletto Custom 4 & 5
Stiletto Elite 4 & 5
C-4
C-5

Neck pickup: EMG 35HZ

(EMG 40HZ for 5-string models)

Bridge pickup: EMG 35HZ

(EMG 40HZ for 5-string models)
= ground. This symbol
is found where any ground connection
should be soldered.
For technical or warranty questions please email: tech@schecterguitars.com
EMGHZ
EMG BTS-V7
2-Band EQ
EMGHZ
Red
Black
9-Volt
9-Volt
battery
battery
(battery ground)
Treble
Bass

Output Jack

Ring
Sleeve
(ground)
Diagram copyright Schecter Guitar Research 2006
Master
Volume
Black
&
500k
White
Green Green
&
Bare Bare
Blend
Control
250k
Tip
(hot output)
&
Black
&
White
