Neck pickup
Seymour Duncan AHB-1 Blackouts
Seymour Duncan
Bridge pickup
Seymour Duncan AHB-1 Blackouts
Seymour Duncan
3-way switch settings
1
2
Neck
Bridge
Neck Vol
Bridge Vol
Tone
3-Way
Tone
Switch
For technical or warranty questions please email: tech@schecterguitars.com
Diagram copyright Schecter Guitar Research 2011
3
9-Volt
9-Volt
battery
battery

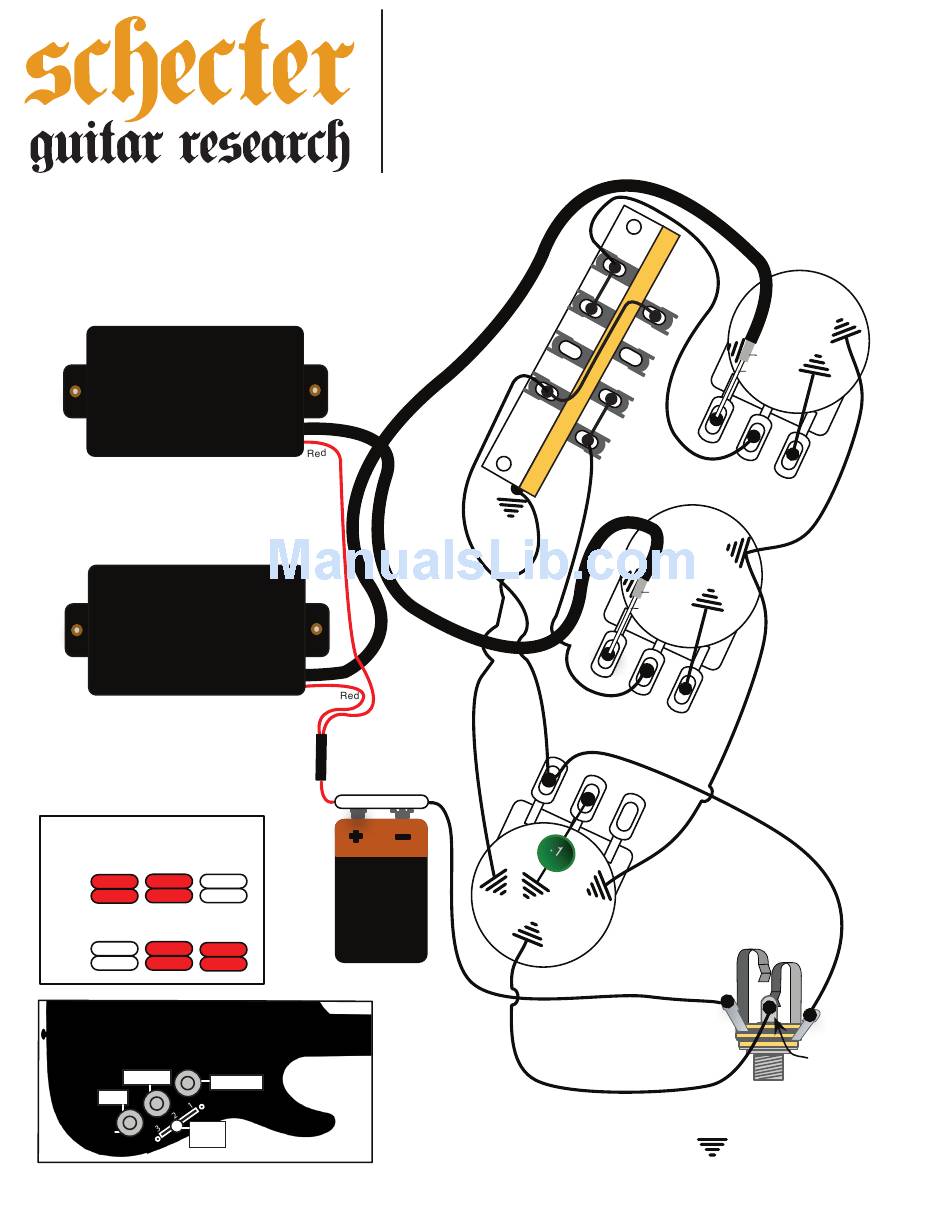

Blackjack ATX C-1 FR
Wiring Diagram
3
2
3-way
switch
Ring (battery ground)
2
Bare
White
1
Bare
White
Master
tone
25k
Output Jack
= ground. This symbol
is found where any ground connection
should be soldered.
Bridge
volume
25k
Neck
volume
25k
Tip (hot output)
Sleeve (ground)
Advertisement
Related Manuals for Schecter Blackjack ATX C-1 FR
Summary of Contents for Schecter Blackjack ATX C-1 FR
-
Page 1: Wiring Diagram
3-way switch settings Neck Bridge Neck Vol Bridge Vol Tone 3-Way Tone Switch For technical or warranty questions please email: tech@schecterguitars.com Diagram copyright Schecter Guitar Research 2011 Blackjack ATX C-1 FR Wiring Diagram 3-way switch 9-Volt 9-Volt battery battery Ring (battery ground) - Page 2 Tuning: E-A-D-G-B-E Gauge: .046-.036-.026-.017-.013 .010 (EB Regular Slinky #2221) *Changing to different string gauges and/or alternate tunings may require minor neck/bridge adjustments for optimal performance. For Schecter setup tips refer to Schecter Setup Guide. Neck Pickup Name: Model No: Construction: Magnet:...
