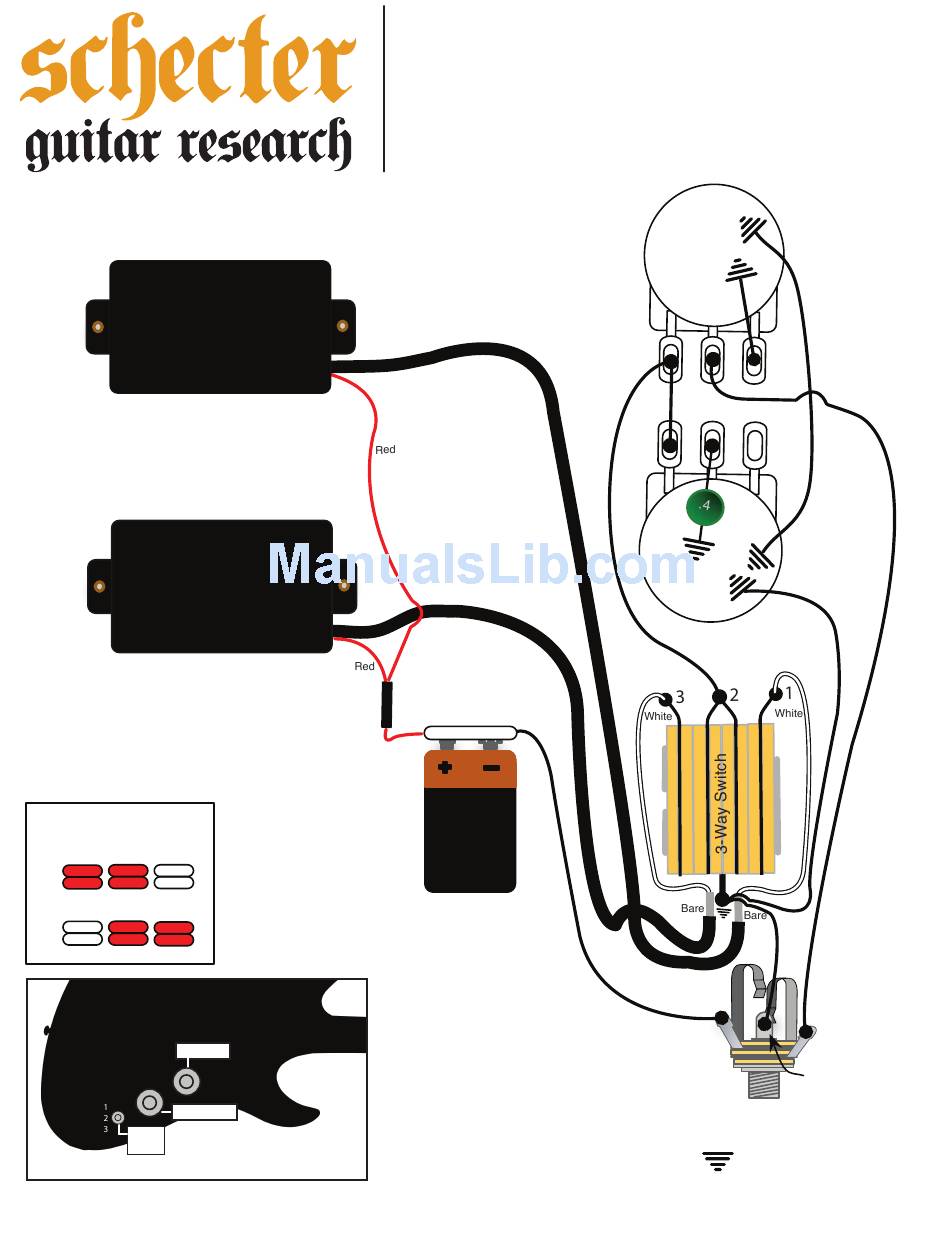

Schecter Blackjack ATX Avenger Wiring Diagram

Schecter blackjack atx avenger: specifications

Download this manual

Neck pickup

Seymour Duncan AHB-1 Blackouts

Bridge pickup

Seymour Duncan AHB-1 Blackouts

3-way switch settings

Neck

Bridge

Master Vol

Master Tone

3-Way

Switch

For technical or warranty questions please email: tech@schecterguitars.com

Diagram copyright Schecter Guitar Research 2011

Seymour Duncan

Blackjack ATX Avenger

Wiring Diagram

9-Volt

battery

Ring (battery ground)

= ground.

is found where any ground connection

should be soldered.

Master

Volume

25k

Master

Tone

25k

Tip (hot output)

Sleeve (ground)

This symbol

Page 1: Wiring Diagram
Seymour Duncan 3-way switch settings Neck Bridge Master Vol Master Tone 3-Way Switch For technical or warranty questions please email: tech@schecterguitars.com Diagram copyright Schecter Guitar Research 2011 Blackjack ATX Avenger Wiring Diagram 9-Volt 9-Volt battery battery Ring (battery ground) Output Jack...
Page 2 Tuning: E-A-D-G-B-E Gauge: .046-.036-.026-.017-.013 .010 (EB Regular Slinky #2221) *Changing to different string gauges and/or alternate tunings may require minor neck/bridge adjustments for optimal performance. For Schecter setup tips refer to Schecter Setup Guide. Neck Pickup Name: Model No: Construction: Magnet:...
Page 3 And you get the added advantage that the bridge is firmly mounted to the guitar, so when you change your strings, they don't fall off and cause damage to your valuable finish! This completely preserves of your perfect set-up, which means no more readjusting your guitars action or intonation.
