Neck Pickup:
EMG-HZ H4A
Bridge Pickup:
EMG-HZ H4
3-way switch settings
1
2
3
Neck
Bridge
Master Vol
Master Tone
3-Way
Switch
For technical or warranty questions please email: tech@schecterguitars.com
Diagram copyright Schecter Guitar Research 2011

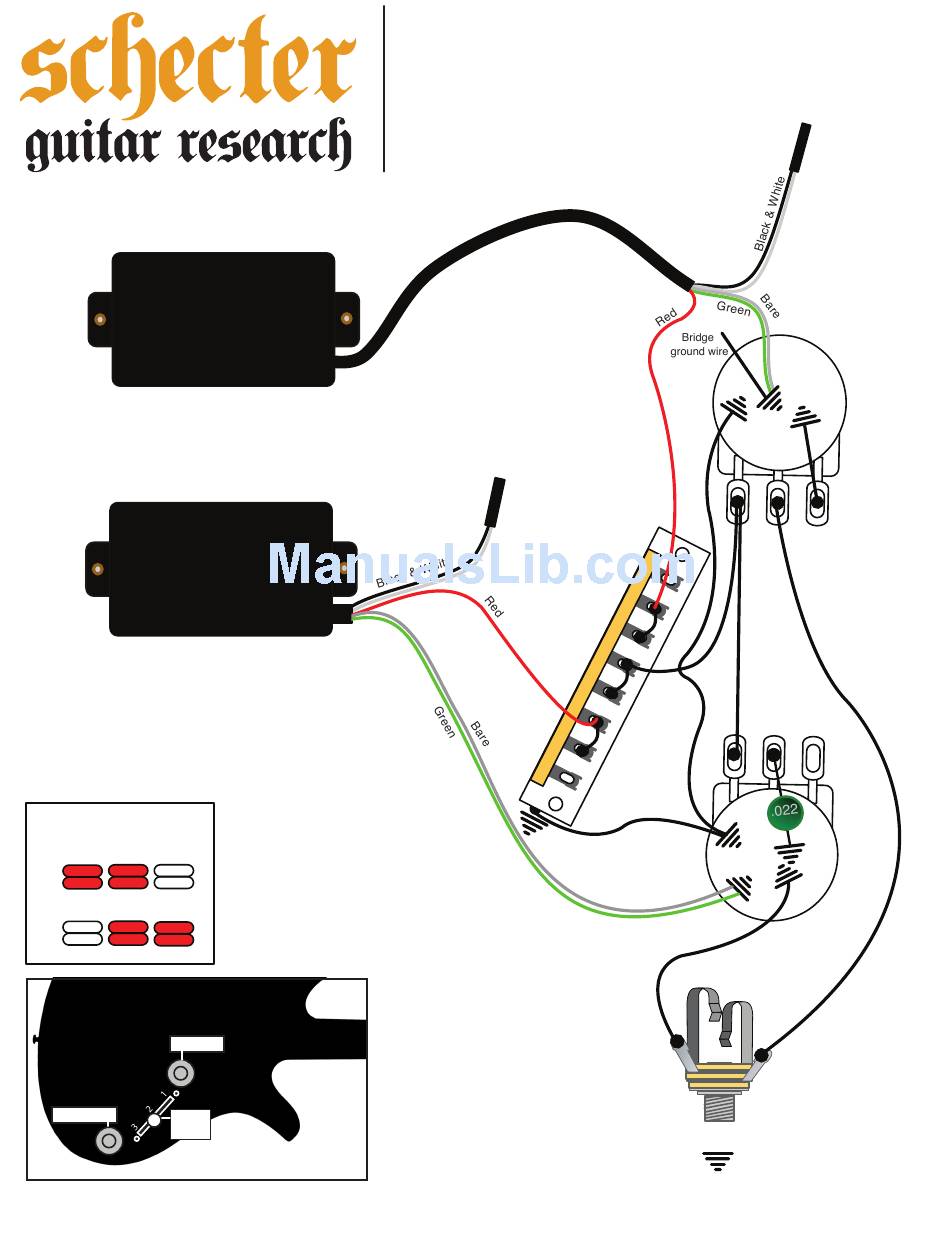

Damien Riot FR
Wiring Diagram
EMGHZ
Black & white wires from pickup
soldered together and insulated.
EMGHZ
3-way
lever switch
1
2
3
Tone
500k
Sleeve (ground)
Output Jack
is found where any ground connection
Black & white wires from pickup
soldered together and insulated.
Volume
500k
Tip (hot output)
= ground.
This symbol
should be soldered.
