Schecter Stiletto Deluxe 5 Supplementary Manual

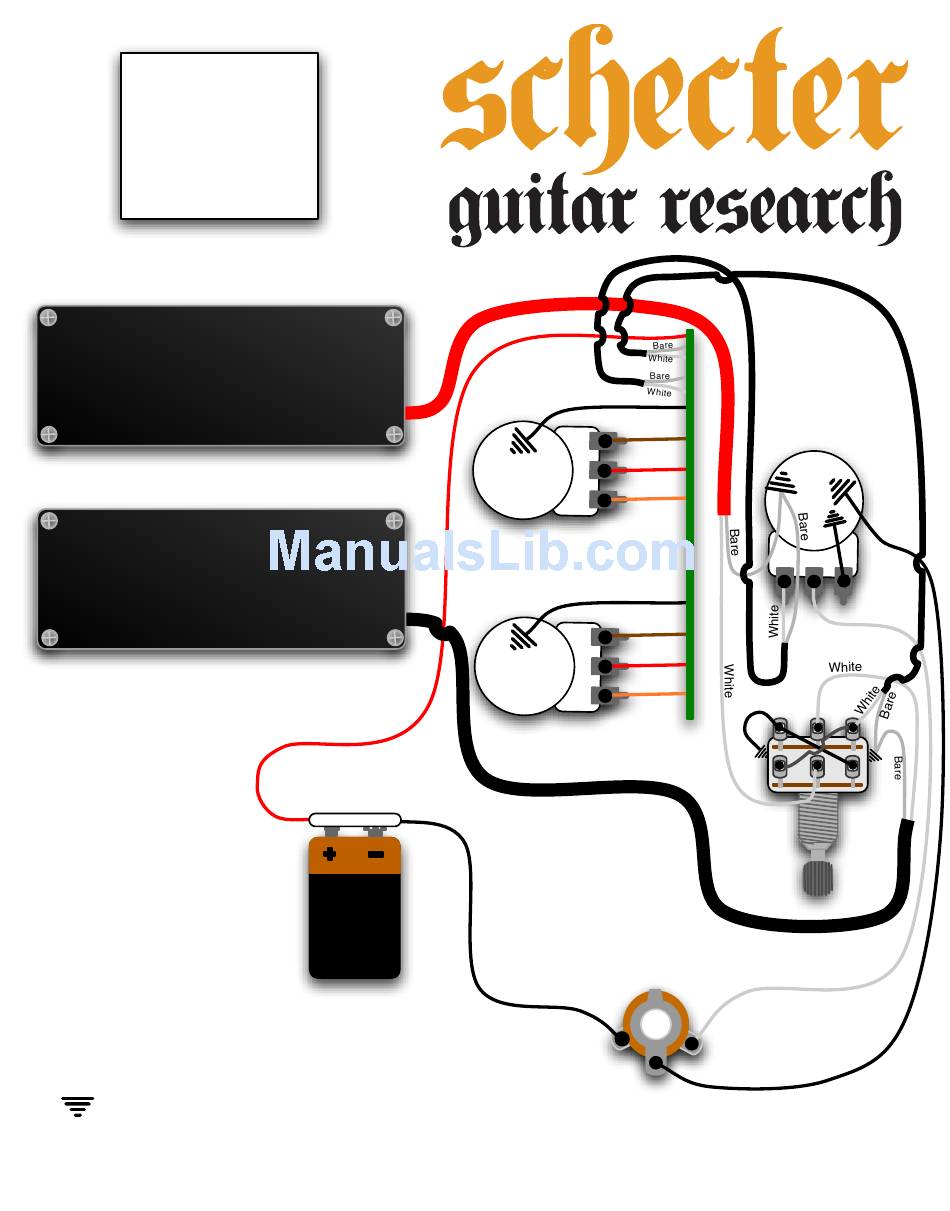

Wiring for
Stiletto Deluxe 4
Stiletto Deluxe 5
Omen 4
Omen 5
Omen 8
Neck pickup:
Schecter Diamond Active
Bridge pickup:
Schecter Diamond Active
= ground. This symbol
is found where any ground connection
should be soldered.
For technical or warranty questions please email: tech@schecterguitars.com
SCHECTER
SCHECTER
Red
Black
9-Volt
9-Volt
battery
battery
(battery ground)
Brown
Red
Treble
Orange
Schecter
2-Band EQ
Brown
Red
Bass
Orange

Output Jack

Ring
Sleeve
(ground)
Diagram copyright Schecter Guitar Research 2006
Master
Volume
250k
Blend
Control
Tip
(hot output)
