RGBlink ASK nano User Manual
Wireless presentation and collaboration system
Hide thumbs
Also See for ASK nano:
- User manual (29 pages) ,
- Quick start manual (9 pages) ,
- User manual (29 pages)
Related Manuals for RGBlink ASK nano
Summary of Contents for RGBlink ASK nano
- Page 1 ASK nano Wireless Presentation and Collaboration System USER MANUAL Article No: RGB-RD-UM-ASK nano E001 Revision No: V1.1 ASK nano User Manual...
-
Page 2: Table Of Contents
3.4 Single Screen Mode......................16 3.5 Examples Demonstration of Screen Projection..............17 Chapter 4 Order Codes........................19 Chapter 5 Support ........................... 20 5.1 Contact Us........................... 20 Chapter 6 Appendix........................... 21 6.1 Specification........................21 6.2 Terms & Definitions......................22 6.3 Revision History........................29 ASK nano User Manual... -
Page 3: Declarations
30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract. -
Page 4: Operators Safety Summary
The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection Before opening ASK nano processor shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. - Page 5 Site Preparation The environment in which you install your ASK nano should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. ASK nano User Manual...
-
Page 6: Chapter 1 Your Product
Chapter 1 Your Product 1.1 In the Box Standard Accessories Type C - HDMI micro USB Cable*2 HDMI Adapter*1 Adapter(female tot female)*2 HDMI Cable(male to 2.4G Wireless female)*1 Cable*1 ASK nano User Manual... -
Page 7: Product Overview

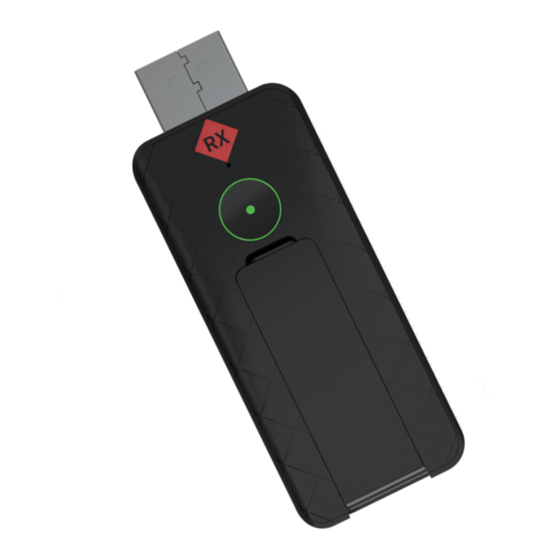

1.2 Product Overview ASK nano is an intuitive and high efficiency wireless presentation and collaboration system that enables any meeting participant to simply share the content from their laptop, mobile phone, or tablet on the projector or large screen wirelessly, no APP required, no set up, no messy cables, just touch and share. - Page 8 Indicator light Micro USB power interface Indicator light Illumination Light Red TX is opening Flash Blue Waiting for the connection Static Blue Successful connection and projection Illumination Flash Blue RX is power on and ready for projection ASK nano User Manual...
-
Page 9: Chapter 2 Install Your Product
Note: ASK nano TX will auto pair to the most close ASK nano RX,so once you will do the pairs,please make sure the dedicated ASK nano RX to be closed to be paired ASK nano TX. -
Page 10: Transmitter Installation
Note:If projection is unsuccessful,unplug the TX, and supply power to TX’s HDMI port via microUSB-USB cable and power adapter,then connect TX’s HDMI port to the PC’s HDMI port again,touch the projection key to project. ASK nano User Manual... -
Page 11: Chapter 3 Use Your Product
Users can switch the language to English in web page menu. The steps to enter the menu as follow: 1. Select and connect ASK nano RX’s hotspot from the WIFI List in your mobile phone or computer; RX hotspot name : ASK nano-XXXXXX; Password : 12345678;... -
Page 12: Switch The Language
3.1.2 Add Wireless Network Click "Add WIFI" and select the network to be added from the WIFI list. After joining the network, the big screen of RX will show the name of the LAN and the IP address. ASK nano User Manual... -
Page 13: Screen Position
Tencent and other video software to play a video, it will acquire the video address for playing. Please check the technical support on Apple's official website for the specific AirPlay "Streaming" and "Mirror" operation: https://support.apple.com/zh-cn/HT204289 3.1.5 Meeting Invitation ASK nano User Manual... -
Page 14: Computer Screen Projection By Tx
3.1.5 AirPlay screen selection.Both modes should connect the RX’s hotspot in TX/DLNA/AirPlay Mode. 1. Search RX's own hotspot in Settings. The WIFI name is usually ASK Nano-XXXXXX, and the initial password is 12345678 or check the password displayed on the standby interface of RX. -
Page 15: Android
RX. The specific steps are as follows: 1. Search RX's own hotspot in Settings. The WIFI name is usually ASK Nano-XXXXXX, and the initial password is 12345678 or check the password displayed on the standby interface of RX. -
Page 16: Single Screen Mode
Note: TX screen projection takes precedence over mobile hotspot screen projection.TX must exit the screen projection before the mobile phone can cast the screen. Unsuccessful mobile phone wireless projection means that the device name of RX cannot be found in the Screen Mirror list and Wireless Projection list. ASK nano User Manual... -
Page 17: Examples Demonstration Of Screen Projection
TX projection is to touch the projection key on TX again. If the screen enters the standby interface, TX exits successfully. If not, touch the key again; 3) Clicking “Wireless Projection” on Android phone,the pictures and videos will be cast to the big screen; ASK nano User Manual... - Page 18 4) Clicking “Screen Mirroring” on iPhone,the image will be cast to the big screen; 5) When using Windows computer to cast again,touch the projection key on the TX again,the image of computer will be cast to the big screen. ASK nano User Manual...
-
Page 19: Chapter 4 Order Codes
Chapter 4 Order Codes Product Code Item 450-0101-02-0 ASK nano TX 450-0002-02-0 ASK nano RX 450-1002-01-0 ASK nano Starter Set (TX*1+RX*1) 450-1004-01-0 ASK nano Meet Set (TX*2+RX*1) ASK nano User Manual... -
Page 20: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us ASK nano User Manual... -
Page 21: Chapter 6 Appendix
Power 1×microUSB Performance Output Resolutions HDMI SMPTE 1080p@60 Supported Standard HDMI Power Input Voltage DC 5V/0.5A Max Power 2.5W Environment Temperature 0 ℃ ~70 ℃ Humidity 10%~85% Physical Weight 0.03kg Packaged 0.34kg Dimension 85mm×30mm×13mm Packaged 170mm×120mm×50mm ASK nano User Manual... -
Page 22: Terms & Definitions
In consumer applications the connector is typically RCA type, while in professional applications the connector is BNC type. ●YPbPr: Used to describe the colour space for progressive-scan. Otherwise known as component video. ASK nano User Manual... - Page 23 September 4, 2013 increases the maximum bandwidth to 18.0 Gbit/s. Other features of HDMI 2.0 include up to 32 audio channels, up to 1536 kHz audio sample frequency, the HE-AAC and DRA audio standards, improved 3D capability, and additional CEC functions. ASK nano User Manual...
- Page 24 2.5mm diameter. Nowadays, it is used mostly in single mode fiber optic patch cords, analog, GBIC, and CATV. SC is one of the most popular options, as its simplicity in design comes along with great durability and affordable prices. ASK nano User Manual...
- Page 25 ●PAL: Phase Alternate Line. A television standard in which the phase of the colour carrier is alternated from line to line. It takes four full images (8 fields) for the colour-to-horizontalimages (8 fields) for the colour-to-horizontal phase relationship to return to the reference point. This alternation helps cancel ASK nano User Manual...
- Page 26 The protocol is used for establishing and controlling media sessions between end points. ●MPEG: Moving Picture Experts Group is a working group formed from ISO and IEC developing standards that allow audio/video digital compression and Transmission. ASK nano User Manual...
- Page 27 ●Contrast Ratio：The ratio of the high light output level divided by the low light output level. In theory, the contrast ratio of the television system should be at least 100:1, if not 300:1. In reality, there are several limitations. Well-controlled viewing conditions should yield a practical contrast ratio of 30:1 to 50:1. ASK nano User Manual...
- Page 28 Other forms of PIP displays include Picture-By-Picture (PBP) and Picture- With-Picture (PWP), which are commonly used with 16:9 aspect display devices. PBP and PWP image formats require a separate scaler for each video window . ASK nano User Manual...
-
Page 29: Revision History
3. Add a cable to connect TX and Android phone. All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
