- Page 1 BIKE OWNER’S MANUAL 2015 All rights reserved © 2014 SCOTT Sports SA SCOTT Sports SA | 17 Route du Crochet | 1762 Givisiez | Switzerland Distribution: SSG (Europe) Distribution Center SA P.E.D Zone C1, Rue Du Kiell 60 | 6790 Aubange | Belgium...
-
Page 2: Table Of Contents
Plasma 5 Frameset Content ........ -

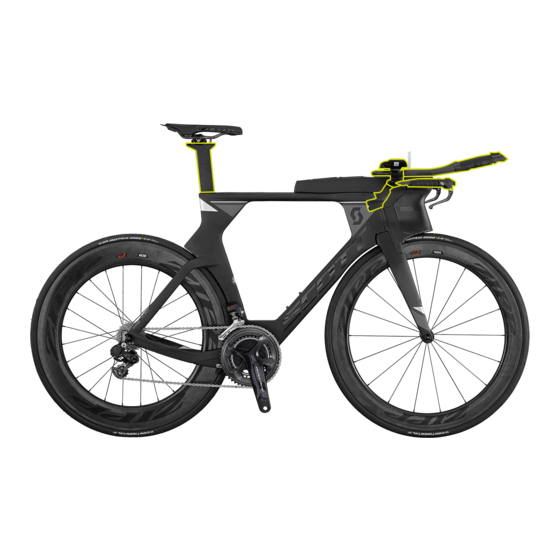

Page 3: Plasma Concept
Rear brake SHIMANO direct mount compatible brake calipers SCOTT’s focus was not only on the frame and rider aerodynamics but also on the Front brake Compatible with both SHIMANO bike’s ergonomics and adjustability as well as the frame front end stiffness. -
Page 4: Plasma 5 Frameset Content
- Tighten the screw to set a shorter chainstays length. Make sure right and left side are set at the same length by assembling the rear wheel and verifying it is centred with the chainstays. PLASMA 5 | BIKE OWNER’S MANUAL 2015 BIKE OWNER’S MANUAL 2015 | PLASMA 5... -
Page 5: Cable Routing: For Electronic Shifting
Pull the housing to leave approx. 100mm of cable housing outside the frame. Front Brake (FB) Cable Housing: refer to the Stem/Handlebar section. PLASMA 5 | BIKE OWNER’S MANUAL 2015 BIKE OWNER’S MANUAL 2015 | PLASMA 5... -
Page 6: Cable Routing: For Mechanical Shifting
(you may feel a resistance), direct the housing up and push the housing again, it will then follow the headtube down and continue its Front derailleur BB cable guide (801) SCOTT Part number: 239181 travel along the downtube. -
Page 7: Fork
Once the cable routing is done, place the headtube cap (905) on the top of the headtube and tighten the M4 screw (906) to the specified torque (T18). Headset compression kit SCOTT part number: 239282 Headset Syncros Drop-In 1” - 1 1/8” SCOTT part number: 238601 HEADSET/STEM BODY TT5 Headset/Stem body assembly: put the compression kit (908) into the steerer tube and tighten the bolt to the specified torque (T16) , position the lower 1”1/8 bearing (901) onto the fork (201) -
Page 8: Seatpost
Once the right offset is set, tighten the two M5 barrel screws (521) to the specified Seat Clamp Plasma 4/5 SCOTT part number: 239544 torque (T12), in some cases, you will need to remove the saddle to access the two M5 barrel screws. -
Page 9: Stem/Handlebar
Position the handlebar on the stem body handlebar interface and pull gently the cable housings and wires meanwhile to make sure they do are not bent or pinched during the assembly. PLASMA 5 | BIKE OWNER’S MANUAL 2015 BIKE OWNER’S MANUAL 2015 | PLASMA 5... -
Page 10: Brake
The recommended front brake caliper for the SCOTT Plasma 5 is the TEKTRO SCTT161411501, especially designed for the Plasma 5. Only this brake model is compatible with the front aero brake cover (401) delivered with the SCOTT Plasma 5 frameset. Instructions below describe the TEKTRO SCTT161411501 assembly. -
Page 11: Brake Covers
Advisory: The SCOTT Plasma is only compatible with SHIMANO direct mount compatible brake calipers. The recommended rear brake caliper for the SCOTT Plasma 5 is the SHIMANO Dura-Ace BR-9010. Only this brake model Front brake cover: is compatible with the rear aero brake cover (410) delivered with the SCOTT Plasma 5 frameset. -
Page 12: Storage Box
“anti-splash” bottle foam part (435) into the bottle cap part recess (436). Clip the bottle cap part (436) onto the bottle body neck (430) and insert the straw into the Plasma 5 Storage box SCOTT part number: 238936 bottle cap hole. -
Page 13: Warranty
Doing so SCOTT warrants its frames and swingarms for five years (subject to compliance with maintenance ranges, see below) and SCOTT forks (provided it is a fork of SCOTT) for two years for defects in material and/or workmanship in case of purchase of completely Year .
