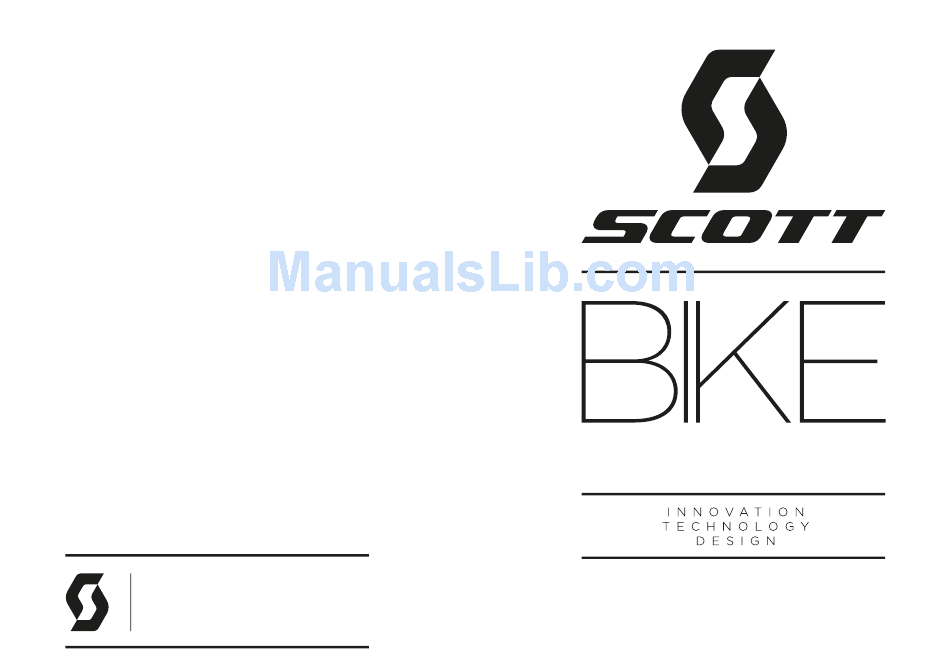

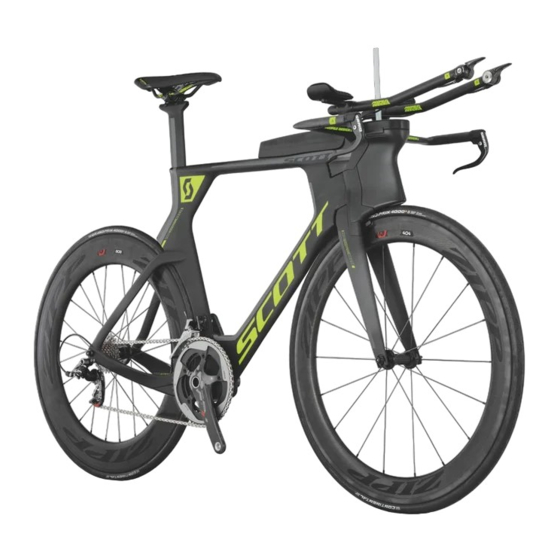

  • Page 1 SCOTT PLASMA 4 USER MANUAL All rights reserved © 2016 SCOTT Sports SA Distribution: SSG (Europe) Distribution Center SA, P.E.D. Zone C1, Rue du Kiell 60, 6790 Aubange, Belgium v6.2/15122016 W W W . S C O T T - S P O R T S . C O M WWW.SCOTT-SPORTS.COM...

  • Page 2: Table Of Contents

    Plasma 4 Frameset Content ........

  • Page 3: Plasma 4 Concept

    PLASMA 4 CONCEPT GEOMETRY/TECHNICAL DATA PLASMA 4 Plasma 4 is the result of research and development based on the feedback of the Headtube diameter Plasma 4: 1.1/8” SCOTT-triathlon and time trial athletes searching for one of the most efficient BB housing PF BB 86 aerodynamics orientated yet affordable frames in the market.

  • Page 4: Plasma 4 Frameset Content

    - Rear derailleur hanger: place the rear derailleur hanger in the cavity and tighten the 2x M5 screws to their specified torques. Rear derailleur hanger: SCOTT Part number 239178 Drop out adjustment screws: Standard M5*10mm headless screw available in any hardware shop.

  • Page 5: Bb Standard And Fd Mount Standard

    BB STANDARD AND FD MOUNT STANDARD The BB standard on Plasma 4 is PF86. FD Mount Standard: Brazed on standard same as other SCOTT road frames: Solace, Addict or Foil. HEADSET OPTIONS Plasma 4 headset Syncros Drop-In 1 1/8” black part number: 238600 Bearings standard: IS41/28.6 | IS41/30...

  • Page 6: Storage Box

    • IMPORTANT Plasma 4 framesets and complete bikes are delivered with an additional storage box Before assembling the seatpost into the frame, make sure the rear side of the that can be fitted to the top front end of the Toptube via 2 M5 Allen screws as shown seatpost (side where head is longer) is at the rear end of the frame on the sketch below.

  • Page 7: Guarantee On Scott Bikes

    This warranty covers defects in materials and workmanship at the time of transfer of risks To make a claim under this limited warranty, you must notify SCOTT of the claimed defect in frames, swingarms and forks (provided it is a fork of SCOTT) on SCOTT branded bikes within the warranty period and timely return the Product to SCOTT at your expense for sold completely assembled by SCOTT or an authorized SCOTT dealer (“Product”).
