REV Ritter EMW202R-1, EMW202T - Radio-Socket-Setone Manual

Please check the device for damage and read these instructions carefully before using the device.

Function

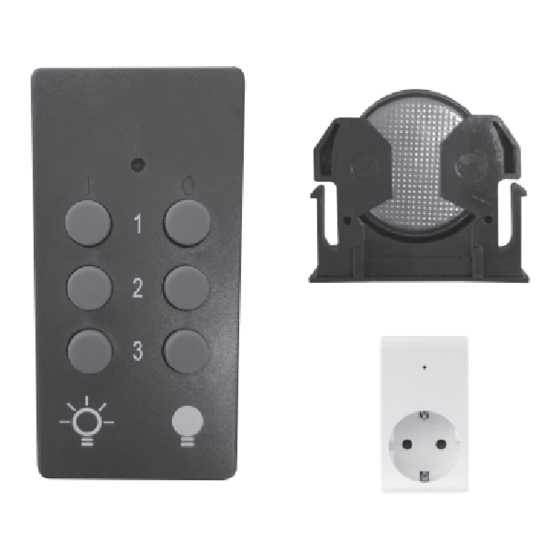

This wireless socket set consists of a remote control and three remote-controlled sockets. With this product you can operate any electrical and electronic equipment (e.g. lamps, TV, computers, Xmas decorative lighting....) up to 1000W within a 25m range (free field). You can switch on/off or dim your equipment from anywhere - even through furniture and walls. The range within buildings depends on the structures on site.

Set-up and use

Socket Set-up
The remote-controlled sockets are already connected at the factory.
Press the ON/OFF buttons on the remote control and to switch on/off the corresponding socket.
Note:
If you are operating several wireless socket sets, press the ON/OFF button on the remote control of each associated radio socket within the range to activate it.
Attention:
Never exceed the connected load of the individual remote controlled sockets of max. 1000W.

Remote control

A CR2032 battery is needed for the remote control. This is already in the device at the time of purchase. Remove the battery strip from its first use. Please note the position marked in the battery compartment (Fig. 1)! Using the wrong type of battery could bring about the risk of an explosion.


Renew the battery when the range of the remote control drops off sharply. Take the battery out if you won't be using it for some considerable time. We would suggest replacing the battery once a year. Ensure that used batteries are disposed of in an environmentally compatible manner by returning them free of charge to retail stores.

The transmitter diode does not turn on when the button is pressed:

  • Is the receiver turned on?
  • Is the receiver within range? Test it by aproaching.
  • Does the device which is to be switched match with the receiver?

The transmitter is not reaction at the device to be switched:

  • Check if there is another radio control device close by as for example a ear phone or a wireles chime? Change location.

The range is to short:

  • When using several receivers, has they minium distance between devices been observed (approx. 1.5 to 2m)?
  • Direct connection (no obstacles) between remote control and remote controlled socket lead to the ideal range. Is the switching connection hindered by many obstacles(furnitures, walls)?
  • Other transmitters closed by reduce the range to a few centimeters. Always one system should be used at the time.
  • Specific building features influence the range considerably. Slight changes of place can have a considerable impact on the range of the radio connection.
  • The batteries might be used. Please replace them.

Safety notes

  • Do not repair/modify the product. This will void the warranty.
  • Do not operate/discontinue use of the product if damaged or screws are loose.
  • Observe the maximum switching capacity of the product.
  • When using several wireless sockets, ensure these are adequately spaced (approx. 1.5m - 2m).
  • Do not expose the product to direct sunlight and protect it from extreme heat.
  • Do not operate the product whilst covered.
  • Do not operate the product on or near naked flames (e.g. candles).
  • Only use the product in dry indoor locations. Do not expose to drips or splash water.
  • The product must remain freely accessible and should be installed near the device to be switched.
  • The product is suitable for normal domestic use and must not be used as a safety device.
  • Do not connect devices (e.g. fan heaters) which must not be left unattended.
  • Only connect resistive load devices, e.g. lights.
  • Do not connect multiple wireless sockets in series.
  • This product must not be used by persons (including children) with physical, sensory or mental impairments or lacking experience and knowledge.
  • This product must be monitored and used by a responsible individual.
  • Keep out of the reach of allow children or unauthorised persons.
  • Unplug the product from the mains socket before cleaning. Only clean with a dry, lint-free cloth - do not use abrasive or corrosive cleaners.
  • This product cannot be operated as under normal conditions if there are strong radio frequency effects. This case, change the location.
  • This product is a wireless switching system and may only be used as such.
  • The transmit buttons on the remote control must not be operated continuously. Do not operate the buttons with electroconductive objects.

Technical data

  • Range up to 25m (free space)
  • The remote control can be used for up to 3 different devices
  • Battery CR2032 (included)
  • Switching capacity 1000W for each receiver
  • 230V~, 50Hz, 4,3A
  • Frequency: 433,92MHz
  • Frequency band: 433,05 - 434,79MHZ
  • Max. transmission power: < 10mW
  • Continuous operation possible
  • Single-pole disconnection
  • Operating temperature: 0°C - 35°C
  • Protection class: III
  • IP20, for indoor use in dry rooms only

WEEE-reference of disposal

In accordance with European defaults used electrical and electronics devices may no more be given to the unsorted waste. The symbol of the waste bin on wheels refers to the necessity of separate collection. Please help with environmental protection and see to it that this device is given to the for this purpose designated systems of waste sorting if you do not use it any longer. GUIDELINE 2012/19/EU of the EUROPEAN PARLIAMENT AND the COUNCIL of July 04th 2012 about electrical and electronics old devices.

Battery disposal notice

Batteries and accumulators are not to be disposed of in the normal house waste bin. Every user is legally obliged, to hand over all batteries and accumulators, irrespective of whether or not they contain harmful substances to a communal collection point in the local town area or to a trade dealer so that they can be disposed of in an orderly environmentally friendly manner. Batteries and accumulators should only be handed over when they are completely discharged! Guarantee details do not apply to any batteries provided or integrated.

CE conformity statement

Hereby, REV Ritter GmbH declares that the radio equipment type EMW202R-1, EMW202T is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.rev.de.

REV Ritter GmbH • Frankenstr. 1 - 4
D-63776 Mömbris • www.rev.de
Tel. +49 900 1 17 1070*
Fax. +49 180 5 007410
E-Mail: service@rev.de
