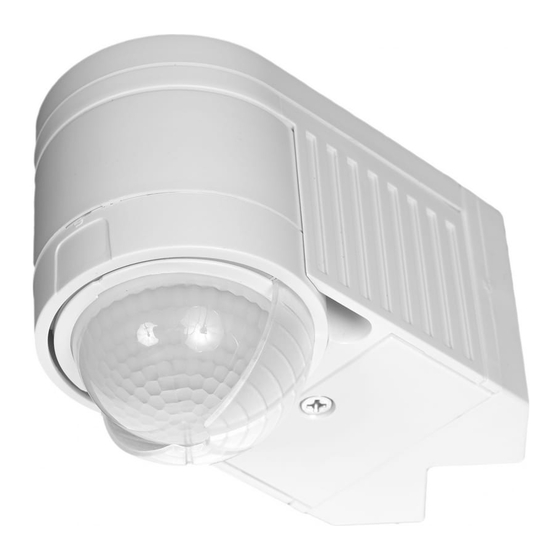

Infrared motion sensor

Advertisement

Available languages

Available languages

ИНФРАКРАСНЫЙ ДАТЧИК ДВИЖЕНИЯ
INFRARED MOTION SENSOR
28503 8
ИНСТРУКЦИЯ
INSTRUCTION

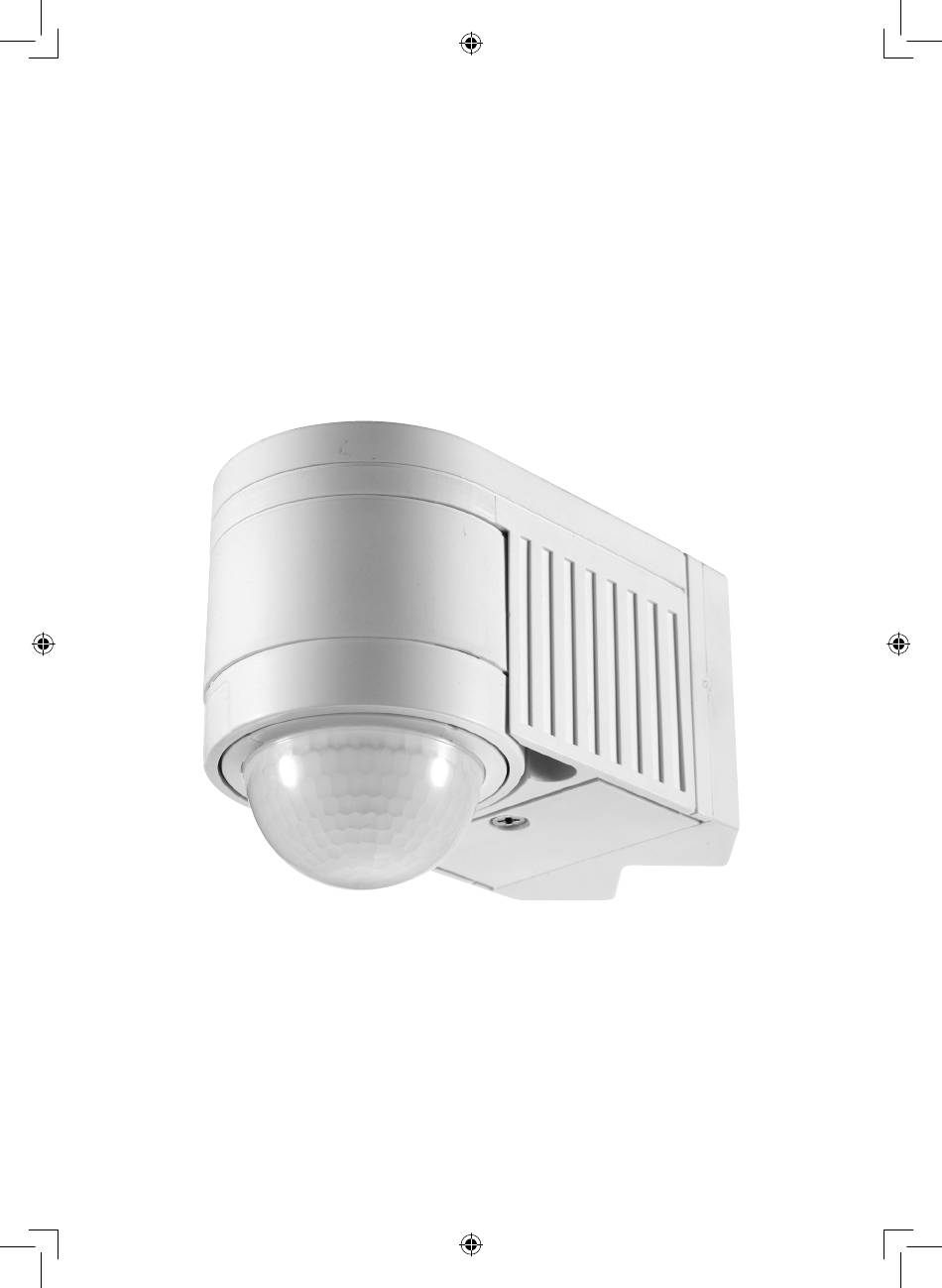

ANL_28503 8.indd 1
2016/2/23 11:20:11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28503 8 and is the answer not in the manual?

Questions and answers

Summary of Contents for REV Ritter 28503 8

  • Page 1 ИНФРАКРАСНЫЙ ДАТЧИК ДВИЖЕНИЯ INFRARED MOTION SENSOR 28503 8 ИНСТРУКЦИЯ INSTRUCTION ANL_28503 8.indd 1 2016/2/23 11:20:11...
  • Page 2 ИНФРАКРАСНЫЙ ДАТЧИК ДВИЖЕНИЯ Спасибо, что Вы выбрали инфракрасный датчик движения 28503 8! Данный продукт состоит из детектора повышенной чувствительности и встроенной круговой платы. В нём сочетаются автоматизм, удобство, безопасность, низкое потребление энергии и практичность. Широкая область обнаружения включает покрытие во всех направлениях – вверх, вниз, вправо и влево. Принцип...
  • Page 3 (см. рис. 1). Отвинтите винт под улавливающим экраном и снимите нижнюю панель (см. рис. 2). Затем отвинтите ещё два винта и разберите нижнюю панель на две части (см. рис. 3).). • На нижней панели находится отверстие для проводов. Просуньте провод питания в это отверстие. Подключите...
  • Page 4 Обратите внимание: при проведении тестирования днём, поставьте регулятор «LUX» до положения («Солнце»), в противном случае сенсор не будет работать! РАСПРОСТРАНЁННЫЕ ТРУДНОСТИ И СПОСОБЫ ИХ УСТРАНЕНИЯ • Загрузка не осуществляется: a. Проверьте правильность подключения кабелей питания и загрузки. b. Проверьте качество загрузки.. c.
  • Page 5 INFRARED MOTION SENSOR Welcome to use 28503 8 Infrared motion sensor! The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field.
  • Page 6 • Find the wire hole at the bottom and pass the power wire through the hole. Connect the power with the connection-wire column according to the Connection-wire Diagram. • Fix the bottom on the selected position with the inflated screw. •...
  • Page 7 SOME PROBLEM AND SOLVED WAY • The load does not work: a. Please check if the connection of power source and load is correct. b. Please check if the load is good. c. Please check if the settings of working light correspond to ambient light. •...
  • Page 8 Produced by REV Ritter (China) GmbH Произведено РЕВ Риттер (Чайна) ГмбХ Уполномоченная организация/импортер в РФ: 9F, Building A, Hengyuan Plaza Хэн Юань Плаза, стр. 9 Ф ООО ТД Пан Электрик 141402, Россия No.1988 Beisanhuan East Rd. Номер 1988, Бетсанхуан роуд, Московская...
