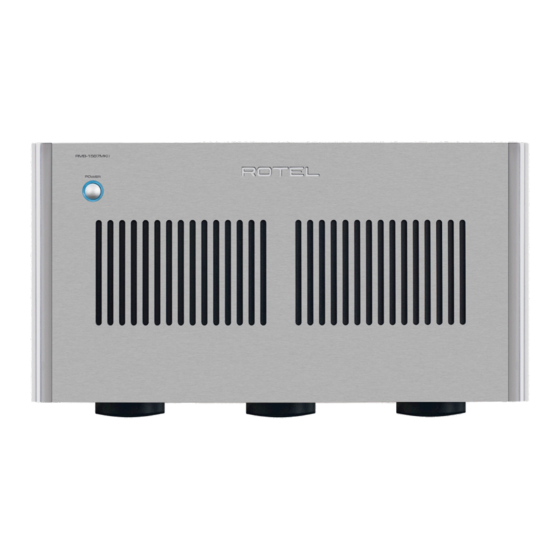

  • Page 1 RMB-1587MKII Seven Channel Power Amplifier Amplificateur de puissance à sept canaux Leistungsverstärker mit sieben Kanälen Amplificador de potencia de siete canales Owner’s Manual Amplificatore di potenza a sette canali Manuel d’utilisation Zevenkanaals eindversterker Bedienungsanleitung Sju kanals effektförstärkare Manual de Instrucciones Семиканальный...
  • Page 2 RMB-1587MKII Seven Channel Power Amplifier Important Safety Instructions The apparatus should be used in non tropical WARNING: There are no user serviceable parts climate. inside. Refer all servicing to qualified service personnel. The ventilation should not be impeded by covering the ventilation openings with items, WARNING: To reduce the risk of fire or electric such as newspapers, table-cloths, curtains, etc.
  • Page 3 Controlli e connessioni Bedienelemente und Anschlüsse Controlli e connessioni Kontroller och anslutningar Controles y Conexiones Органы управления и разъемы RMB-1587MKII : Power Button and Power LED Indicator Activate the unit or put it into standby mode. INPUT 1 INPUT 2...
  • Page 4 RMB-1587MKII Seven Channel Power Amplifier Figure 1-2: Controls and Connections Bedieningselementen en aansluitingen Commandes et Branchements Controlli e connessioni Bedienelemente und Anschlüsse Controlli e connessioni Kontroller och anslutningar Controles y Conexiones Органы управления и разъемы INPUT 1 INPUT 2 INPUT 3...
  • Page 5 Conexiones de Entrada Analógicas y de Salida a las Cajas Acústicas Analoge ingangen en luidsprekeruitgangen Collegamenti ingressi analogici ed uscite diffusori Anslutningar för högtalare och analoga ingångar Подсоединение источников сигнала на аналоговые входы и акустических систем MULTICHANNEL ANALOG OUTPUTS RMB-1587MKII INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5...
  • Page 6 RMB-1587MKII Seven Channel Power Amplifier Figure 3: Balanced (XLR) Inputs Gebalanceerde ingangen (XLR) Entrées symétriques (XLR Collegamenti ingressi bilanciati (XLR Anschlussdiagramm (symmetrische Balanserade anslutningar (XLR) (XLR-) Eingänge) Балансные (XLR) входы Entradas Balanceadas (XLR) MULTICHANNEL ANALOG OUTPUTS RMB-1587MKII INPUT 1 INPUT 2...

  • Page 7: Important Notes

    Bij het maken van de verbindingen: Zorg dat niet alleen de RMB-1587MKII, maar de gehele installatie uitstaat, als nog niet alle verbindingen gemaakt zijn. Zorg dat niet alleen de RMB-1587MKII, maar de gehele installatie ook uitstaat, als u verbindingen gaat wijzigen.

  • Page 8: Table Of Contents

    About Rotel ........

  • Page 9: A Word About Watts

    Please contact your authorized Rotel dealer for answers into 4 ohms, when seven channels are operating together at full power. to any questions you might have. In addition, all of us at Rotel welcome your questions and comments.

  • Page 10: Power Switch And Power Indicator 1 1

    We recommend using loudspeakers with a nominal impedance of 4 ohms 12 Volt Trigger Input and Output 2 2 or higher with the RMB-1587MKII. You should exercise some caution in The jack labeled IN is for connecting the 3.5mm MONO Plug/Cable driving multiple pairs of speakers in parallel configuration, because the carrying a +12 volt trigger signal to turn the amplifier on and off.

  • Page 11: Cooling Fans

    If you believe this has happened, to help ventilate the internal components. The rear panel of the RMB- contact your authorized Rotel dealer to get the fuse replaced. 1587MKII includes a 2 position fan selection switch including Fan Off...

  • Page 12: Specifications

    Weight Weight (net) 37.6 kg / 82.9 lbs All specifications are accurate at the time of printing. Rotel reserves the right to make improvements without notice. The Rotel logo is a registered trademark of The Rotel Co., Ltd. Tokyo, Japan.
  • Page 13 Email: sales@rotel.com Rotel USA 11763 95th Avenue North Maple Grove, MN 55369 Phone: +1 510-843-4500 Rotel Canada Kevro International 902 McKay Rd. Suite 4 Pickering, ON L1W 3X8 Canada Phone: +1 905-428-2800 www.rotel.com RMB-1587MKII Owner’s Manual Ver A 090523 English...
