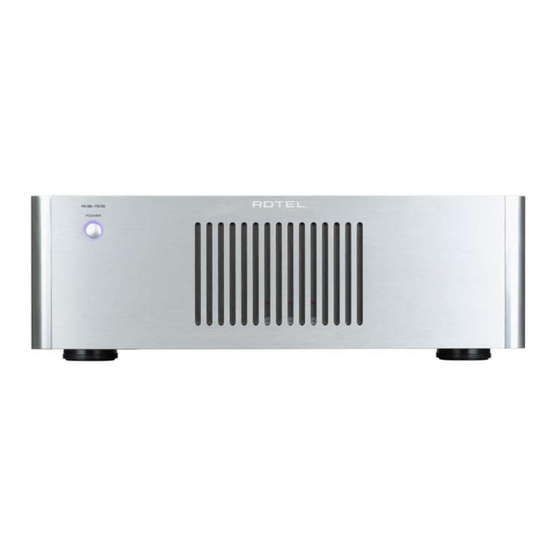

Rotel RMB-1506 Specifications

6-channel custom installation amplifier
Hide thumbs


Advertisement

Description
This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our
preamp/processor to add music throughout three additional living areas or "zones" of your home. You can also add another RMB-1506
for larger multizone applications that don't need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes
all of the most wanted custom installation features.
*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete
stealth operation.

Specifications

Power Output
50 watts x 6ch (20 Hz-20kHz, <0.03% THD, 8 ohms)
all channels driven
100 watts x 6ch (20 Hz-20kHz, <0.03% THD, 4 ohms)
IM Distortion
< 0.03%
Damping Factor (8 ohms)
>200
Gain
Input Sens. / Impedance
1.0 V / 20 k Ohms
6-Channel Custom Installation Amplifier
Frequency Response (+/-1 dB)
S/N Ratio (IHF A)
Power Consumption
Dimensions (W x H x D) mm
Weight
The Rotel Co. Ltd.
Rotel of America
10-10 Shinsen-Cho
54 Concord St.
Shibuya-Ku,
N. Reading, MA 01864
Tokyo 150, Japan
USA
T +1 978 664 3820
F +1 978 664 4109
RMB-1506
10Hz-100kHz
115 dB
450 watts
431 x 144 x 424 mm
(17 x 5 5/8 x 16 5/8 in)
15.3 kg (33.7 lbs)
www.rotel.com
Rotel Europe
Dale Road
Worthing
West Sussex BN11 2BH, UK
T +44 (0) 1903 221 763
F +44 (0) 1903 221 525
