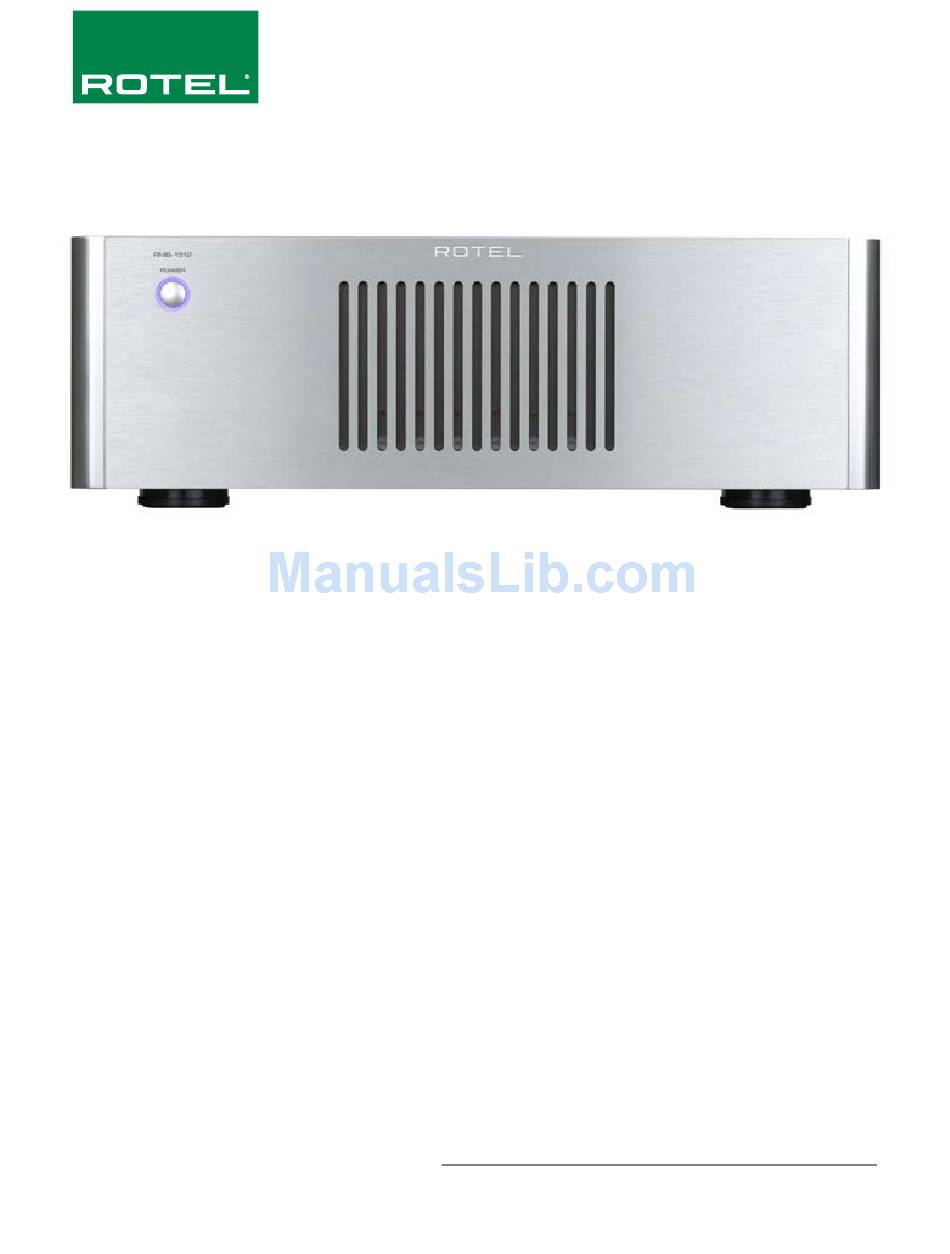

Rotel RMB-1512 Specifications

Description

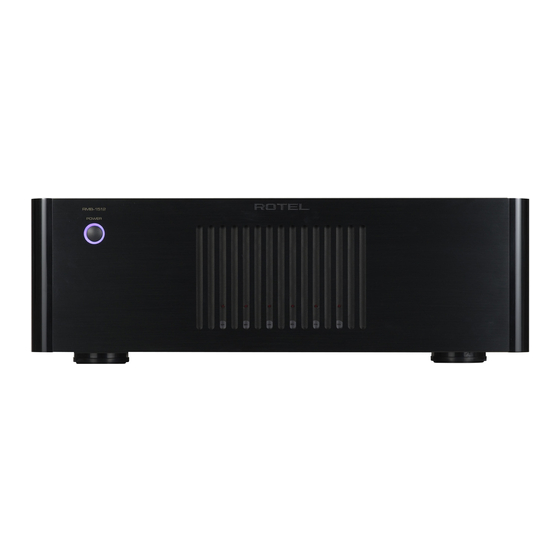

No longer do you need to purchase several large amplifiers to obtain a high performance multizone audio system. The RMB-1512
features an advanced Class D design that provides plenty of power (12 x 100 watts into 8 ohms) for the most demanding mulitzone
audio systems, but never runs the danger of overheating itself or other electronic components placed in the same vicinity. The RMB-
1512 features everything needed for remote operation and custom installation including 12 volt trigger signal sensing, input bussing,
sum-to-mono, buffered link output, front panel attenuation control, five-way binding posts and screw terminals.
*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete
stealth operation.

Specifications

Power Output 100 watts x 12ch (20 Hz-20kHz, <0.03% THD, 8 ohms)
all channels driven 200 watts x 12ch (20 Hz-20kHz, <0.03% THD, 4 ohms)
IM Distortion <0.02%
Damping Factor (8 ohms) >200
Input Sens. / Impedance 1.25 V/9.9 k Ohms
12-Channel Custom Installation Amplifier
Frequency Response (±1 dB)
S/N Ratio (IHF A)
Dimensions (W x H x D) mm
Dimensions (W x H x D) in
The Rotel Co. Ltd. Rotel of America
10-10 Shinsen-Cho 54 Concord St.
Shibuya-Ku, N. Reading, MA 01864
Tokyo 150, Japan USA
T +1 978 664 3820
F +1 978 664 4109
RMB-1512
10Hz-40kHz (+3dB)
109 dB
431 x 144 x 407 mm
3U / 17 x 5 5/8 x 16 in
www.rotel.com
Rotel Europe
Dale Road
Worthing
West Sussex BN11 2BH, UK
T +44 (0) 1903 221 763
F +44 (0) 1903 221 525
