Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not tighten screws or bolts until the assembly is completed.
3. To level the chairs or table, before tightening all the screws, the chairs or table must be place on a flat
surface and then tighten the screws.
4. Please put all parts on a non-abrasive floor before assembly and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PARTS LIST
NO.
COMPONENT
A
CHAIR BACK
B
SEAT FRAME
C
FRONT LEG
CUSHION
D
SEAT
Assembly Instructions

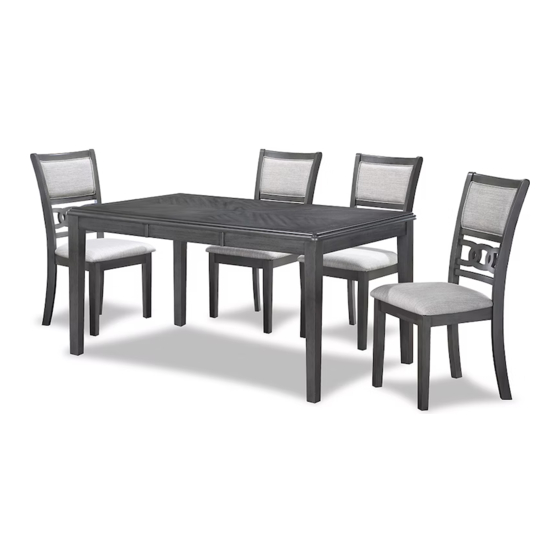

GIA DINING CHAIR (SET INCLUDES 4 CHAIRS)
SKETCH
QTY.
4 PCS
4 PCS
8 PCS
4 PCS
MADE IN VIETNAM
ITEM NO. D1701-160
GIA 60" RECTANGLE DINING TABLE
HARDWARE LIST
NO.
COMPONENT
FLAT WASHER
1
5/16" DIA.
SPRING
2
WASHER
5/16" DIA.
NUT
3
5/16" DIA.
ALLEN
WRENCH
4
5/16" DIA.
SHORT BOLT
5
1/4" x 1 3/4"
LONG BOLT
6
1/4" x 3"
WOOD SCREW
7
#8 x 1 1/2"
SKETCH
QTY.
44 PCS
44 PCS
16 PCS
1 PC
12 PCS
16 PCS
24 PCS
PAGE: 1 OF 3
Advertisement
Table of Contents
Related Manuals for New Classic Furniture GIA D1701-160
Summary of Contents for New Classic Furniture GIA D1701-160
- Page 1 Assembly Instructions ITEM NO. D1701-160 GIA 60” RECTANGLE DINING TABLE GIA DINING CHAIR (SET INCLUDES 4 CHAIRS) Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions ITEM NO. D1701-160 GIA 60” RECTANGLE DINING TABLE GIA DINING CHAIR (SET INCLUDES 4 CHAIRS) To assemble the chairs, please follow the following steps and repeat for each chair: STEP 1 STEP 2 Lay the chair back on soft clean surface and install Insert long bolts to secure the seat frame.
- Page 3 Assembly Instructions ITEM NO. D1701-160 GIA 60” RECTANGLE DINING TABLE GIA DINING CHAIR (SET INCLUDES 4 CHAIRS) PARTS LIST HARDWARE LIST COMPONENT SKETCH QTY. COMPONENT SKETCH QTY. FLAT WASHER 1 PC 8 PCS TABLE TOP 5/16” DIA. SPRING WASHER TABLE LEG 4 PCS 8 PCS 5/16”...
