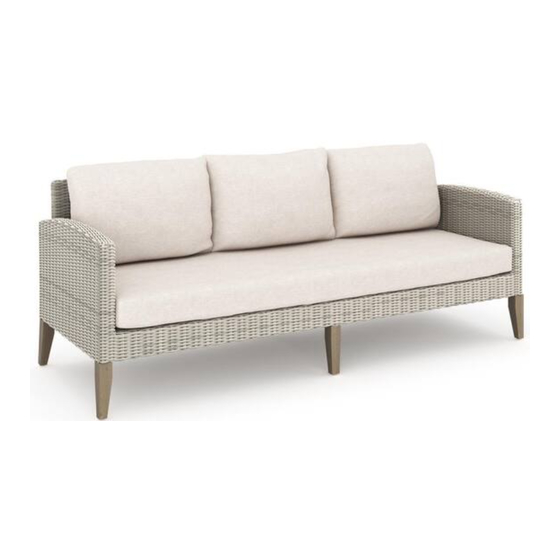

New Classic Furniture CAREZZA SOFA G852G Assembly Instructions Manual

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with t assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly,and follow the assembly steps to assemble
your newly purchased product correctly and efficently.
PARTS LIST
NO. COMPONENT
LEFT LEG
A
B
RIGHT LEG
C CENTER LEG
D
SEAT FRAME
E SEAT CUSHION
F BACK CUSHION
Assembly Instructions
SKETCH QTY.
2 PCS
2 PCS
2 PC
1 PC
1 P C
3 P CS
MADE IN VIETNAM
ITEM NO. G852G
CAREZZA SOFA
HARDWARE LIST
NO. COMPONENT
BOLT
1
6X30X13mm.
PRING WASHER
2
2XØ8XØ15mm.
FLAT WASHER
3
2XØ6XØ16mm.
ALLEN KEY
4
M4.
SKETCH QTY.
12 PCS
12 PCS
12 PCS
1 PC
PAGE: 1 OF 2
