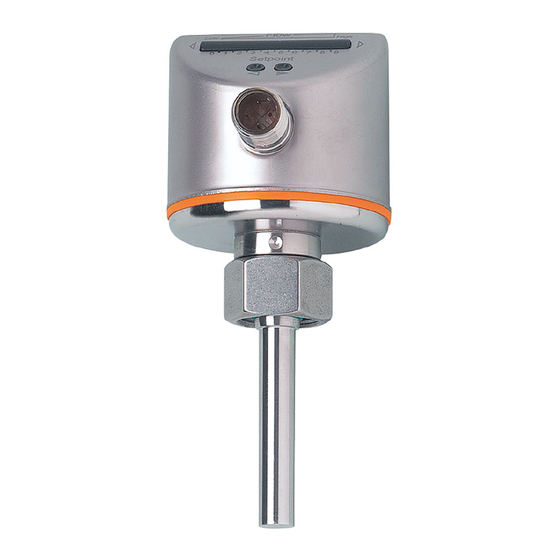

IFM Electronic efector 300 SI0519 Operating Instructions Manual

IFM Electronic efector 300 SI0519 Operating Instructions Manual

Flow monitors

Advertisement

Quick Links

Operating instructions
Flow monitors
UK
SI0519
SI0520

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the efector 300 SI0519 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM Electronic efector 300 SI0519

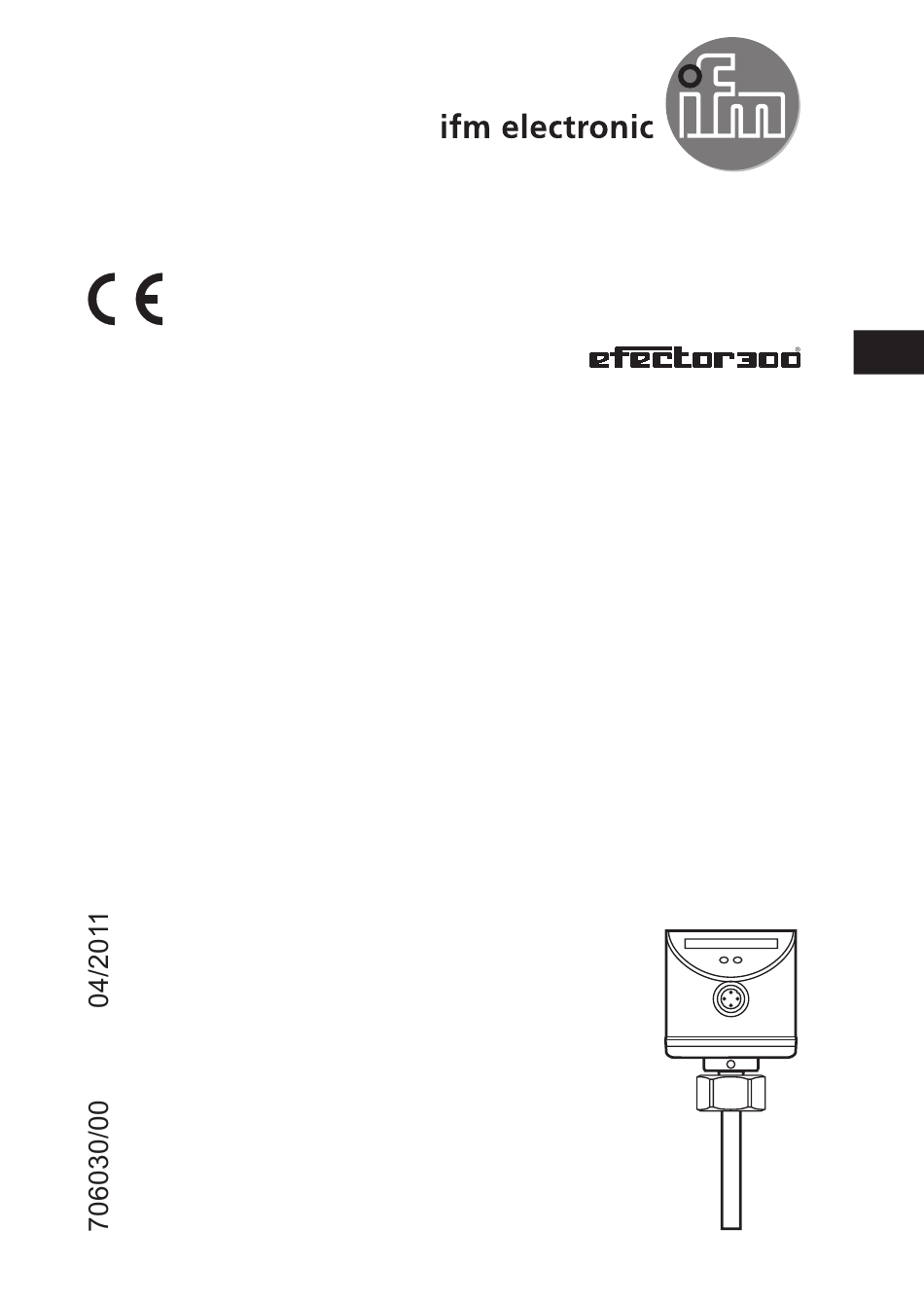

  • Page 1 Operating instructions Flow monitors SI0519 SI0520...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������3 1�1 Explanation of symbols ����������������������������������������������������������������������������������3 2 Safety instructions �����������������������������������������������������������������������������������������������3 3 Functions and features ����������������������������������������������������������������������������������������4 3�1 Application area ��������������������������������������������������������������������������������������������4 3�2 Operating principle flow monitoring ���������������������������������������������������������������4 3�3 Funktionsweise Temperaturüberwachung �����������������������������������������������������4 4 Installation������������������������������������������������������������������������������������������������������������5 4�1 Installation location ����������������������������������������������������������������������������������������5 4�2 Sources of interference in the pipe system ���������������������������������������������������6 4�3 Mounting operation ����������������������������������������������������������������������������������������6 5 Electrical connection ��������������������������������������������������������������������������������������������7 6 Operating and display elements ��������������������������������������������������������������������������7...
  • Page 3: Preliminary Note

    1 Preliminary note 1.1 Explanation of symbols ► Instruction > Reaction to the action → Cross-reference Important note Non-compliance can result in malfunctions or interference� LED lights green LED lights orange LED lights red LED flashes 2 Safety instructions • Please read the product description prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 4: Functions And Features

    3 Functions and features 3.1 Application area The unit monitors the flow of liquid and gaseous media� 3.2 Operating principle flow monitoring • The unit detects the flow speed to the calorimetric measuring principle and switches the output: - output closed if medium is flowing / output open if no medium is flowing� This applies to the unit on delivery: output = normally open�...
  • Page 5: Installation

    4 Installation Using process adapters the unit can be adapted to different process connections� • Adapters have to be ordered separately as accessories� A correct fit of the unit and ingress resistance of the connection are only en- sured using ifm adapters� • For small flow rates ifm adapter blocks are available�...
  • Page 6: 4�2 Sources Of Interference In The Pipe System

    4.2 Sources of interference in the pipe system Components integrated in the pipes, bends, valves, reductions, etc� lead to turbu- lence of the medium� This affects the function of the unit� Recommendation: Adhere to the distances between sensor and sources of inter- ference: 5...10 x D 3...5 x D...
  • Page 7: Electrical Connection

    5 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to� Voltage supply to EN 50178, SELV, PELV� ► Disconnect power� ► Connect the unit as follows: Core colours of ifm sockets: P: programming wire (for remote adjustment) → chapter 9) 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black)
  • Page 8: Set-Up And Settings For Water

    7 Set-up and settings for water (For media other than water → 8.1: Low flow adjustment). ► Switch on the supply voltage� > All LEDs light and go out again step by step� During this time the output is closed (if configured as normally open)� The unit is in the operating mode� ►...
  • Page 9: 7�2 High Flow Adjustment (Optional)

    7.2 High flow adjustment (optional) The unit determines the existing flow as normal flow and adapts the display repre- sentation (all LEDs except the switch point LED light green)� ► Let the normal flow circulate in the installation� ► Press the pushbutton and keep it pressed�...
  • Page 10: 8�3 Restore The Factory Setting (Reset)

    8.3 Restore the factory setting (reset) ► Press the pushbutton for at least 15 s� > LED 9 lights, after approx� 5 s it flashes� > After approx� 15 s LEDs 0���9 flash orange� ► Release the pushbutton� All settings are reset to the factory setting: - operating area: 5 ���100 cm/s for water - switch point: LED 7 - output function: NO...
  • Page 11: Operation

    11 Operation After every power on all LEDs light and go out again step by step (during this time the output is closed if configured as normally open)� The unit is then ready for operation� In case of power failure or interruption all settings remain� Operating indicators Green LED bar: Current flow within the representa- tion range�...
  • Page 12: Scale Drawing

    13 Scale drawing 1: LED bar display 2: set button 3: tightening torque 25 Nm 14 Technical data Application area ����������������������������������������������������������������������������������������Liquids and gases Operating voltage [V] ����������������������������������������������������������������������������������������19 ��� 36 DC Current rating [mA] ����������������������������������������������������������������������������������������������������������250 Short-circuit protection, pulsed; reverse polarity / overload protection Voltage drop [V] �������������������������������������������������������������������������������������������������������������<...
  • Page 13 Liquids Medium temperature [°C] ������������������������������������������������������������������������������������ -25 ��� +80 Setting range [cm/s]��������������������������������������������������������������������������������������������������3 ��� 300 Greatest sensitivity [cm/s] ������������������������������������������������������������������������������������������3���100 Temperature gradient [K/min] �����������������������������������������������������������������������������������������300 Gases Medium temperature [°C] ������������������������������������������������������������������������������������ -25 ��� +80 Setting range [cm/s]��������������������������������������������������������������������������������������������200 ��� 3000 Greatest sensitivity [cm/s]�������������������������������������������������������������������������������������200 ��� 800 Switch point accuracy [cm/s] ��������������������������������������������������������������������������������± 2���± 10 Hysteresis [cm/s] ����������������������������������������������������������������������������������������������������������2���5 Repeatability [cm/s] ������������������������������������������������������������������������������������������������������1���5 Temperature drift [cm/s x 1/K]�����������������������������������������������������������������������������������������0�1...
