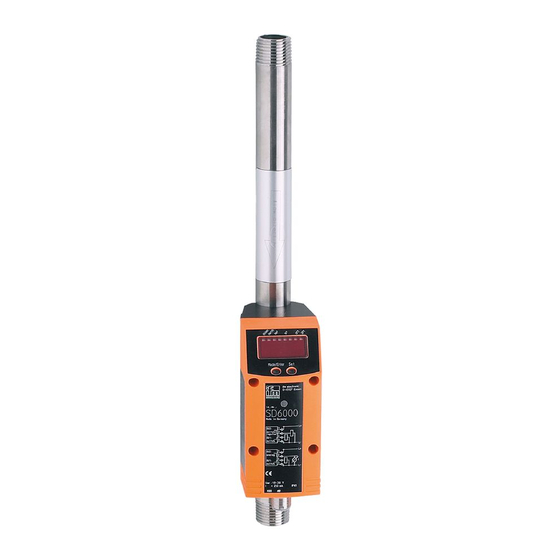

Flow rate meter for gases
Table of Contents

Advertisement

Quick Links

Operating instructions
Flow rate meter for gases
UK
SD6101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the efector 300 SD6101 and is the answer not in the manual?

Questions and answers

Summary of Contents for IFM Electronic efector 300 SD6101

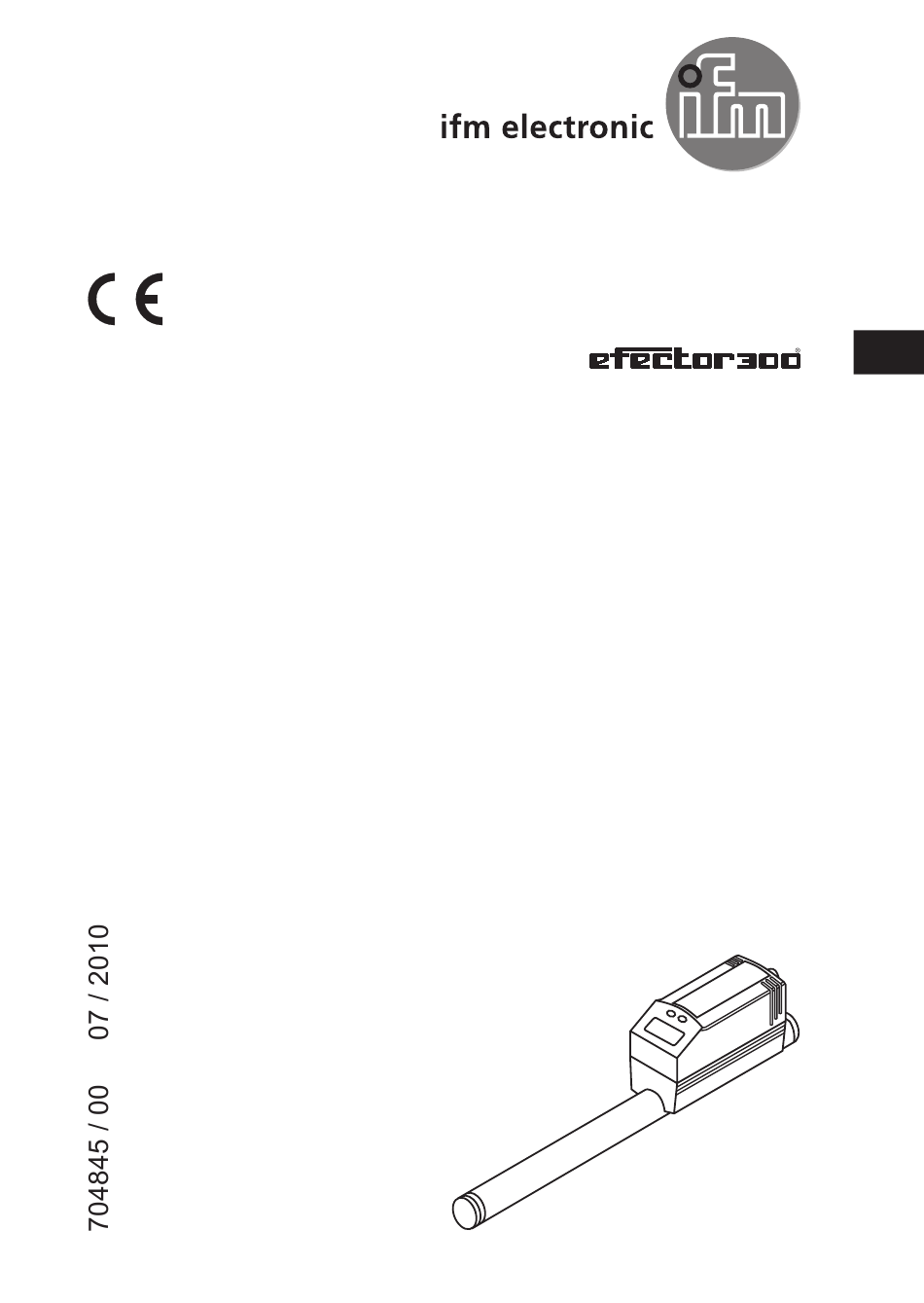

  • Page 1 Operating instructions Flow rate meter for gases SD6101...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������5 4 Function ���������������������������������������������������������������������������������������������������������������5 4�1 Processing of the measured signals ��������������������������������������������������������������5 4�2 Volumetric flow monitoring �����������������������������������������������������������������������������5 4�3 Consumed quantity monitoring (totalizer function) ����������������������������������������5 4�3�1 Consumed quantity monitoring with pulse output ���������������������������������6 4�3�2 Consumed quantity monitoring with preset meter ��������������������������������6 4�4 Monitoring of temperatures ����������������������������������������������������������������������������6...
  • Page 3 9�3�3 Settings for meter reset controlled by the program ����������������������������16 9�3�4 Switch off the meter reset �������������������������������������������������������������������17 9�4 User settings (optional) ��������������������������������������������������������������������������������17 9�4�1 Determine the standard unit of measurement for volumetric flow ������17 9�4�2 Configuration of the standard display �������������������������������������������������17 9�4�3 Setting the damping of the measured values �������������������������������������17 9�4�4 Setting the error behaviour of OUT1 / OUT2 ��������������������������������������17 9�4�5 Selection of the medium to be monitored �������������������������������������������18...
  • Page 4: Preliminary Note

    1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of buttons, switches or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference� 2 Safety instructions • Please read this document prior to installing the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 5: Functions And Features

    3 Functions and features The unit monitors the standard volume flow of gases� It detects the 3 process categories volumetric flow, consumed quantity, medium temperature� Applications: • argon (Ar) • carbon dioxide (CO2) • nitrogen (N2) Selection of the medium to be monitored → 9.4.5. All data refer to standard volume flow according to DIN ISO 2533, i�e� volume flow at 1013 hPa, 15°C and 0% relative air humidity�...
  • Page 6: 4�3�1 Consumed Quantity Monitoring With Pulse Output

    • The current meter count can be indicated� • In addition the value before the last reset is stored� This value can also be indicated� The meter saves the totalled consumed quantity every 10 minutes� After a power failure this value is available as the current meter count� If a time-controlled reset is set, the elapsed time of the set reset interval is also stored�...
  • Page 7: 4�6 Volumetric Flow Monitoring / Analogue Function

    • Window function / normally open (fig� 2): [OUx] = [Fno]� • Window function / normally closed (fig� 2): [OUx] = [Fnc]� The width of the window can be set by means of the distance between SPx and rPx� SPx = maximum value, rPx = minimum value� HY = hysteresis;...
  • Page 8: Installation

    Factory setting Measuring range scaled I [mA] I [mA] MEW = final value of the measuring range In the set measuring range the output signal is between 4 and 20 mA� It is also indicated: • Volumetric flow above the measuring range: output signal > 20 mA� • Flow rate below the measuring range: output signal between 3�6 and 4 mA�...
  • Page 9: 5�3 Mounting Position

    In case of turbulances at the inflow side additional baffled pipes (B) are recom- mended: changes to the pipe diameter B = 5 x pipe diameter 90° elbow B = 5 x pipe diameter two 90° elbows, one plane B = 10 x pipe diameter two 90°...
  • Page 10: 5�4 Installation In Pipes

    5.4 Installation in pipes Integrate the pipe length so that the direction of flow (1) and the marking arrow (2) show in the same direction� 6 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to�...
  • Page 11: Operating And Display Elements

    7 Operating and display elements 1 2 3 4 5 6 7 8 Mode/Enter Set 1 to 8: Indicator LEDs - LED 1 = current volumetric flow in standard cubic feet/minute (scfm)� - LED 2 = current volumetric flow in standard cubic feet/hour (scfh)� - LED 3 = current consumed quantity since the last reset in standard cubic feet (scf)�...
  • Page 12: Menu

    8 Menu 8.1 Menu structure scfm scfh (scf)* °F scfm = [Mode/Enter] / = [Set] = current meter count in standard m )* = stored meter count in standard m...
  • Page 13: 8�2 Explanation Of The Menu

    8.2 Explanation of the menu Maximum / minimum value for volumetric flow, at which OUT1 changes its SP1/rP1 switching status� ImPS Pulse value� ImPR Pulse repetition active (= pulse output) or not active (= function preset meter)� Output function for OUT1 (volumetric flow or consumed quantity): - Switching signal for limit values: hysteresis function or window function, normally open or normally closed�...
  • Page 14: Parameter Setting

    9 Parameter setting During parameter setting the unit remains in the operating mode� It continues its monitoring function with the existing parameters until the parameter setting has been completed� 9.1 General parameter setting 3 steps must be taken for each parameter set: Parameter selection ►...
  • Page 15: 9�2 Settings For Volumetric Flow Monitoring

    • Change from menu level 1 to menu level 2 ► Press [Mode/Enter] until [EF] is displayed� Mode/EnterSet ► Press [Set] briefly� > The first parameter of the sub-menu Mode/EnterSet is displayed (here: [HI])� • Locking / unlocking The unit can be locked electronically to prevent unintentional wrong settings� ►...
  • Page 16: 9�2�2 Settings For Limit Value Monitoring With Out2

    9.2.2 Settings for limit value monitoring with OUT2 ► Select [OU2] and set the switching function: [Hno] = hysteresis function/normally open, [Hnc] = hysteresis function/normally closed, [Fno] = window function/normally open, [Fnc] = window function/normally closed� ► Select [SP2] and set the value at which the output switches� ►...
  • Page 17: 9�3�4 Switch Off The Meter Reset

    9.3.4 Switch off the meter reset ► Select [rTo] and set [OFF]� The meter is only reset after overflow (= factory setting)� 9.4 User settings (optional) 9.4.1 Determine the standard unit of measurement for volumetric flow ► Select [Uni] and set the unit of measurement: [SCFm] = flow rate in standard cubic feet / minute�...
  • Page 18: 9�4�5 Selection Of The Medium To Be Monitored

    9.4.5 Selection of the medium to be monitored ► Select [MEDI] and determine the required medium: - [Ar] = argon� - [CO2] = carbon dioxide� - [N2] = nitrogen� Changing to another medium modifies the set limit values for switching signals and the analogue signal�...
  • Page 19: 9�6 Setting Of The Preset Meter / Pulse Value (Imps)

    9.6 Setting of the preset meter / pulse value (ImPS) 7 setting ranges are available: indication in steps of value 0 �0 4 0 ��� 9 �9 8 0 0�020 scf 0�040���9�980 scf 1 0 �0 0 ��� 9 9 �9 8 0�02 scf 10�00���99�98 scf 1 0 0 �0...
  • Page 20 ► Press [Set] and keep it The flashing digit is increased, 9 is followed by 0 and the first pressed� new digit (left) becomes active� 8 �1 8 3 [Set] permanently pressed 8 �1 9 3 [Set] kept pressed 8 �1 0 3 If digit 1 is increased this way, the display changes to the next higher setting range (9 is followed by 10)�...
  • Page 21: Operation

    10 Operation Correct operation and compliance with the measurement accuracy can only be ensured if the environmental conditions specified in the “Technical data” (→ chapter 12) are adhered to� Ensure that the maximum pressure range, measuring range and permitted operating temperature are not exceeded� After power on and expiry of the power-on delay time (approx� 0�5 s) the unit is in the Run mode (= normal operating mode)�...
  • Page 22: 10�4 General Operating Conditions

    10.4 General operating conditions The unit is maintenance-free for media which will not adhere to the measuring probes� • From time to time check the measuring probes visually for build-up� • If necessary, clean them at regular intervals� To do so, use a suitable cleaning liquid (e�g�...
  • Page 23: Technical Data

    12 Technical data Operating voltage [V] �������������������������������������������������� 19���30 DC to EN50178, SELV, PELV Current rating [mA] ����������������������������������������������������������������������������������������������������2 x 250 Protection: short circuit, reverse polarity, overload Voltage drop [V] ����������������������������������������������������������������������������������������������������������������< 2 Current consumption typ� [mA] ����������������������������������������������������������������������������������������100 Analogue output ������������������������������������������������������4���20 mA; measuring range scaleable Max. load [Ω] �������������������������������������������������������������������������������������������������������������������500 Pulse value ����������������������������������������������������������������������������������������...
  • Page 24: 12�1 Setting Ranges

    Operating temperature [°C] ������������������������������������������������������������������������������������������0���60 Medium temperature [°C] ����������������������������������������������������0���60 (rel� humidity: max� 90%) Storage temperature [°C]������������������������������������������������������������������������������������������ -25���85 Pressure resistance [bar]���������������������������������������������������������������������������������������������������16 Material (wetted parts) ����������������������� stainless steel (304S15); ceramics glass passivated; PEEK; polyester; Viton; aluminium anodised Housing materials �������� stainless steel (304S15), Viton; PBT-GF 20, PC (APEC); Makrolon Protection ���������������������������������������������������������������������������������������������������������������...
  • Page 25: Factory Setting

    13 Factory setting Factory setting User setting ImPS 0.04 ImPR 1670 1650 4175 FOU1 FOU2 SCFH FLOW SELd MEDI More information at www�ifm�com...
