Operating instructions
Compressed air meter
UK
SD9000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Efector 300 SD9000 and is the answer not in the manual?

Questions and answers

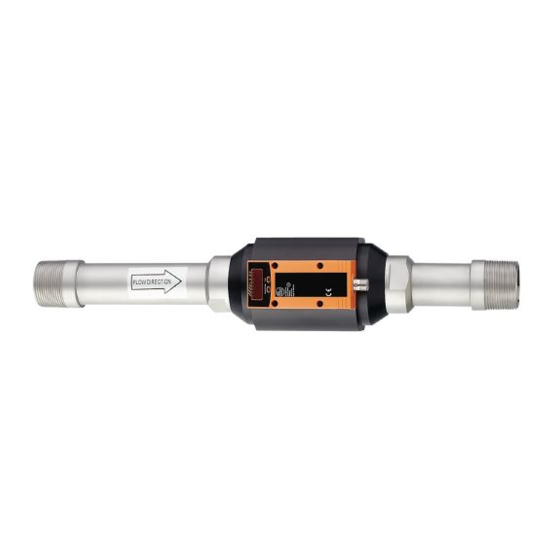

Summary of Contents for IFM Electronic Efector 300 SD9000

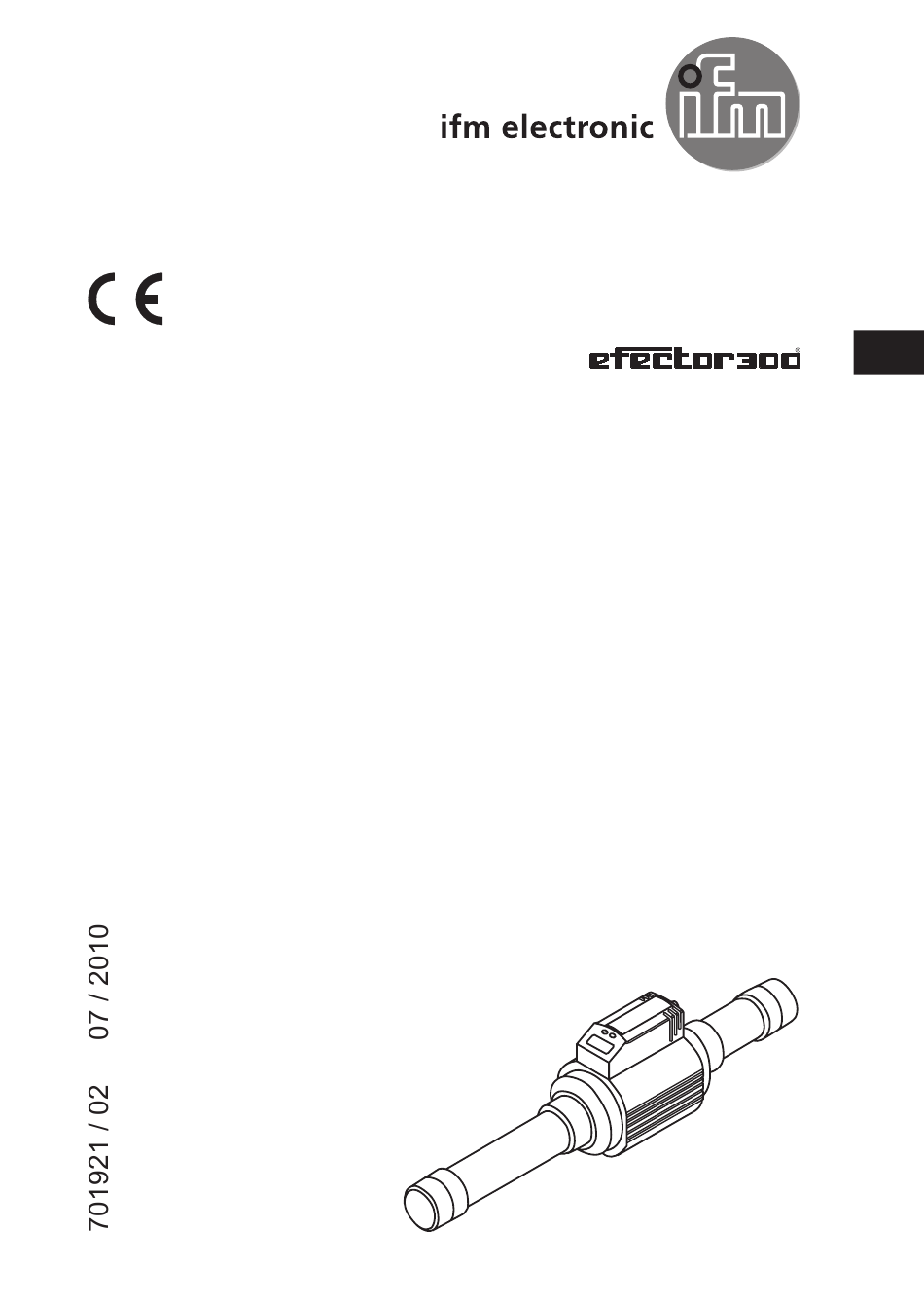

  • Page 1 Operating instructions Compressed air meter SD9000...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������5 4 Function ���������������������������������������������������������������������������������������������������������������5 4�1 Processing of the measured signals ��������������������������������������������������������������5 4�2 Volumetric flow monitoring �����������������������������������������������������������������������������5 4�3 Consumed quantity monitoring (totalizer function) ����������������������������������������5 4�3�1 Consumed quantity monitoring with pulse output ���������������������������������6 4�3�2 Consumed quantity monitoring with preset meter ��������������������������������6 4�4 Monitoring of temperatures ����������������������������������������������������������������������������6...
  • Page 3 9�3�3 Settings for meter reset controlled by the program ����������������������������16 9�3�4 Switch off the meter reset �������������������������������������������������������������������17 9�4 User settings (optional) ��������������������������������������������������������������������������������17 9�4�1 Determine the standard unit of measurement for volumetric flow ������17 9�4�2 Configuration of the standard display �������������������������������������������������17 9�4�3 Setting the damping of the measured values �������������������������������������17 9�4�4 Setting the error behaviour of OUT1 / OUT2 ��������������������������������������17 9�5 Service-Funktionen ��������������������������������������������������������������������������������������18...
  • Page 4: Preliminary Note

    1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of buttons, switches or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference� 2 Safety instructions • Please read this document prior to installing the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 5: Functions And Features

    3 Functions and features The unit monitors the standard volume flow of operating compressed air� It detects the 3 process categories volumetric flow, consumed quantity, medium temperature� Applications: compressed air equipment� All data refer to standard volume flow according to DIN ISO 2533, i�e� volume flow at 1013 hPa, 15°C and 0% relative air humidity�...
  • Page 6: 4�3�1 Consumed Quantity Monitoring With Pulse Output

    The meter saves the totalled consumed quantity every 10 minutes� After a power failure this value is available as the current meter count� If a time-controlled reset is set, the elapsed time of the set reset interval is also stored� So the possible data loss can be maximum 10 minutes�...
  • Page 7: 4�6 Volumetric Flow Monitoring / Analogue Function

    HY = hysteresis; FE = window When set to the window function the set and reset points have a fixed hysteresis of 0�25 % of the final value of the measuring range� This keeps the switching state of the output stable if the volumetric flow varies slightly�...
  • Page 8: Installation

    Factory setting Measuring range scaled I [mA] I [mA] MEW = final value of the measuring range In the set measuring range the output signal is between 4 and 20 mA� It is also indicated: • Volumetric flow above the measuring range: output signal > 20 mA� • Flow rate below the measuring range: output signal between 3�6 and 4 mA�...
  • Page 9: 5�3 Mounting Position

    In case of turbulances at the inflow side additional baffled pipes (B) are recom- mended: changes to the pipe diameter B = 13 x pipe diameter 90° elbow B = 13 x pipe diameter two 90° elbows, one plane B = 18 x pipe diameter two 90°...
  • Page 10: 5�4 Installation In Pipes

    5.4 Installation in pipes Integrate the pipe length so that the direction of flow (1) and the marking arrow (2) show in the same direction� 6 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to�...
  • Page 11: Operating And Display Elements

    7 Operating and display elements 1 2 3 4 5 6 7 8 Mode/Enter Set 1 to 8: Indicator LEDs - LED 1 = current volumetric flow in standard litres/minute (Nl/min)� - LED 2 = current volumetric flow in standard cubic metres/hour (Nm /h)�...
  • Page 12: Menu

    8 Menu 8.1 Menu structure Nl/min S /h S °C Nl/min S = [Mode/Enter] / = [Set] = current meter count in standard m )* = stored meter count in standard m...
  • Page 13: 8�2 Explanation Of The Menu

    8.2 Explanation of the menu Maximum / minimum value for volumetric flow, at which OUT1 changes its SP1/rP1 switching status� ImPS Pulse value� ImPR Pulse repetition active (= pulse output) or not active (= function preset meter)� Output function for OUT1 (volumetric flow or consumed quantity): - Switching signal for limit values: hysteresis function or window function, normally open or normally closed�...
  • Page 14: Parameter Setting

    9 Parameter setting During parameter setting the unit remains in the operating mode� It continues its monitoring function with the existing parameters until the parameter setting has been completed� 9.1 General parameter setting 3 steps must be taken for each parameter set: Parameter selection ►...
  • Page 15: 9�2 Settings For Volumetric Flow Monitoring

    • Change from menu level 1 to menu level 2 ► Press [Mode/Enter] until [EF] is displayed� Mode/EnterSet ► Press [Set] briefly� > The first parameter of the sub-menu Mode/EnterSet is displayed (here: [HI])� • Locking / unlocking The unit can be locked electronically to prevent unintentional wrong settings� ►...
  • Page 16: 9�2�2 Settings For Limit Value Monitoring With Out2

    9.2.2 Settings for limit value monitoring with OUT2 ► Select [OU2] and set the switching function: [Hno] = hysteresis function/normally open, [Hnc] = hysteresis function/normally closed, [Fno] = window function/normally open, [Fnc] = window function/normally closed� ► Select [SP2] and set the value at which the output switches� ►...
  • Page 17: 9�3�4 Switch Off The Meter Reset

    9.3.4 Switch off the meter reset ► Select [rTo] and set [OFF]� The meter is only reset after overflow (= factory setting)� 9.4 User settings (optional) 9.4.1 Determine the standard unit of measurement for volumetric flow ► Select [Uni] and set the unit of measurement: - [Lmin] = flow rate in standard litres / minute�...
  • Page 18: 9�5 Service-Funktionen

    9.5 Service-Funktionen 9.5.1 Reading the min./max. values for volumetric flow ► Select [HI] or [LO] and press [Set] briefly� [HI] = maximum value, [LO] = minimum value� Delete memory: ► Select [HI] or [LO]� ► Press [Set] and keep it pressed until [----] is displayed� ►...
  • Page 19: 9�6 Setting Of The Preset Meter / Pulse Value (Imps)

    9.6 Setting of the preset meter / pulse value (ImPS) 7 setting ranges are available: indication in steps of value 0 �0 0 5 ��� 9 �9 9 9 0�001 Nm³ 0�005���9�999 Nm³ 1 0 �0 0 ��� 9 9 �9 9 0�01 Nm³...
  • Page 20 ► Press [Set] and keep it The flashing digit is increased, 9 is followed by 0 and the first pressed� new digit (left) becomes active� 8 �1 8 3 [Set] permanently pressed 8 �1 9 3 [Set] kept pressed 8 �1 0 3 If digit 1 is increased this way, the display changes to the next higher setting range (9 is followed by 10)�...
  • Page 21: Operation

    10 Operation Correct operation and compliance with the measurement accuracy can only be ensured if the environmental conditions specified in the “Technical data” (→ chapter 12) are adhered to� Ensure that the maximum pressure range, measuring range and permitted operating temperature are not exceeded� After power on and expiry of the power-on delay time (approx� 0�5 s) the unit is in the Run mode (= normal operating mode)�...
  • Page 22: 10�3 Error Indication

    10.3 Error indication [SC1] Short circuit in OUT1�* [SC2] Short circuit in OUT2�* [SC] Short circuit in both outputs�* [OL] Measured value > 120% of the final value of the measuring range� [UL] Measured value < lowest value of the measuring range� [Err] Fault in the measuring probe�...
  • Page 23: Scale Drawing

    11 Scale drawing...
  • Page 24: Technical Data

    12 Technical data Operating voltage [V] ������������������������������������������������������������������������������������������19���30 DC Current rating [mA] ����������������������������������������������������������������������������������������������������2 x 250 Protection: short circuit, reverse polarity, overload Voltage drop [V] ����������������������������������������������������������������������������������������������������������������< 2 Current consumption typ� [mA] ����������������������������������������������������������������������������������������100 Analogue output ������������������������������������������������������4���20 mA; measuring range scaleable Max. load [Ω] �������������������������������������������������������������������������������������������������������������������500 Pulse value ���������������������������������������������������������������������������������������� 0�005���4 000 000 m³ Pulse length [s] ���������������������������������������������������������������������������������������min�...
  • Page 25: 12�1 Setting Ranges

    12.1 Setting ranges SP1 / SP2 rP1 / rP2 FLOW ∆Q Nl/min 6830 6800 5110 1710 6830 3�5 410�0 1�5 408�0 0�0 307�5 102�5 410�0 0�5 ImPS 0�005 Nm 4 000 000 Nm (∆Q = step increment) 13 Factory setting Factory setting User setting 80.0 78.0 0.005...
