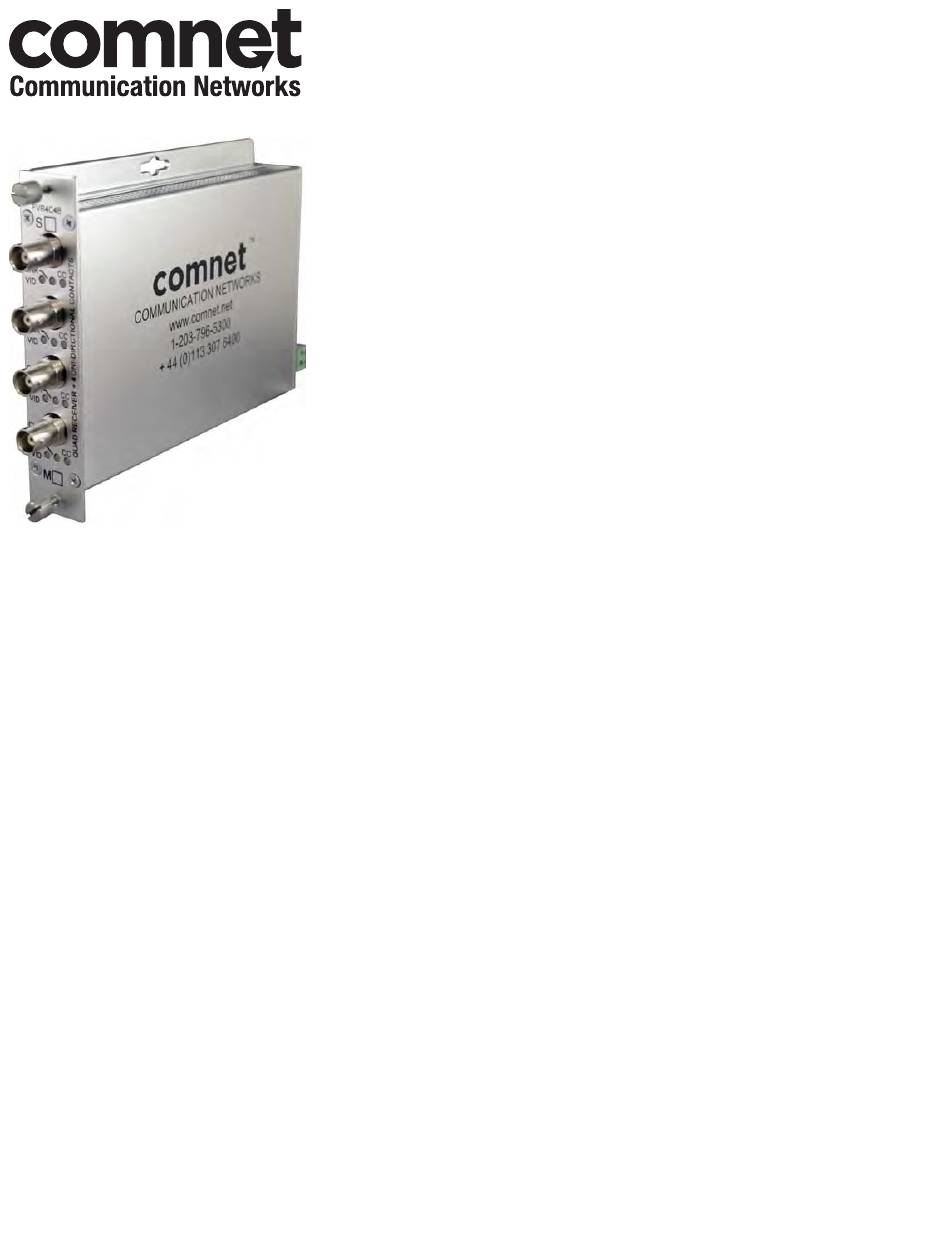

Comnet FVR4C4BM4 Installation And Operation Manual

4-channel 8-bit digitally encoded video receiver with 4 contact closures over 4 optical fibers

INSTALLATION AND OPERATION MANUAL

FVR4C4B(M,S)4

4-CHANNEL 8-BIT DIGITALLY ENCODED VIDEO RECEIVER

WITH 4 CONTACT CLOSURES OVER 4 OPTICAL FIBERS

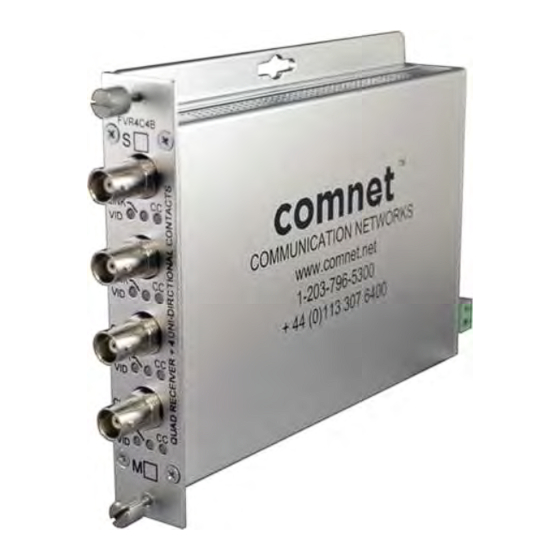

The FVR4C4B receives four channels of video and contact closure over four

optical fibers utilizing state-of-the-art 8-bit digital decoding for high-quality

video transmission. These units are completely transparent to and universally

compatible with any NTSC, PAL, or SECAM CCTV camera systems. Plug-and-

play design ensures ease of installation and no electrical or optical adjustments

are ever required.

Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining

equipment operating status. See Figure 4 on Page 3 for an explanation of LED

indicators.

These units may be either wall or rack-mounted, or may be DIN-rail mounted by

the addition of ComNet model DINBKT1 adaptor plate. See Figure A on Page 4

mounting instructions.

See Figures 1 – 3 for complete installation details.

INS_FVR4C4B_REV–

12/06/10

PAGE 1

Table of Contents

Need help?

Do you have a question about the FVR4C4BM4 and is the answer not in the manual?

Page 1 These units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate. See Figure A on Page 4 mounting instructions. See Figures 1 – 3 for complete installation details.
Page 2 INSTALLATION AND OPERATION MANUAL FVR4C4B(M,S)4 FIGURE 1 – FVR4C4B4 RECEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBERS BLACK (GND) BLACK WITH WHITE STRIPE (8 – 15VDC) FIGURE 3 – FVR4C4B4 RECEIVER FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FVR4C4B_REV–...
Page 3 INSTALLATION AND OPERATION MANUAL FVR4C4B(M,S)4 FIGURE 3 – LED INDICATORS LINK VIDEO CCOUT GREEN Communication link Video signal is present Contact Closed has been established over optical fiber Communication No video signal is – link has not been present established. Unit powered down.
Page 4 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVR4C4B_REV– 12/06/10 © 2011 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 4...
