Comnet FVT10C1M1/M Installation And Operation Manual

This manual serves the following
ComNet Model Numbers:
FVT10C1M1/M
FVT10C1S1/M
FVT10C1M1
FVT10C1S1
FVR10C1M1
FVR10C1S1
FVR20C2M2
FVR20C2S2
FVR40C4M4
FVR40C4S4
TECH SUPPORT: 1.888.678.9427
INSTALLATION AND OPERATION MANUAL
FVT/FVR10C1(M,S)1[/M],
FVR20C2(M,S)2 & FVR40C4(M,S)4
SINGLE, DUAL OR QUAD-CHANNEL 10-BIT DIGITALLY ENCODED
SHORT-HAUL VIDEO AND CONTACT CLOSURE

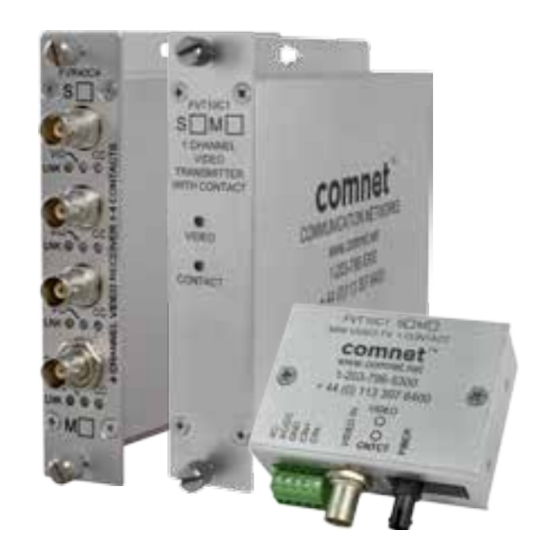

The ComNet series video transmitters and receivers support the transmission of one,
™
two, or four independent short-haul quality 10-bit digital video signals and one, two,
or four contact closures in the direction of the video over multimode or single mode
optical fibers. These modules are universally compatible with major CCTV camera
manufacturers. The receivers are compatible with the FVT1(M,S)1/M* series single
channel transmitters. Plug-and-play design ensures ease of installation and no electrical
or optical adjustments are ever required.
Bi-color (Red/Green) LED indicators are provided for rapidly confirming operating
status. Please see Figure 10 on Page 7 for LED explanations.
The FVT10C1(M,S)1/M units have a small footprint and are ideal for mounting where
space is limited or can be mounted inside equipment housing. The remaining ComFit
units may be either wall or rack-mounted. Please see Figures A and B on Page 8 for
mounting instructions.
* FVT1(M,S)1/M not available in North America.
INS_FVTFVR(1,2,4)0C(1,2,4)(M,S)(1,2,4)[M]_REV- Rev. 06.30.14 PAGE
1
