INSTALLATION AND OPERATION MANUAL
FVR10C1(M,S)1, FVR20C2(M,S)2 &
FVR40C4(M,S)4
SINGLE, DUAL OR QUAD-CHANNEL 10-BIT DIGITALLY ENCODED
SHORT-HAUL VIDEO AND CONTACT CLOSURE
The ComNet

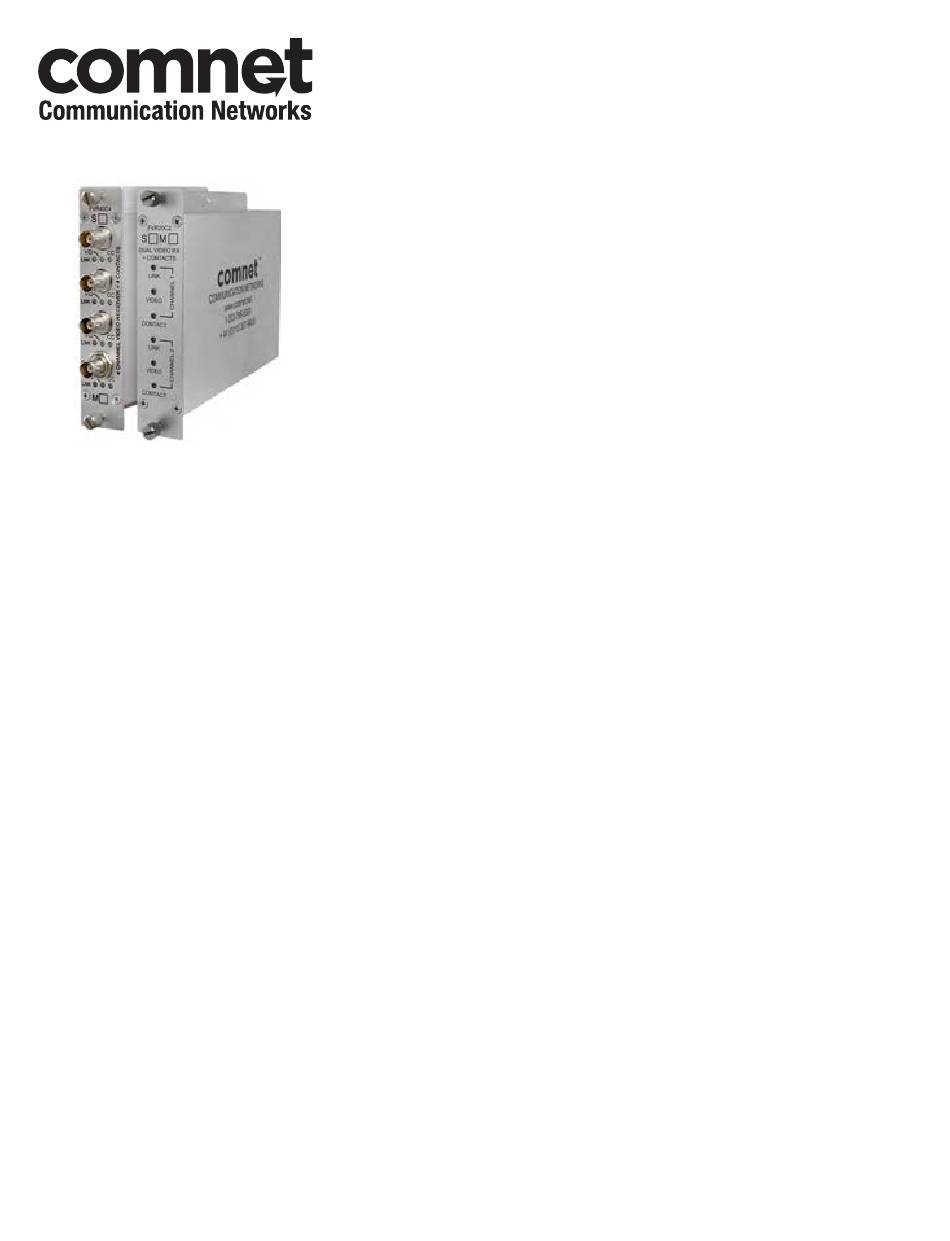

FVR10C1(M,S)1, FVR20C2(M,S)2, and FVR40C4(M,S)4 series video
™
receivers support the transmission of one, two, or four independent short-haul quality
10-bit digital video signals and one, two, or four contact closures in the direction of
the video over multimode or single mode optical fibers. This module is universally
compatible with major CCTV camera manufacturers. It is compatible with the
FVT1(M,S)1/M* and FVT10C1(M,S)1/M series single channel transmitters. Plug-and-play
design ensures ease of installation and no electrical or optical adjustments are ever
required.
Bi-color (Red/Green) LED indicators are provided for rapidly confirming operating
status. Please see Figure 7 on Page 5 for LED explanations.
These units may be either wall or rack-mounted. Please see Figure A on Page 5 for
mounting instructions.
* FVT1(M,S)1/M not available in North America.
TECH SUPPORT: 1.888.678.9427
INS_FVR(1,2,4)0C(1,2,4)(M,S)(1,2,4)_REV- Rev. 07.30.13 PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet FVR10C1M1
Summary of Contents for Comnet FVR10C1M1
- Page 1 FVR10C1(M,S)1, FVR20C2(M,S)2 & FVR40C4(M,S)4 SINGLE, DUAL OR QUAD-CHANNEL 10-BIT DIGITALLY ENCODED SHORT-HAUL VIDEO AND CONTACT CLOSURE The ComNet FVR10C1(M,S)1, FVR20C2(M,S)2, and FVR40C4(M,S)4 series video ™ receivers support the transmission of one, two, or four independent short-haul quality 10-bit digital video signals and one, two, or four contact closures in the direction of the video over multimode or single mode optical fibers.
- Page 2 INSTALLATION AND OPERATION MANUAL FVR10C1(M,S)1, FVR20C2(M,S)2 & FVR40C4(M,S)4 FIGURE 1 – FVR10C1 RECEIVER VIDEO SIGNAL OUT CONTACT OUT MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8 – 15VDC @ 2W Rack Mount: From Rack NOTE: Remove Electrical Connector for Rack Mount Units...
- Page 3 INSTALLATION AND OPERATION MANUAL FVR10C1(M,S)1, FVR20C2(M,S)2 & FVR40C4(M,S)4 FIGURE 3 – FVR20C2 RECEIVER VIDEO SIGNAL OUT CONTACT OUT MULTIMODE OR SINGLE MODE OPTICAL FIBER VIDEO SIGNAL OUT CONTACT OUT BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8 – 15VDC @ 2W Rack Mount: From Rack NOTE: Remove Electrical Connector for Rack...
- Page 4 INSTALLATION AND OPERATION MANUAL FVR10C1(M,S)1, FVR20C2(M,S)2 & FVR40C4(M,S)4 FIGURE 5 – FVR40C4 RECEIVER CH1 VIDEO SIGNAL OUT MULTIMODE CH2 VIDEO OR SINGLE SIGNAL OUT MODE OPTICAL FIBER CH3 VIDEO SIGNAL OUT CONTACT OUT CONTACT OUT CH4 VIDEO SIGNAL OUT BLACK BLACK W/ WHITE STRIPE Operating Voltage Range: 8 to 15VDC...
- Page 5 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2013 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. INS_FVR(1,2,4)0C(1,2,4)(M,S)(1,2,4)_REV- Rev. 07.30.13 PAGE 5...
