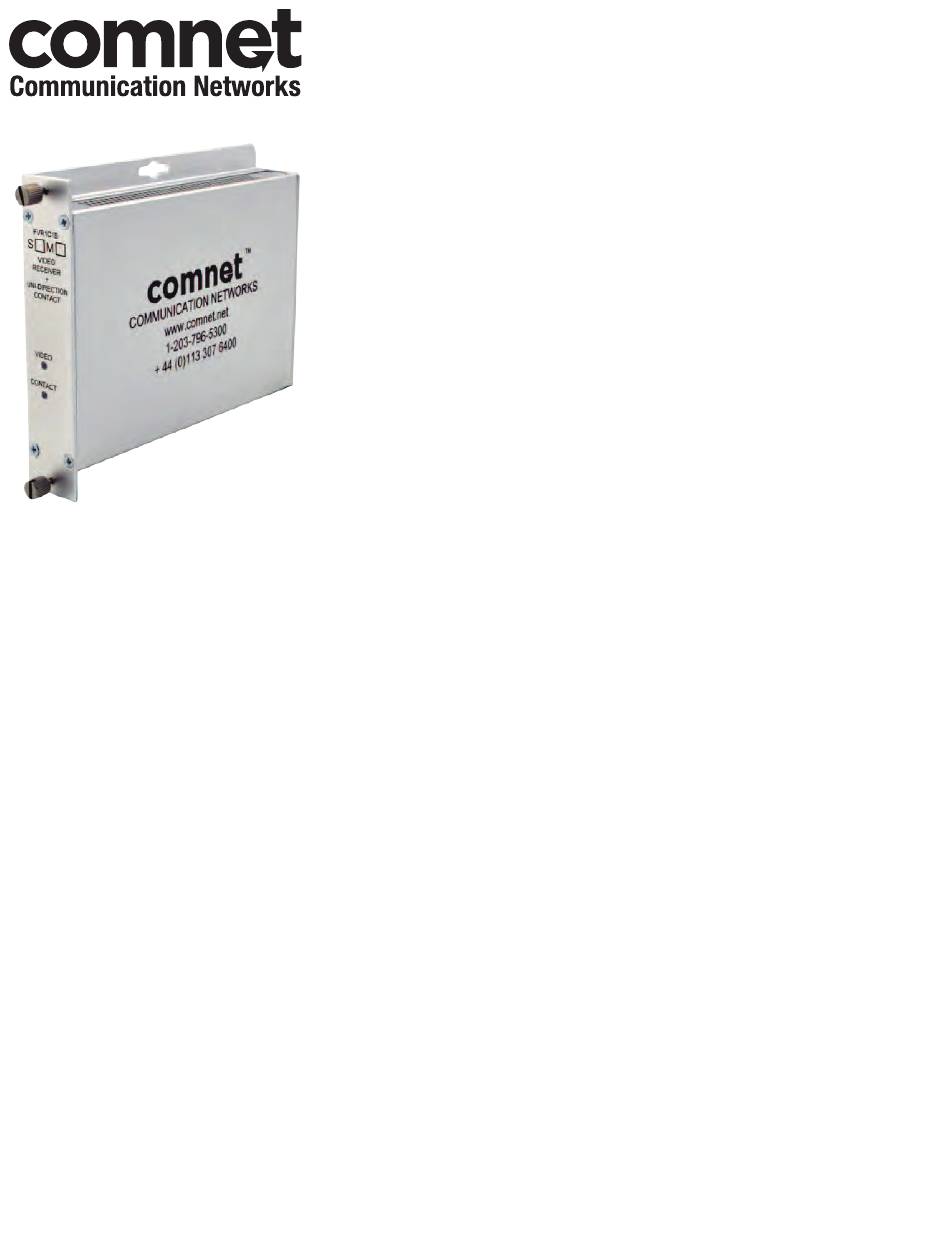

Comnet FVR1C1B Installation And Operation Manual

8-bit digitally encoded video receiver with contact closur

INSTALLATION AND OPERATION MANUAL

FVR1C1B(M,S)1

8-BIt dIGItAllY ENCOdEd VIdEO RECEIVER

wIth CONtACt ClOSuRE

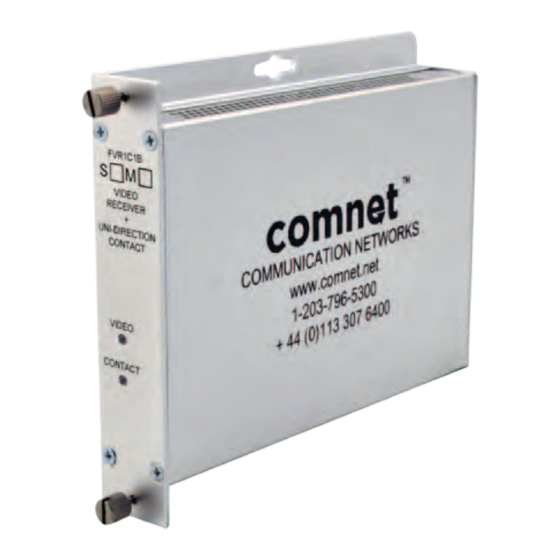

the FVR1C1B receives one channel of video and contact closure over optical

fiber utilizing state-of-the-art 8-bit digital decoding for high-quality video

transmission. these units are completely transparent to and universally

compatible with any NtSC, PAl, or SECAM CCtV camera systems. Plug-and-

play design ensures ease of installation and no electrical or optical adjustments

are ever required.

Bi-color (Red/Green) lEd indicators are provided for rapidly ascertaining

equipment operating status. See Figure 4 on Page 3 for an explanation of lEd

indicators.

these units may be either wall or rack-mounted, or may be dIN-rail mounted by

the addition of ComNet model dINBKt1 adaptor plate. See Figure A on Page 4

mounting instructions.

See Figures 1 – 3 for complete installation details.

INS_FVR1C1B_REV–

12/06/10

PAGE 1

Table of Contents

Need help?

Do you have a question about the FVR1C1B and is the answer not in the manual?

Page 1 ComNet model dINBKt1 adaptor plate. See Figure A on Page 4 mounting instructions. See Figures 1 – 3 for complete installation details.
Page 2 INSTALLATION AND OPERATION MANUAL FVR1C1B(M,S)1 FIGURE 1 – FVR1C1B1 RECEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBERS BLACK (GND) BLACK WITH WHITE STRIPE (8 – 15VDC) FIGURE 3 – FVR1C1B1 RECEIVER FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FVR1C1B_REV–...
Page 3 INSTALLATION AND OPERATION MANUAL FVR1C1B(M,S)1 FIGURE 3 – LED INDICATORS VIDEO CONTACT GREEN Video signal is present Contact Closed No video signal is – present – Contact Open FIGURE 4 – CONTACT SETTINGS Open Circuit ≤ 30 VDC Closed Current ≤ 500 mA...
Page 4 8 TURNBERRy PARk ROAD | GILDERSOME | MORLEy | LEEDS, Uk LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVR1C1B_REV– 12/06/10 © 2011 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet logo” are registered trademarks of Communication Networks, llC. PAGE 4...

Fvr1c1bm1Fvr1c1bs1
