INSTALLATION AND OPERATION MANUAL

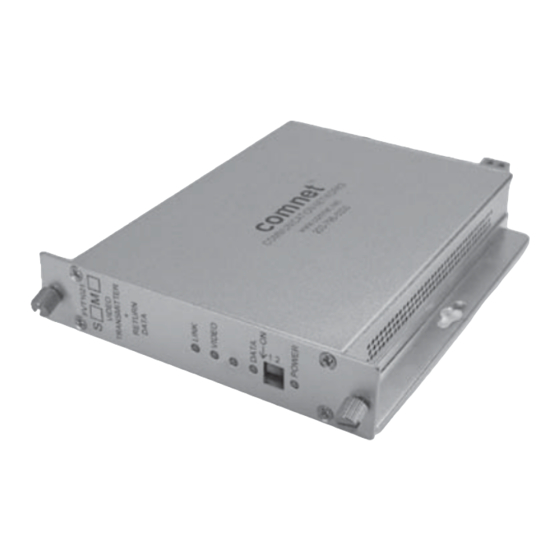

FVT/FVR1021(M)(S)1
10-bIT dIGITAl VIdEo wITh RETuRN dATA
The FVT/FVR1021 series video transmitter/receiver and data transceiver
supports the simultaneous transmission of short-haul quality 10-bit digital
video and return data over one multimode or single mode optical fiber. This
module is universally compatible with major CCTV camera manufacturers and
supports RS232 and RS422 data interfaces as well as up-the-coax data.
bi-color (Red/Green) lEd indicators are provided for rapidly ascertaining
equipment operating status. These units are interchangeable between stand-
alone or card mount configurations. See Figure A on Page 5 for mounting
instructions.
Figures 4 through 6 on Page 3 illustrates the specific data connections for
RS232, RS422, Manchester and bi-Phase data transmission.
Figure 7 on Page 4 describes the lEd indicators for each light on the unit.
INS_FVT/FVR1021_REV–
02/05/10
PAGE 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Comnet FVT10211
Summary of Contents for Comnet FVT10211
- Page 1 INSTALLATION AND OPERATION MANUAL FVT/FVR1021(M)(S)1 10-bIT dIGITAl VIdEo wITh RETuRN dATA The FVT/FVR1021 series video transmitter/receiver and data transceiver supports the simultaneous transmission of short-haul quality 10-bit digital video and return data over one multimode or single mode optical fiber. This module is universally compatible with major CCTV camera manufacturers and supports RS232 and RS422 data interfaces as well as up-the-coax data.
- Page 2 INSTALLATION AND OPERATION MANUAL FVT/FVR1021(M)(S)1 FIGURE 1 – FVT/FVR1021 TRANSMITTER AND RECEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPES Power Supply: Surface Mount: 9-12VDC @ 1A Rack Mount: From Rack FIGURE 2 – FVT1021 TRANSMITTER FIGURE 3 – FVR1021 RECEIVER FRONT PANEL REAR PANEL FRONT PANEL...
- Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR1021(M)(S)1 FIGURE 4 – DATA CHANNEL CONNECTIONS RS232 DATA OUT RS232 DATA IN RS422 DATA IN (–) RS422 DATA OUT (–) FVT1021 FVR1021 FIGURE 5 – SWITCH POSITIONS The mode for each data channel is configured using a pair of switches on the front panel of the unit. Switch RS232, RS422, Bi-Phase or...
- Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR1021(M)(S)1 FIGURE 7 – LED INDICATORS LINK VIDEO DATA IN (FVR1021) DATA OUT (FVT1021) POWER GREEN Communication link An active video signal An active data signal An active data signal unit powered up has been established is present on the bNC is present on the is present on the...
-
